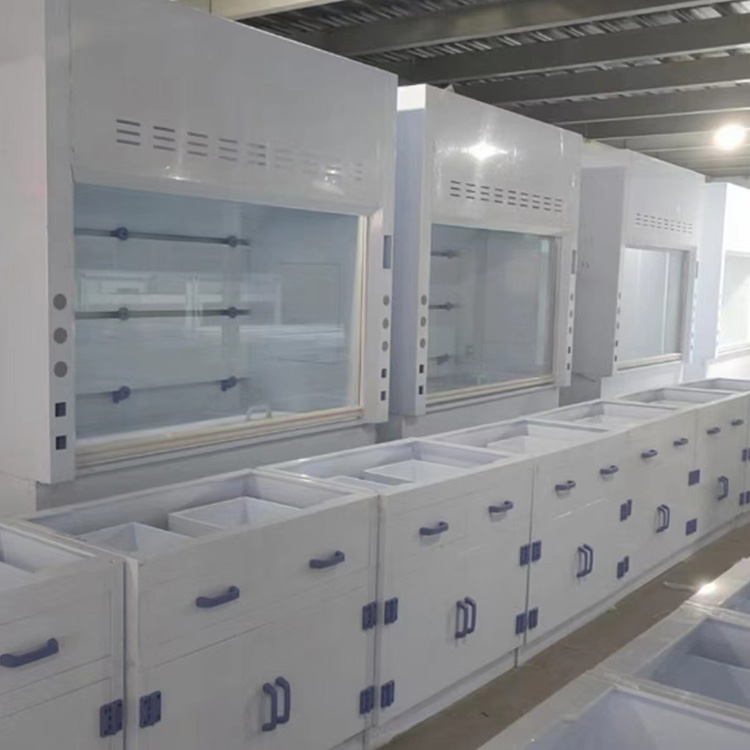

Product Description

1. Overall Material

Shelving unit:Made from 8mm acid and alkali-resistant PP material, the product is fully welded with color-matched, homogeneous welding wire. Offers excellent acid and alkali resistance.

Counter:Utilizing 8-15mm acid and alkali-resistant PP material, lined with "T-type structure," offering high strength, acid and alkali resistance, impact resistance, and easy cleaning.

Lower cabinet bodyUtilizing 8mm acid and alkali-resistant PP material, the corners are designed with "square tube structure" and "T" structure, which offers excellent load-bearing capacity.

2. Sliding door system

Guide Rails:Utilizing custom PVC material, with a wire contact design to minimize friction to a low degree.

Window HandleCrafted from custom PVC material, ergonomically designed for comfort, visually appealing, and easy to use.

Balancing weightPositioned inside the side panel maintenance holes for easy future maintenance.

Window:Independent suspension on both sides; prevents safety hazards caused by sudden collapse of sliding doors due to rope breakage. SeamlessLeft and right synchronizedDesign with a light touch, the door can be freely adjusted in height by sliding any corner with a single finger. Standard with 5mm tempered glass, offering good strength and safety. (Customizable with materials such as PVC, PMMA, etc.)

Pulley rope:SUS316L外包PVC

WheelPP Silent Wheel, Low Friction

Weighing blocksUtilizing PP shell and SUS304 basket clips for easy adjustment.

Adjustable feet:Internal adjustable design, with just one word, you can easily adjust inside the cabinet without having to lie under it. (Optional)

3. Electronic Components:

Lighting:Waterproof, dustproof, and shockproof lamp shades, Philips lamps, and four-way electronic rectifiers (low heat output, no flickering upon startup)

SocketLaboratory-Specific PP Corrosion-Resistant Splash Cover + Hydrawise Triple-Socket Multi-Function Outlet

Distribution Box1 identical PP housing, 1 contactor, 1 thermal relay, 1 miniature circuit breaker (all electrical components are of brand-name factory products, and we always place a high priority on safety issues)

Controller:Integrated control panel with LCD display function, providing visual control of various parameters for your convenience and peace of mind.

4. Other Accessories:

Door Handle:Acid and alkali-resistant PP material

Door hinge:Alkali and acid-resistant PP material

Gas Collection HoodAlkali and acid-resistant PP material, standard 250MM air outlet (air outlet size can be customized as required)

Flow Diverting ClipAlkali and acid-resistant PP material
