Small steam generators, meeting the needs of a wide range of small processing factories, steam rooms, jewelry shops, food processing plants, hot pot restaurants, and more!

1. Integrated combustion configuration system

The steam boiler and burner are designed as a whole, optimizing the combustion system's ratio, incorporating advanced through-flow design concepts, resulting in higher thermal efficiency.

2. Advanced fully automatic LCD display control box

Equipped with full automatic microcomputer program control, featuring intelligent controls such as automatic pressure control, flame detection, water shortage protection, automatic alarm, and overheating protection. With a simple one-button operation, it effortlessly transitions to full automatic mode. The LCD display control panel allows for clear and intuitive monitoring of the boiler's operation, making it user-friendly. All safety protection devices are activated, ensuring the operator's peace of mind without the need for constant supervision.

3. Scientific structural design

Equipped with multiple interlocked protection devices such as safety valves, pressure controllers, water level control protectors, and overheating protectors, it offers a relatively safe and reliable operation. The finned-tube water passage firebox structure effectively compensates for thermal expansion, preventing the generation of thermal expansion and contraction stress, ensuring the safety and reliability of the boiler structure, and extending its service life.

4. High-quality and Fast Steam

The unique design of the small water capacity, large steam chamber allows for quicker steam generation. It features an internal steam-water separator to ensure high dryness and high-quality steam.

5. The inner tank water capacity is less than 30L, which falls under the non-licensing scope for boilers. This allows for a simple installation and use upon arrival, eliminating the complicated process of obtaining a boiler operation license.

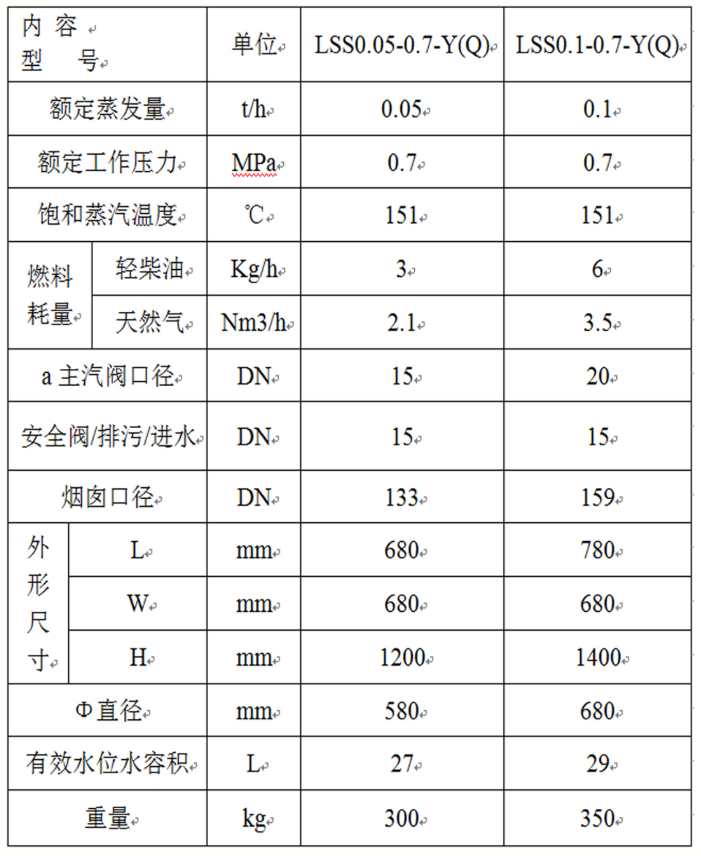

Technology Parameter
