Model: JPX-8X2000
This series of production line is used to convert different specifications of hot-rolled medium and thick plates (3mm-25mm) into flat sheets of required length through uncoiling, leveling, and cutting.

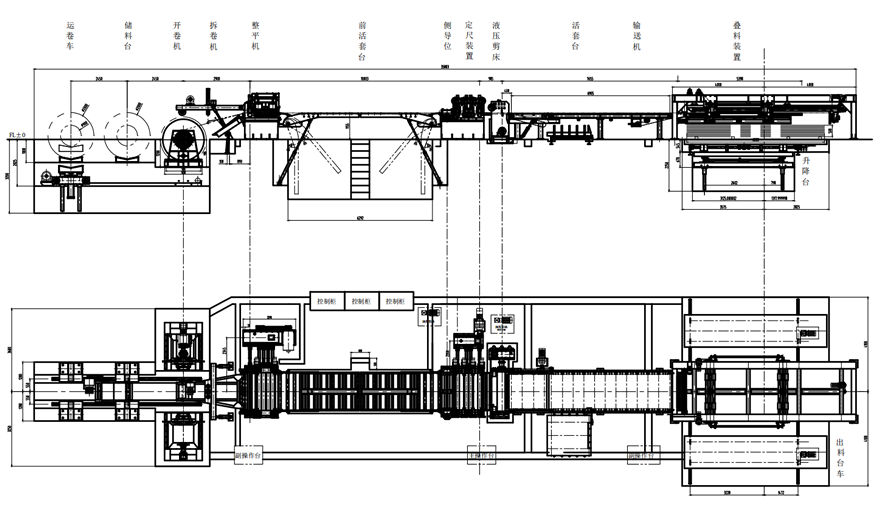

This production line is primarily composed of material feeding trolleys, double-top uncoiling machines, hydraulic bucket head pressing and pulling mechanisms, initial straightening machines, fine straightening machines, shearing machines, material stacking racks, matching electrical control systems, and hydraulic systems. Additionally, swing-type intermediate plates and deviation correction devices are provided between the machines.
Medium-thickness plate horizontal shearing unit model and technical parameters
Model | JPX-8X1600 | JPX-10x2000 | JPX-12X2000 | JPX-14X2200 | JPX-25X2500 |
Material | Cold rolled, hot rolled, stainless steel coil, galvanized coil, color coated coil, aluminum coil, pickled coil, copper coil | ||||
Thickness | 3-8 mm | 3-10 mm | 4-12mm | 6-14 mm | 12-25mm |
Width | 600-1600 | 600-2000 | 600-2000 | 800-2200 | 800-2500 |
Roll Weight | 20T/25T | 25T/30T | 25T/30T | 25T/30T/35T | 35T/40T |
Line speed | 0~25m/min | 0~25m/min | 0~25m/min | 0~25m/min | 0~20m/min |
Quantity of leveling rollers | 13Roller | 11Roller | 11Roller | 11Roller | 9Roller |
Cut Length Accuracy | ±1mm | ±1mm | ±1mm | ±1mm | ±1mm |
Reference (Customizable as per customer requirements)
