Model: JPX-3X1600
The stainless steel automatic leveling and cross-cutting machine uses a 6-roll design with trimming equipment. This series of production line is used to convert various specifications of thin coil materials into flat sheets of the desired length through uncoiling, leveling, and shearing.
The production line is primarily composed of feeding trolleys, uncoiling machines, hydraulic bucket head pressing and pulling mechanisms, initial straightening machines, trimming machines, edge wire machines, precision straightening machines, shearing machines, material stacking racks, matching electrical controls, and hydraulic systems, achieving high-speed and high-precision shearing throughout the entire line.
Sheet Metal Horizontal Cutting Line Model and Technical Parameters
Model | JPX-2X750 | JPX-2x1250 | JPX-3X1600 | JPX-4X1600 | JPX-4X2000 |
Material | Cold rolled, hot rolled, stainless steel coils, galvanized coils, color coated coils, aluminum coils, pickled coils, copper coils | ||||
Thickness | 0.2-2 mm | 0.2-2 mm | 0.3-3mm | 0.5-4 mm | 0.5-4mm |
Width | 200-750 | 500-1250 | 500-1600 | 500-1600 | 600-2000 |
Roll weight | 10T/15T | 10T/15T | 15T/20T | 20T/25T | 20T/25T/30T |
Line speed | 0~80m/min | 0~80m/min | 0~80m/min | 0~60m/min | 0~60m/min |
Number of leveling rollers | 21Roller | 21Roller | 19Roller | 17Roller | 17Roller |
Leveling machine design | 4Heavy Roll/6 Heavy Rolls | 4Heavy Roller/6 Heavy Rollers | 4Heavy Roll/6 Heavy Rolls | 4Heavy Roller/6 Rollers | 4Heavy Roll/6 Heavy Rolls |
Cut Length Accuracy | ±0.5mm | ±0.5mm | ±0.5mm | ±0.5mm | ±0.5mm |
The above parameters are for reference only (can be customized according to customer requirements)

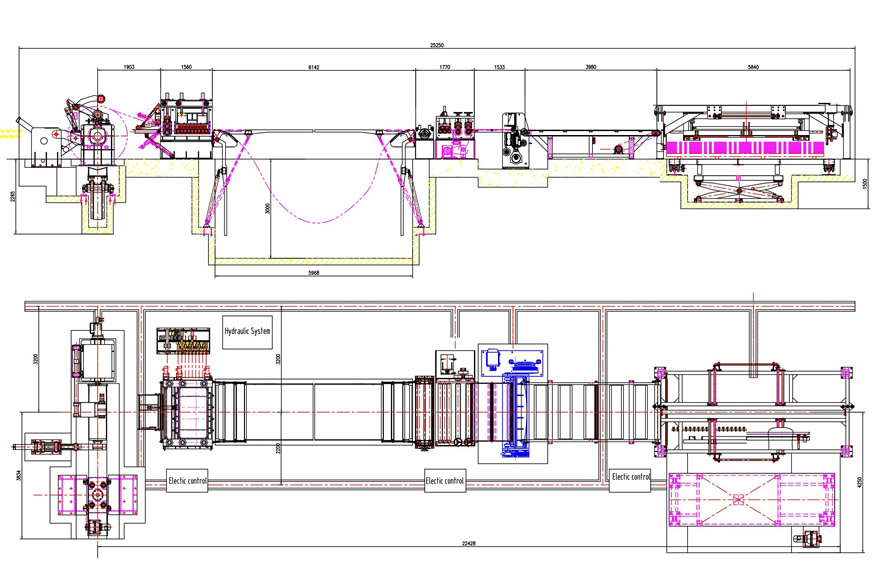

Production Line Layout Diagram
