Model: ZJX-3X1600
ZJX-3X1600Dual-head longitudinal slitting machine, mainlyUsed for cutting metal coils, such as cold and hot rolled steel, stainless steel, copper, aluminum, galvanized, color coated, etc., the production line is mainly used by steel processing factories, rolling steel factories, electrical industries, automotive, stamping parts, etc.Fully Automatic High-Speed Longitudinal Shearing LineComposed of uncoiling, material positioning, longitudinal cutting, and winding, this is an all-in-one, high-speed, high-capacity longitudinal cutting line.
This line utilizes two longitudinal cutting main units, saving knife changeover time.
Custom production according to the actual requirements of the customer.
Model and Technical Specifications
Model | ZJX-3X650 | ZJX-2x1250 | ZJX3X1600 | ZJX-4X1600 | ZJX-6X1600 |
Material | Cold rolled, hot rolled, stainless steel coils, galvanized coils, color coated coils, aluminum coils, pickled coils, copper coils | ||||
Thickness | 0.3-3 mm | 0.2-2 mm | 0.3-3 mm | 0.5-4 mm | 0.5-6mm |
Width | 150-650 | 500-1250 | 500-1250 | 500-1250 | 500-1250 |
Roll Weight | 5T/10T | 10T/15T | 15T/20T | 15T/20T/25T | 20T/25T |
Line speed | 100/120m/min | 120/150m/min | 120/150m/min | 100/120m/min | 60/80/100m/min |
Number of shear strips | 6-15Thread | 6-20Thread | 6-25Stripe | 6-30Thread | 6-30Line |
Cutting Accuracy | ±0.05mm | ±0.05mm | ±0.05mm | ±0.1mm | ±0.1mm |

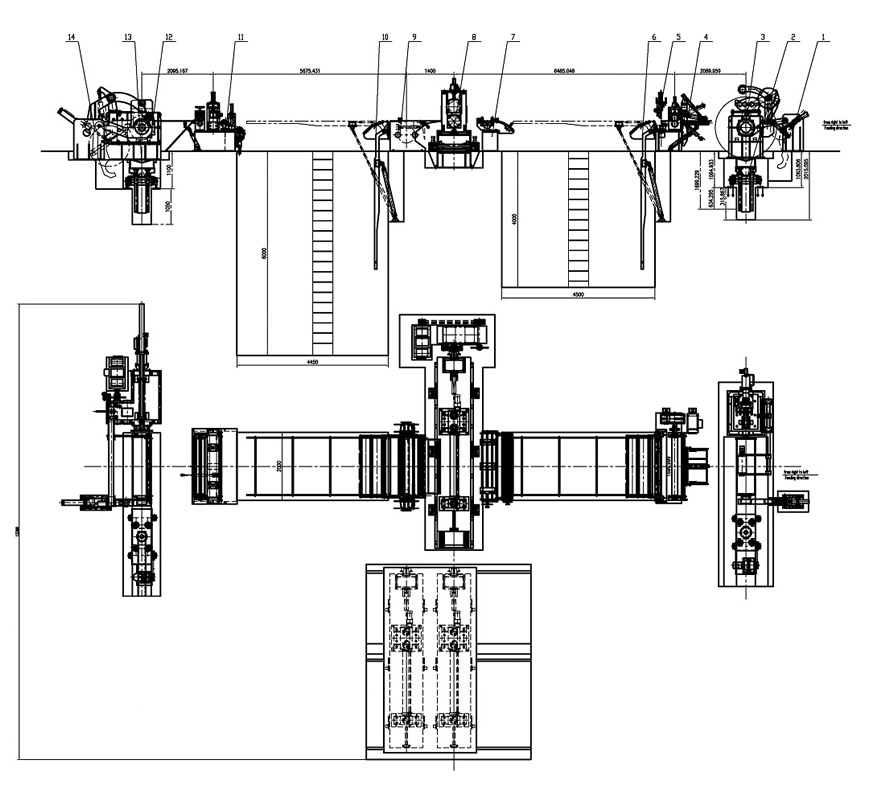

Production line layout (right material entry)
From right to left: Loading Cart + Hydraulic Uncoiler ------ Breakout Clamp + Head Trim Clip ------ Loop 1 ------ Left and Right Guides ------ Dual-Station Longitudinal Slitting Machine + Edge Wire Machine ------ Loop 2 ------ Tension Station ------ Rewinding Machine + Unloading Cart
