Model: JPX-2X1250
This series production line is used to convert various specifications of thin material coils into flat sheets of the required length through unwinding, leveling, and cutting.

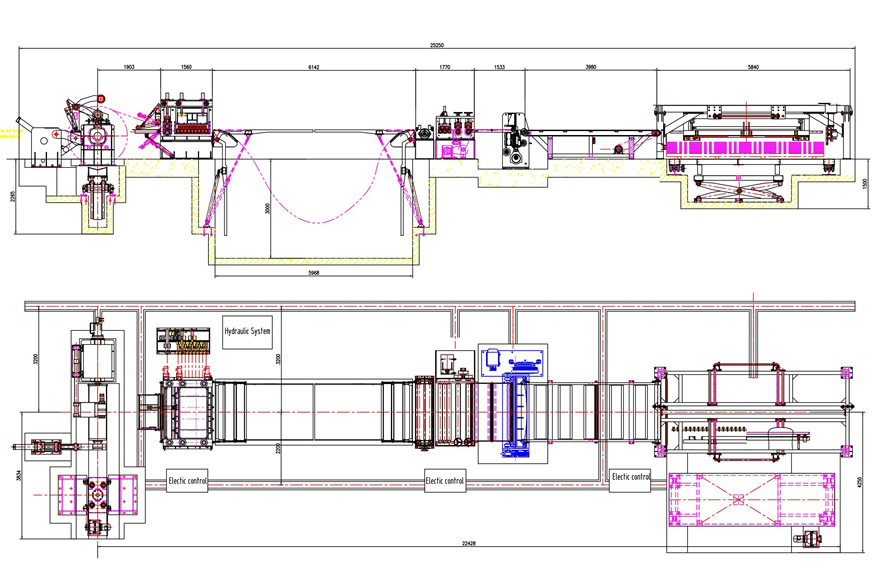

The production line is primarily composed of material feeding trolleys, hydraulic cantilever uncoiling machines, hydraulic bucket head pressing and pulling mechanisms, initial straightening machines, precision straightening machines, shearing machines, automatic stacking racks, matching electrical controls, and hydraulic systems. It achieves high precision and high output capacity throughout the entire line.
Sheet Metal Horizontal Cutting Line Model and Technical Parameters
Model | JPX-2X750 | JPX-2x1250 | JPX-3X1600 | JPX-4X1600 | JPX-4X2000 |
Material | Cold rolled, hot rolled, stainless steel coils, galvanized coils, color coated coils, aluminum coils, pickled coils, copper coils | ||||
Thickness | 0.2-2 mm | 0.2-2 mm | 0.3-3mm | 0.5-4 mm | 0.5-4mm |
Width | 200-750 | 500-1250 | 500-1600 | 500-1600 | 600-2000 |
Roll Weight | 10T/15T | 10T/15T | 15T/20T | 20T/25T | 20T/25T/30T |
Line speed | 0~80m/min | 0~80m/min | 0~80m/min | 0~60m/min | 0~60m/min |
Number of leveling rolls | 21Roller | 21Roller | 19Roller | 17Roller | 17Roll |
Grader design | 4Heavy Roller/6 Rollers | 4Heavy Roller/6 Rollers | 4Heavy Roll/6 Heavy Rolls | 4Heavy Roll/6-roller | 4Heavy Roll/6 Heavy Rolls |
Cut Length Accuracy | ±0.5mm | ±0.5mm | ±0.5mm | ±0.5mm | ±0.5mm |
The above parameters are for reference only (can be customized according to customer requirements)
