Model: ZJX-6X1600
ZJX-6X1600Automatic longitudinal shearing line, mainlyUsed for metal coil cutting, such as cold and hot rolled steel, stainless steel, copper, aluminum, galvanized, color coated steel, etc., the production line is mainly used by steel processing factories, rolling steel factories, electrical industry, automotive, stamping parts, etc.Fully Automatic High-Speed Longitudinal Shearing LineComposed of operations such as opening rolls, material positioning, longitudinal cutting, and winding (reeling), this is a fully automatic, high-speed, high-capacity longitudinal cutting line.
Model and Technical Specifications
Model | ZJX-3X650 | ZJX-2x1250 | ZJX3X1600 | ZJX-4X1600 | ZJX-6X1600 |
Material | Cold rolled, hot rolled, stainless steel coils, galvanized coils, color coated coils, aluminum coils, pickled coils, copper coils | ||||
Thickness | 0.3-3 mm | 0.2-2 mm | 0.3-3 mm | 0.5-4 mm | 0.5-6mm |
Width | 150-650 | 500-1250 | 500-1250 | 500-1250 | 500-1250 |
Roll weight | 5T/10T | 10T/15T | 15T/20T | 15T/20T/25T | 20T/25T |
Line Speed | 100/120m/min | 120/150m/min | 120/150m/min | 100/120m/min | 60/80/100m/min |
Number of Shear Strips | 6-15Line | 6-20Stripe | 6-25Stripe | 6-30Thread | 6-30Line |
Cutting Accuracy | ±0.05mm | ±0.05mm | ±0.05mm | ±0.1mm | ±0.1mm |

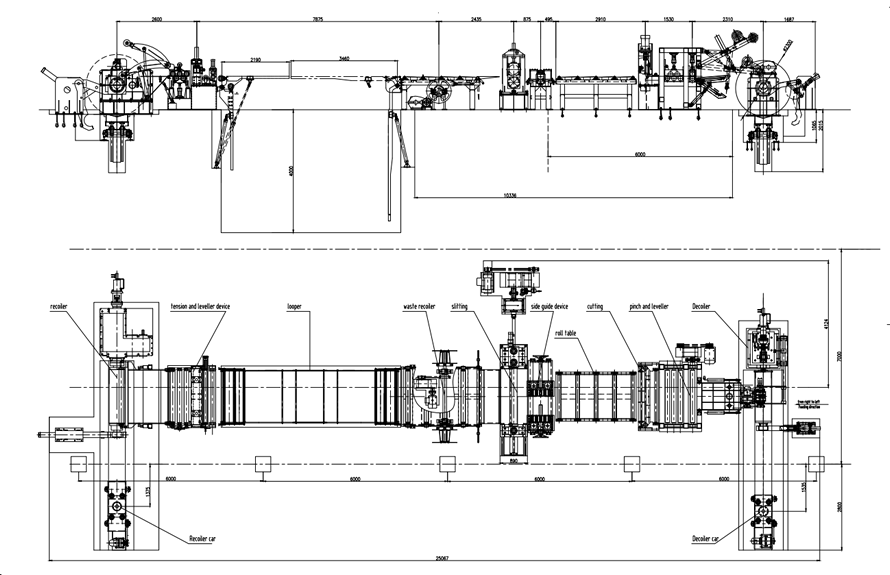

Production line layout reference (right feeding)
From right to left: Top-loading cart + double-top uncoiler ---- Tension removal and initial straightening unit + head-cutting shears ---- Transition platform ---- Left and right guides ---- Double-position longitudinal slitting machine + edge-winding machine ---- Looping device ---- Tension station ---- Coiler + unloading cart
