Model: ZJX-3X1600
ZJX-3X1600Automatic high-speed longitudinal cutting machine, mainlyUsed for metal coil cutting, such as cold and hot rolled steel strips, stainless steel, copper, aluminum, galvanized, color coated steel, etc. The production line is mainly used by steel processing plants, rolling steel plants, electrical industries, automotive industries, stamping parts, and more.Fully Automatic High-Speed Longitudinal Shearing LineComprised of operations such as opening rolls, material positioning, strip cutting, and winding (rewinding), this is a fully automatic, high-speed, high-capacity longitudinal cutting line.
Model and Technical Specifications
Model | ZJX-3X650 | ZJX-2x1250 | ZJX3X1600 | ZJX-4X1600 | ZJX-6X1600 |
Material | Cold rolled, hot rolled, stainless steel coils, galvanized coils, color coated coils, aluminum coils, pickled coils, copper coils | ||||
Thickness | 0.3-3 mm | 0.2-2 mm | 0.3-3 mm | 0.5-4 mm | 0.5-6mm |
Width | 150-650 | 500-1250 | 500-1250 | 500-1250 | 500-1250 |
Roll Weight | 5T/10T | 10T/15T | 15T/20T | 15T/20T/25T | 20T/25T |
Line speed | 100/120m/min | 120/150m/min | 120/150m/min | 100/120m/min | 60/80/100m/min |
Number of Shears | 6-15Thread | 6-20Thread | 6-25Thread | 6-30Line | 6-30Stripe |
Cutting Precision | ±0.05mm | ±0.05mm | ±0.05mm | ±0.1mm | ±0.1mm |

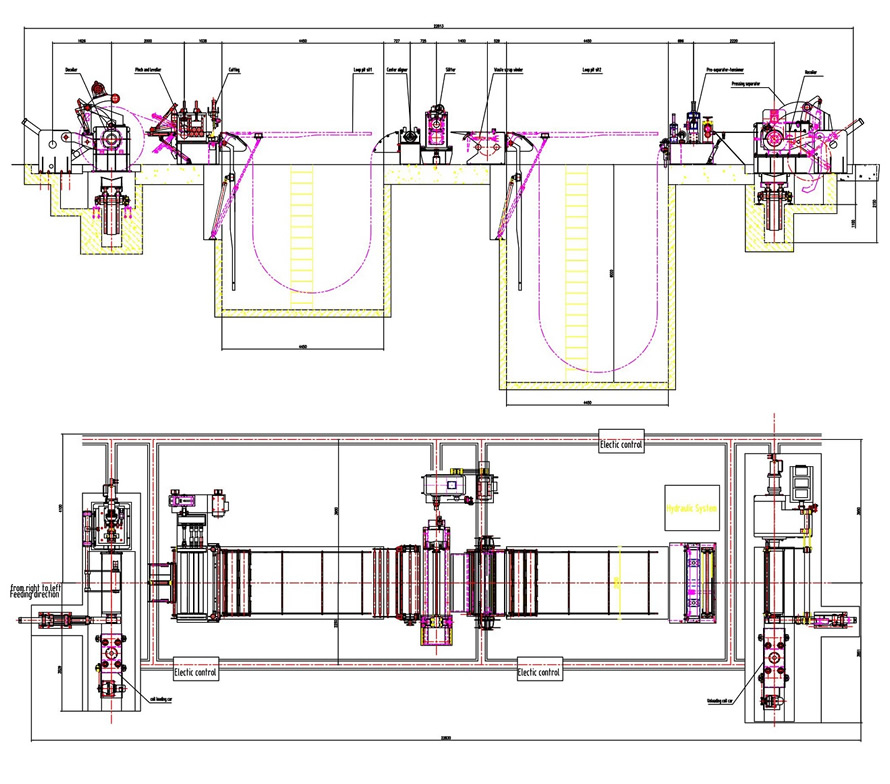

Production line layout reference (left for raw material intake)
From left to right: Feeding Cart + Hydraulic Uncoiler ------ Tension Clamp Removal + Head Cutting Shear ----- Loop 1 ----- Left and Right Guides ---- Longitudinal Cutting Main Machine + Edge Stripper ---- Loop 2 ---- Tension Station ---- Rewinding Machine + Unloading Cart
