Model: ZJX-2X1600
ZJX-2X1600Automatic high-speed longitudinal slitting machine, mainlyUsed for metal coil cutting, such as cold and hot rolled steel strips, stainless steel, copper, aluminum, galvanized, color coated, etc., the production line is mainly used by steel processing plants, rolling steel plants, electrical industry, automotive, stamping parts, etc.Fully Automatic High-Speed Longitudinal Shearing LineComposed of unrolling (uncoiling), material positioning, strip cutting, and winding (reeling) processes, an all-in-one, high-speed, high-capacity longitudinal cutting line.
Model and Technical Specifications
Model | ZJX-3X650 | ZJX-2x1250 | ZJX3X1600 | ZJX-4X1600 | ZJX-6X1600 |
Material | Cold rolled, hot rolled, stainless steel coil, galvanized coil, colored coated coil, aluminum coil, pickled coil, copper coil | ||||
Thickness | 0.3-3 mm | 0.2-2 mm | 0.3-3 mm | 0.5-4 mm | 0.5-6mm |
Width | 150-650 | 500-1250 | 500-1250 | 500-1250 | 500-1250 |
Roll Weight | 5T/10T | 10T/15T | 15T/20T | 15T/20T/25T | 20T/25T |
Line Speed | 100/120m/min | 120/150m/min | 120/150m/min | 100/120m/min | 60/80/100m/min |
Number of Shears | 6-15Thread | 6-20Thread | 6-25Line | 6-30Line | 6-30Strip |
Cutting Precision | ±0.05mm | ±0.05mm | ±0.05mm | ±0.1mm | ±0.1mm |

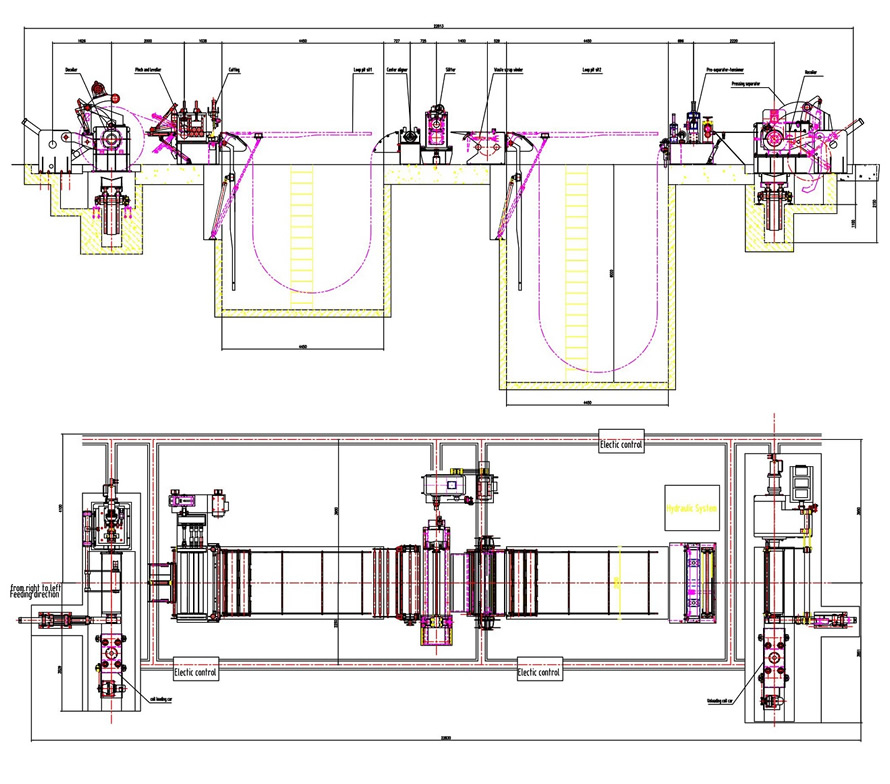

Production line layout reference (left for raw material intake)
Left to right: feeding trolley + hydraulic uncoiler ---- clip removal + head trimming shear ---- loop 1 ---- left and right guides ---- longitudinal slitter + edge trimming machine ---- loop 2 ---- tension station ---- winding machine + unloading trolley
