Model: ZJX-2X750
ZJX-2X750Slitting line equipment, mainlyUsed for metal coil cutting, such as cold and hot rolled steel, stainless steel, copper, aluminum, galvanized, color coated, etc. The production line is mainly used by steel processing factories, rolling steel factories, electrical industries, automotive, stamping parts, etc., and consists of uncoiling (unrolling), strip cutting, and winding (rewinding). Low to medium-speed capacity longitudinal cutting lines are mainly suitable for customers with low annual production requirements.
Engine Model and Technical Specifications
Model | ZJX-1.5X600 | ZJX-2x1250 | ZJX3X1250 | ZJX-4X1250 |
Material | Cold rolled, hot rolled, stainless steel coils, galvanized coils, color coated coils, aluminum coils, pickled coils, copper coils | |||
Thickness | 0.2-1.5 mm | 0.2-2 mm | 0.3-3 mm | 0.5-4 mm |
Width | 150-600 | 500-1250 | 500-1250 | 500-1250 |
Roll Weight | 5T/10T | 10T | 10T/15T | 10T/15T |
Line speed | 0-40m/min | 0-40m/min | 0-40m/min | 0-40m/min |
Number of Shears | 6-15Thread | 6-20Thread | 5-20Line | 5-20Thread |
Cutting Accuracy | ±0.05mm | ±0.05mm | ±0.05mm | ±0.1mm |

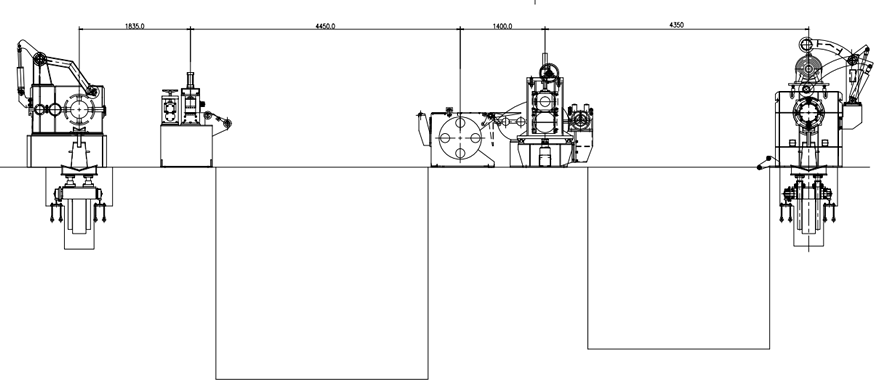

Production line layout (right material entry)
From right to left: material feeding cart + hydraulic uncoiler --- left and right guide positions --- longitudinal slitting machine --- edge trimming machine --- tension station --- winding machine + unloading cart
