Model: JPX-3X1600
The series of production lines is designed for opening, leveling, and cutting aluminum coils into flat sheets of required length.
This production line is mainly composed of material feeding trolleys, hydraulic uncoiling machines, hydraulic铲头pressing and guiding mechanisms, six-roll precision leveling machines, servo tracking shearing machines, stacking racks, matched electrical control systems, and hydraulic systems, achieving continuous shearing of the entire machine.
Automatic leveling and slitting machine model and technical parameters
Model | JPX-2X750 | JPX-2x1250 | JPX-3X1600 | JPX-4X1600 | JPX-4X2000 |
Material | Cold rolled, hot rolled, stainless steel coils, galvanized coils, color coated coils, aluminum coils, pickled coils, copper coils | ||||
Thickness | 0.2-2 mm | 0.2-2 mm | 0.3-3mm | 0.5-4 mm | 0.5-4mm |
Width | 200-750 | 500-1250 | 500-1600 | 500-1600 | 600-2000 |
Roll Weight | 10T/15T | 10T/15T | 15T/20T | 20T/25T | 20T/25T/30T |
Line speed | 0~80m/min | 0~80m/min | 0~80m/min | 0~60m/min | 0~60m/min |
Number of leveling rollers | 21Roller | 21Roller | 19Roller | 17Roller | 17Roller |
Leveling machine design | 4Heavy Roll/6 Heavy Rolls | 4Heavy Roller/6 Rollers | 4Heavy Roller/6 Rollers | 4Heavy Roll/6 Roll | 4Heavy Roller/6 Rollers |
Cut Length Accuracy | ±0.5mm | ±0.5mm | ±0.5mm | ±0.5mm | ±0.5mm |
The above parameters are for reference only (can be customized according to customer requirements)

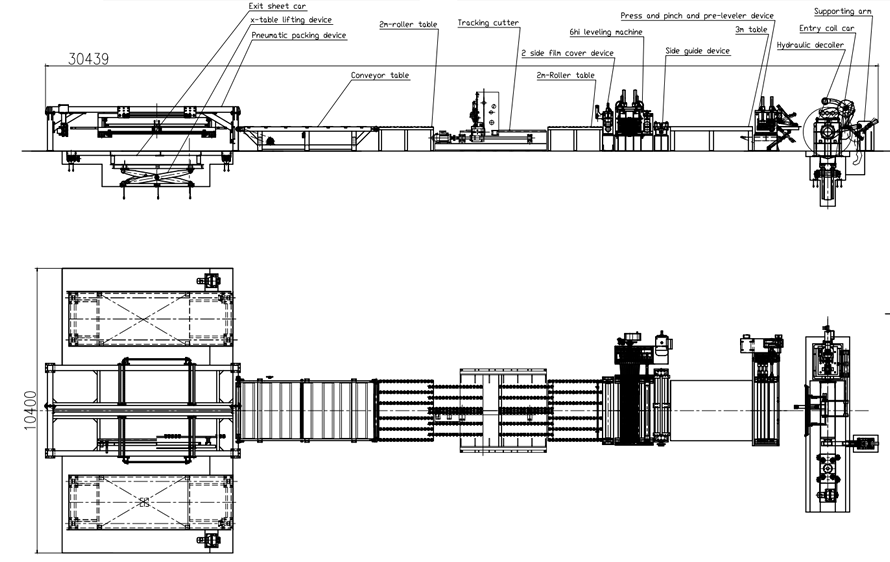

Production line layout diagram
