Model: ZJX-10X1600
ZJX-10X1600Longitudinal cutting line, a type of longitudinal cutting unit for medium and thick plates, mainlyUsed for cutting metal coils, such as cold and hot rolled steel strips, stainless steel, copper, aluminum, galvanized, color coated steel, etc. The production line is mainly used by steel processing factories, rolling steel factories, electrical industries, automotive, stamping parts, etc., and consists of uncoiling (unrolling), material guiding and positioning, longitudinal slitting, and coiling (rewinding).
Available for customization to meet customer requirements.
Model and Technical Specifications
Model | ZJX-6X650 | ZJX-6X1600 | ZJX-8x2000 | ZJX10X2000 | ZJX-12X2000 |
Material | Cold rolled, hot rolled, stainless steel coils, galvanized coils, color coated coils, aluminum coils, pickled coils, copper coils | ||||
Thickness | 1-6 mm | 0.3-3 mm | 0.2-2 mm | 0.3-3 mm | 0.5-4 mm |
Width | 150-650 | 150-650 | 500-1250 | 500-1250 | 500-1250 |
Roll Weight | 5T/10T | 20T/25T/30T | 20T/25T/30T | 20T/25T/30T | 20T/25T/30T |
Linear velocity | 0-40m/min | 0-40m/min | 0-40m/min | 0-40m/min | 0-40m/min |
Number of Shearing Lines | 6-25Thread | 6-25Line | 5-20Thread | 5-20Thread | 5-20Stripe |
Cutting Accuracy | ±0.1mm | ±0.1mm | ±0.1mm | ±0.1mm | ±0.1mm |

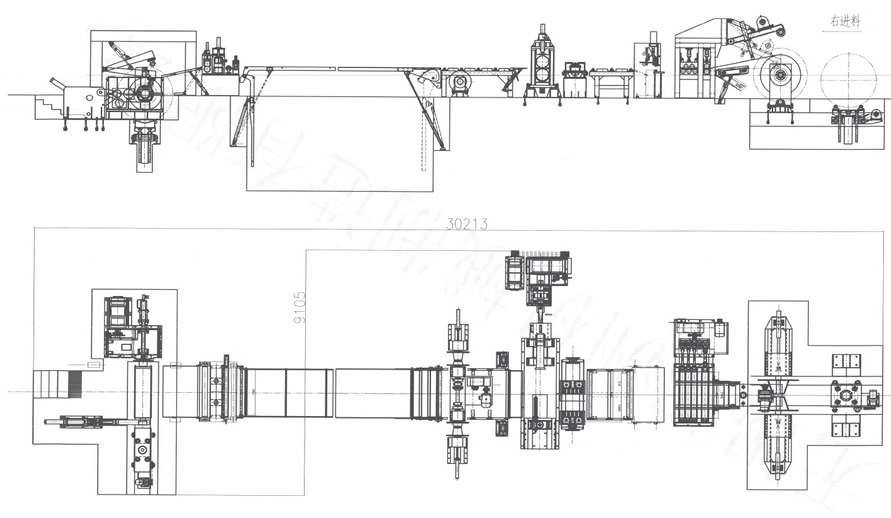

Production line layout reference (right feed)
From right to left: Feeding Cart + Double-Top Uncoiler ---- Tension Clamp Delivery + Head Cutting Shear ---- Transition Platform ---- Left and Right Guides ---- Longitudinal Shearing Machine + Edge Wire Machine ----活套 ---- Tension Station ---- Coiler + Unloading Cart
