Quick connector sets with ball valves, integrated with鹤管, are the core quick-connection control components for medium transmission in oil and chemical handling operations. Designed for rapid mating and disconnection of鹤管 with tank trucks or process pipelines, the ball valve ensures precise control over pipeline shutdown, while the quick connector facilitates drip-free insertion and removal. The integrated design offers easy operation, tight sealing, and controllable shutdowns, widely suitable for bottom loading鹤管, bottom loading skids, and low-temperature鹤管 equipment. It is a key accessory for sealed bottom loading on tank trucks and can also be used for rapid connection between鹤管 and process pipelines in storage areas.

This assembly features an industrial-standardized integrated design, with ball valves directly welded to quick connectors or flanged connections, eliminating additional pipeline losses. It is available in standard temperature, low temperature, and corrosion-resistant models, core-compatible with鹤管 low-level / deep freeze / strong corrosion handling conditions, meeting the petrochemical industry's requirements for leak-free, quick operations.

Core Structure and Integration Features

The overall design features a ball valve and quick connector integrated rigid connection, with no loose gaps. The direct flow channel design reduces medium resistance. Core components perform their respective functions and work in synergy, offering a compact structure suitable for the narrow installation space of crane pipes.

Core Control Component - Specialized Ball Valve

　　Single-piece/two-piece forged steel ball valve (three-piece for high-pressure conditions), with a splash-proof stem design, a full-bore core, and a non-restricted flow path, suitable for large flow loading and unloading.

Operation Methods: Manual handle (standard), pneumatic/electric actuator (upgraded version), handle with positioning and self-locking, allowing precise control of on/off angles; pneumatic/electric models can be connected to interlock systems for remote switching.

Sealed Structure: Valve seat features PTFE/fluorinated rubber sealing, nominal bore matches quick connector, ensuring full flow path sealing with no medium residue.

Core Connecting Parts - Industrial Quick Couplings

Mainly using dry quick couplings (preferred for crane pipe loading and unloading, leak-free), also available with lever-style quick couplings for temporary connections in process piping. The dry version features automatic valve core interlock during insertion and removal, achieving flow interruption during operation, with no medium leakage.

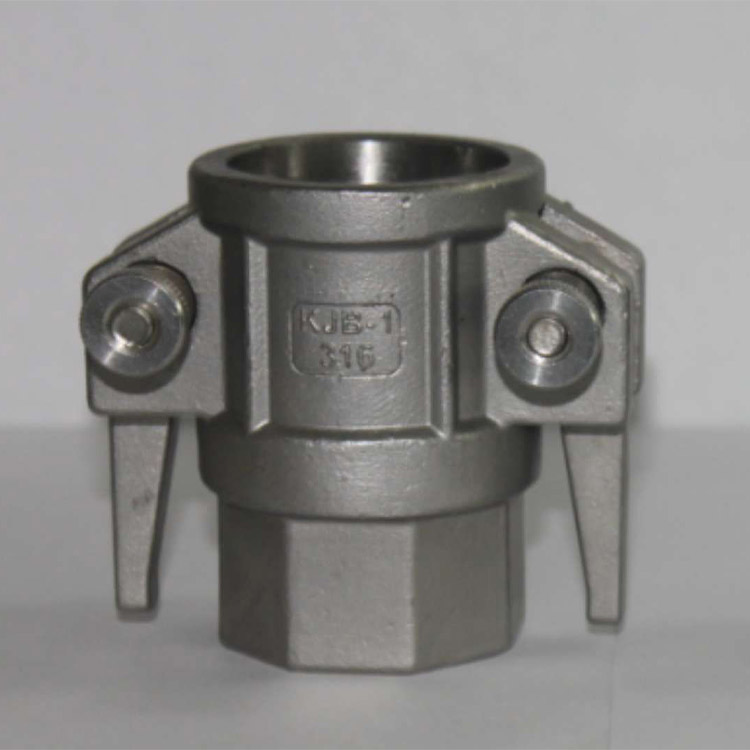

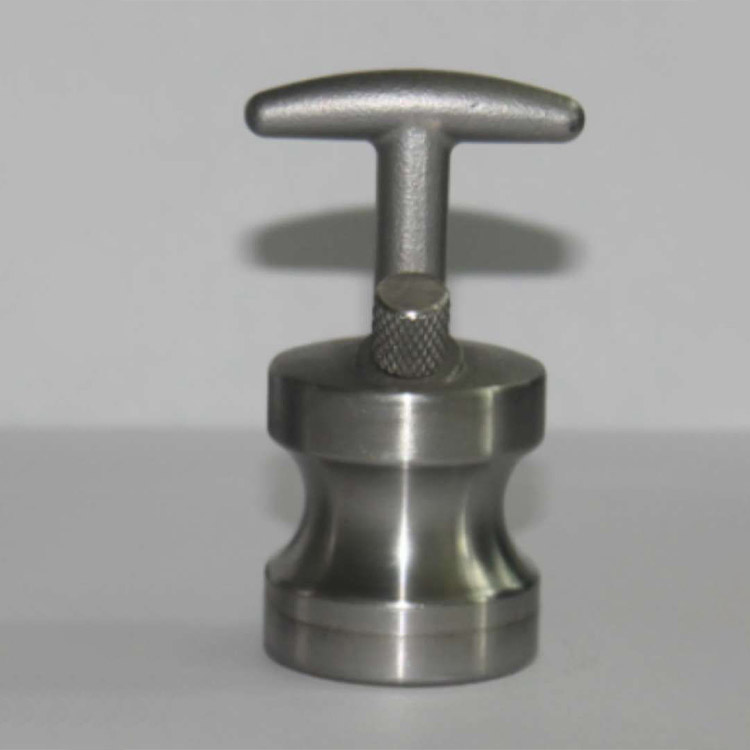

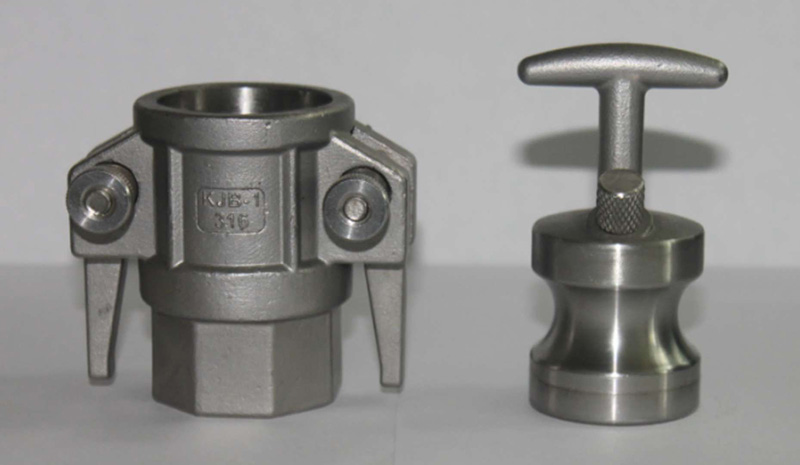

Connection Method: Female end (female connector) connects to the鹤管side, male end (male connector) connects to the tank truck/pipe side, plug and pull or twist for connection/disconnection, single person can complete connection/disassembly within 10 seconds, suitable for quick low-position鹤管operation.

Seals: Standard temperature models use fluoroelastomer/PTFE; low-temperature models use fluoroelastomer resistant to -196℃ cold; corrosion-resistant models use perfluoroether rubber, precisely matched to the medium characteristics.

Integrated accessory details

Connection Method: Ball valve and quick connector welded together / flange direct connection, flow channel coaxial, reducing fluid resistance, avoiding accumulation at pipeline corners.

Material Consistency: The ball valve and quick connector body are made of the same material, ensuring no galvanic corrosion and compatibility with various media conditions.

Auxiliary Configuration: Equipped with a static grounding terminal, it ensures reliable connection with鹤管 (鹤管), tank trucks, eliminating static buildup during insertion/removal or switching operations. Comes with a dust cover as standard, protecting the sealing surface of the connector from contamination and scratches when not in use.

Installation and Usage Precautions

Ensure the ball valve is coaxial with the quick connection passage during installation, and there is no misalignment in welding or flange connections to avoid vortices and localized wear during medium flow.

Prior to mating, clean the quick connector sealing surface to ensure it is free of oil, debris, and scratches. After mating, secure the locking clip/tighten the screw, and confirm the seal is reliable before opening the ball valve.

Prior to inserting or removing, close the ball valve first to cut off the flow, then proceed with the insertion or removal operation. Pressurized insertion or removal is strictly prohibited to avoid medium splashing and damage to the sealing components.

Prior to operation, ensure the static grounding terminal of the assembly is securely connected to the crane pipe and tank truck, with the grounding resistance ≤ 4Ω to eliminate static electricity risks.

When not in use, the dust cover must be secured to protect the sealing surface. Regularly inspect the wear of the seals and clips, and replace them promptly if they show signs of aging or deformation.

Pre-cooling treatment under low temperature is required before use to prevent sudden temperature changes from causing shrinkage and leakage in the sealing parts. Pneumatic/electric models need regular inspections of the actuator and air/s电源 supply.
