Clean various heat exchangers, condensers, industrial pipelines, boilers, and steam power plant condensers. Glan Chemical Co., Ltd. offers guaranteed cooperation.

Jining Green Chemical Technology Co., Ltd. (简称 Jining Green Cleaning Co.) was established in 2010 and is a specialized company in industrial heat exchanger equipment cleaning. The company possesses comprehensive business philosophy and the capability to research and develop industrial cleaning technologies. We undertake cleaning services for industrial, private enterprise, and corporate chemical equipment, power plant equipment, condensers, boilers, and boiler air preheaters; as well as air conditioning cleaning, heat exchanger cleaning, and cleaning of machinery and chemical equipment. We also handle cleaning and scaling removal for refrigeration and heating equipment.

Jining Green Clean Company stocks dozens of cleaning machines with various models ranging from 10mpa to 250mpa, and over a dozen chemical cleaning pump stations. Our main services are provided to power plants, chemical factories, oil refineries, food processing plants, corporate entities, heating equipment, and more. The company also offers long-term industrial heat exchanger cleaning and design solutions to industry clients.

Our company has newly acquired domestic cleaning machines and imported cleaning equipment. We've hired experienced technical specialists in the cleaning industry, which has enabled the cleaning of heat exchange equipment to be standardized and regulated.

Chemical Cleaning Scale Removal Process

Recirculating Closed Loop Cleaning

Recirculating cleaning utilizes two existing parallel ash discharge pipelines to form a loop, creating a recirculation system with the cleaning pump station. A solution of a certain concentration is added, which circulates and cleans within the ash water pipeline. During the acid washing process, when the acidity reaches a certain level, acid is continuously replenished. For short-distance single ash water pipelines, if conditions permit, a temporary pipeline can be laid to form a recirculation loop for cleaning. This process must be carried out during shutdown, and it is complex and costly.

Open Path Cleaning

No two ash pipes should form a loop during cleaning; only a single ash pipe should be used for open circuit cleaning. The method involves connecting one end of the ash pipe to the cleaning unit, continuously preparing a specific concentration of cleaning solution in the mixing tank, and then injecting it into the ash pipe continuously or intermittently. This process requires additional cleaning equipment during shutdown, which increases costs.

Continuous Operation Cleaning

The process involves continuously injecting a certain amount of acidic solution while the ash pipe is operating normally and not shut down. Simultaneously, a specific quantity of ash-pipe running cleaning inhibitor and pipeline descaling agent is added for open-loop cleaning. The primary function of the cleaning aid is to promote the reaction between the acidic solution and the ash scale at a certain concentration and flow rate, while also increasing its solubility in water and reducing the occurrence of airlock, ensuring the quality of ash-pipe cleaning.

The procedure is as follows: Before cleaning, first estimate the required acid amount based on the total scale in the pipeline. Then, calculate the acid addition rate and the flow rate of the sludge pipeline by considering the flow rate of the gray water and the acidity. During cleaning, take samples at the sampling point at the front of the gray pipe every 30 minutes to test the acidity, and strictly control the acidity by adjusting the flow rate of acid addition. In the later stage of cleaning, take samples at the end of the gray pipe every 15 minutes to test the pH value. When the pH value reaches a certain level and remains unchanged for 30 minutes, the cleaning can be deemed complete.

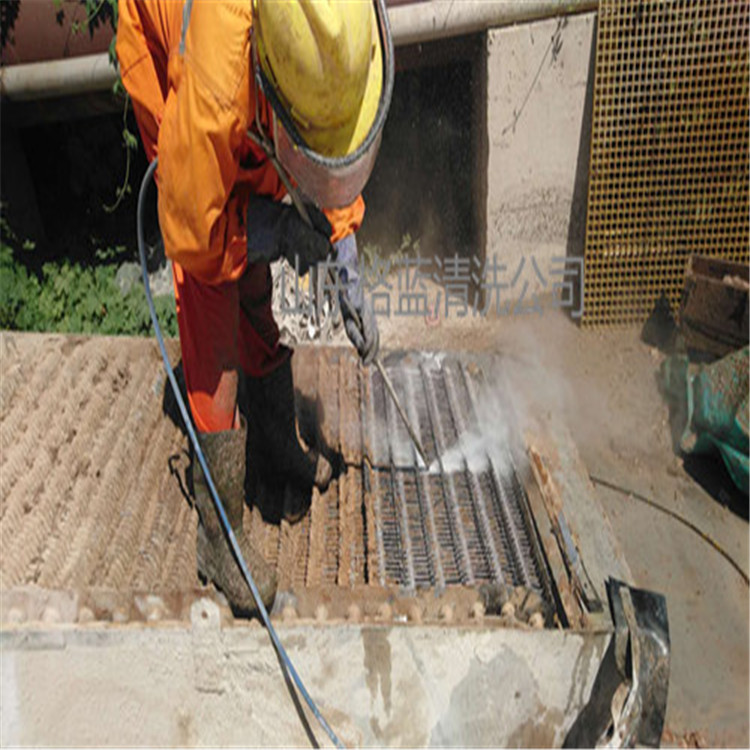

2. High-pressure water jet cleaning machinery
High-pressure water jet cleaning offers advantages such as high efficiency, low cost, non-damaging to workpieces, environmental friendliness, ease of operation, and safety.
The high-pressure water technology offers the following advantages.

(1) Excellent Cleaning Quality: The high-pressure water jet cleaning of pipeline and heat exchanger bores can completely remove scale and blockages inside, revealing the metal substrate. With immense energy and moving at supersonic speeds, the high-pressure water jet is fully capable of destroying hard scale and blockages without causing any damage to the metal.

High-pressure water cleaning will not damage the base material to be cleaned, as the pressure is less than the tensile strength grade of the metal.

(2) Rapid Cleaning Speed: Due to the combined abrasive actions of water jet washing, wedge splitting, shearing, and grinding, scale can be quickly broken and removed, which is several to tens of times faster than traditional chemical methods, sandblasting and shot peening techniques, simple mechanical, and manual cleaning methods.

Additionally, parts cleaned with high-pressure water jetting do not require secondary cleaning; however, after chemical cleaning, the surface chemical must be rinsed off with clean water.

(3) No Environmental Pollution: As high-pressure water jet cleaning uses pure water as the medium, it does not generate a large amount of dust like sandblasting or simple mechanical cleaning, which can pollute the atmosphere and harm health. It also does not produce a significant amount of waste liquid like some chemical cleaning methods, which can contaminate rivers, soil, and water quality. The water jet cleaning with pure water as the medium is odorless, tasteless, and non-toxic. After atomization, it can also reduce the dust concentration in the work area, lowering atmospheric dust levels from 80mg/m³ with other methods to below the national safety standards, thus causing no pollution.

3. Pipe Scale

(1) Classified by chemical composition, it includes carbonate scale, sulfate scale, silicate scale, and mixed scale, etc. The main components of carbonate scale are calcium carbonate and magnesium carbonate; the main components of sulfate scale and silicate scale are calcium sulfate and silicate compounds, respectively.

(2) Classified by physical properties, there are two types: scale that firmly adheres to the pot shell and tube walls, and sediment that is loosely textured and easily dislodged.
Lime scale primarily forms due to the salts of calcium and magnesium in the boiler feed water, which precipitate and adhere to the metal surface upon heating. Lime scale has a very low thermal conductivity, approximately 2 to 5 times that of ordinary steel. When lime scale accumulates on the boiler's heating surface, it significantly worsens the heat transfer efficiency and affects the boiler's performance; it can easily cause metal materials to burn due to localized overheating, potentially leading to pipe explosion accidents; it also accelerates galvanic corrosion, causing pipeline lime scale corrosion and speeding up the damage to the heating surface. Once lime scale forms, it should be promptly removed using mechanical or chemical methods.

Heat Exchanger and Refrigeration Equipment Cleaning - Choose GreenChem for Reliability
