Clean various heat exchangers, condensers, industrial pipelines, boilers, and power plant equipment condensers. GlanChem partnership is guaranteed.

Jining Greentech Chemical Technology Co., Ltd. (简称 Jining Greentech Cleaning Co.) was established in 2010 and is a professional company specializing in the cleaning of various industrial heat exchange equipment. The company has comprehensive business philosophy and the capability to research and develop industrial cleaning technologies. We undertake cleaning services for industrial, private enterprise, and corporate chemical equipment, power plant equipment, condensers, boilers, and boiler air preheaters; as well as air conditioning and heat exchange equipment cleaning. We also handle cleaning and descaling of refrigeration and heating equipment.

Chiller Cleaning, Mechanical Unclogging, Chemical Scale Removal - Shandong Zibo Yiyuan

Jining Green Cleaning Co. stocks dozens of cleaning machines ranging from 10mpa to 250mpa, as well as over a dozen chemical cleaning pump stations. Our main services are provided to power plants, chemical factories, oil mills, food factories, corporate entities, heating equipment, and more. The company also offers long-term industrial heat exchanger cleaning and design solutions to industry clients.

Our company has newly acquired domestic cleaning machines and imported cleaning equipment. We have hired experienced technical specialists in the cleaning industry to standardize and regulate the cleaning of heat exchange equipment.

Condenser Cleaning, Mechanical Cleaning, Chemical Scale Removal - Shandong Zibo Yiyuan

Chemical Cleaning Scale Removal Process

Recirculating Closed Loop Cleaning

Recirculating cleaning utilizes two original parallel deslagging pipelines to form a loop, creating a circulation system with the cleaning pump station. A solution of a certain acidity is added, which circulates through the sludge water pipes for cleaning. As the acid washing decreases to a certain level, the solution is continuously replenished. For short-distance single sludge water pipelines, if conditions permit, a temporary pipeline can be laid to form a recirculation loop for cleaning. This process must be carried out during shutdown and is complex, with high costs.

Condenser Cleaning Equipment - Mechanical Descaling Chemicals, Shandong Zibo Yiyuan

Pilot cleaning

During cleaning, it is imperative to avoid a loop formed by two ash pipes. Only a single ash pipe should be used for open-path cleaning. The method involves connecting one end of the ash pipe to the cleaning device, continuously preparing a certain concentration of cleaning solution in the fluid storage tank, and then injecting it into the ash pipe continuously or intermittently. This process requires adding cleaning equipment while the system is shutdown, which increases the cost.

Condenser Cleaning Equipment, Mechanical Descaling, Chemical Scale Removal, Shandong Zibo Yiyuan

Continuous Operation Cleaning

The process involves continuously injecting a certain amount of acid solution while the ash pipeline is operating normally, without interruption. At the same time, a certain amount of ash pipeline running cleaning inhibitor and pipeline cleaning descaler is added, followed by open circuit cleaning. The primary function of the cleaning aids is to promote the reaction between the acid solution and ash deposits in a solution with a specific concentration and flow rate, while also increasing its solubility in water, reducing the occurrence of air blockages, and ensuring the quality of ash pipeline cleaning.

The procedure is as follows: Before cleaning, estimate the required acid amount based on the total scale in the pipeline. Then, calculate the acid addition rate and the flow rate of the descaling agent and pipeline cleaning agent by considering the sludge water flow rate and acidity. During cleaning, take a sample at the front end of the sludge pipe every 30 minutes to test the acidity, and strictly control the acidity by adjusting the acid flow rate. In the later stage of cleaning, take a sample at the end of the sludge pipe every 15 minutes to test the pH value. When the pH value reaches a certain level and remains unchanged for 30 minutes, the cleaning can be deemed complete.
Condenser Cleaning Equipment, Mechanical Descaling, Chemical Scale Removal, Shandong Zibo Yiyuan

2. High-pressure water cleaning machinery:
High-pressure water jet cleaning offers advantages such as high efficiency, low cost, non-damaging to workpieces, environmental friendliness, ease of operation, and safety.
High-pressure water technology offers the following advantages.

(1) Excellent Cleaning Quality: The high-pressure water jet cleaning of pipes and the internal holes of heat exchangers can thoroughly remove scale and blockages inside, revealing the metal substrate. The high-pressure water jet, with its immense energy and supersonic speed, is fully capable of destroying hard scale and blockages without causing any damage to the metal.

High-pressure water cleaning will not damage the substrate being cleaned, as the pressure is less than the tensile strength grade of the metal.

Condenser Cleaning Equipment, Mechanical Descaling, Chemical Scale Removal, Shandong Zibo Yiyuan

(2) Fast Cleaning Speed: Due to the combined action of jet washing, wedging, shearing, and abrasive cutting, scale can be quickly broken and removed, making the cleaning process several to ten times faster than traditional chemical methods, sandblasting, simple mechanical, and manual methods.

Additionally, parts cleaned with high-pressure water jetting do not require secondary cleaning; however, after chemical cleaning, the surface must be rinsed with clean water.

(3) No Environmental Pollution: As high-pressure water jet cleaning uses pure water as the medium, it does not generate a large amount of dust like sandblasting, grit-blasting, or simple mechanical cleaning, which can pollute the atmosphere and harm health. It also does not produce a large volume of waste liquid like some chemical cleaning methods, which can contaminate rivers, soil, and water quality. The water jet cleaning with pure water as the medium is odorless, tasteless, and non-toxic. After atomization, the emitted jet can also reduce the dust concentration in the work area, lowering atmospheric dust levels from 80mg/m³ with other methods to below the national safety standards, thus causing no pollution.

Condenser Cleaning Machine, Mechanical Draining, Chemical Scale Removal, Shandong Zibo Yiyuan

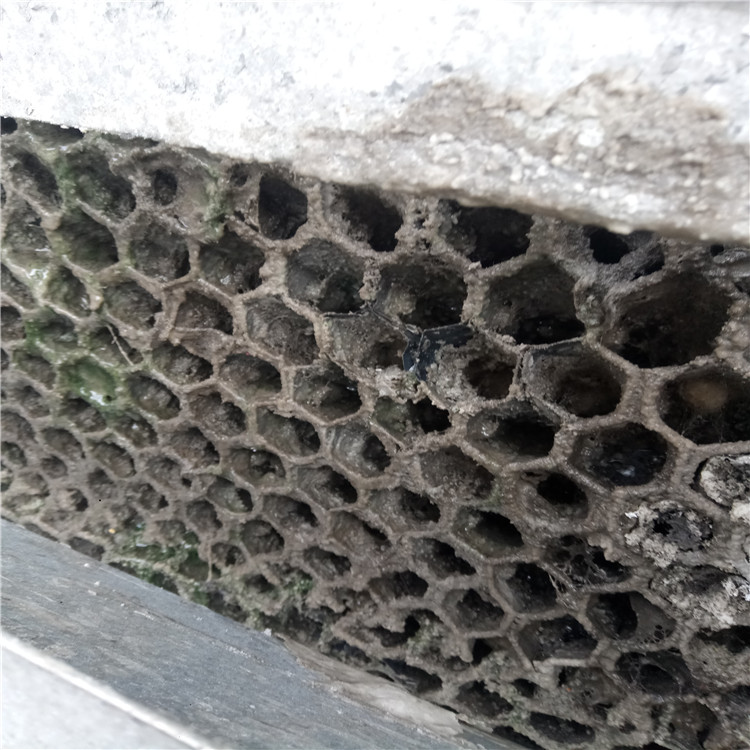

Pipe Scale

(1) Classified by chemical composition, they include carbonate scale, sulfate scale, silicate scale, and mixed scale. The main components of carbonate scale are calcium carbonate and magnesium carbonate; the main components of sulfate scale and silicate scale are calcium sulfate and silicate compounds, respectively.

(2) Categorized by physical properties, there are two types: a hard scale that firmly adheres to the pot shell and tube walls, and a loose sediment that is easy to detach.
Lime scale primarily forms due to the salts like calcium and magnesium in the boiler feed water precipitating and adhering to the metal surface upon heating. Lime scale has a very low thermal conductivity, approximately 2 to 5 times less than that of ordinary steel. When lime scale accumulates on the boiler's heating surface, it significantly worsens the heat transfer efficiency, affecting the boiler's performance; it can easily cause metal materials to burn out due to localized overheating, even leading to pipe explosion accidents; it also accelerates galvanic corrosion, causing pipeline lime scale corrosion, and speeding up the damage to the heating surface. Once lime scale forms, it should be promptly removed using mechanical or chemical methods.

Heat Exchanger and Refrigeration Equipment Cleaning - Choose Green Chemicals for Assurance
