Clean various heat exchangers, condensers, industrial pipelines, boilers, and steam power plant condensers. Glan Chemical Co., Ltd. offers guaranteed cooperation.

Jining Greentech Chemical Technology Co., Ltd. (abbreviated to Jining Greentech Cleaning Co.) was established in 2010 and is a professional company specializing in cleaning various industrial heat exchange equipment. The company boasts comprehensive business philosophy and the capability to research and develop industrial cleaning technologies. We undertake cleaning services for industrial, private enterprise, and corporate chemical equipment, power plant equipment, condensers in power plants, boilers, and boiler air preheaters; as well as air conditioning and heat exchange equipment cleaning. We also handle cleaning of machinery and chemical equipment, and descaling of refrigeration and heating equipment.

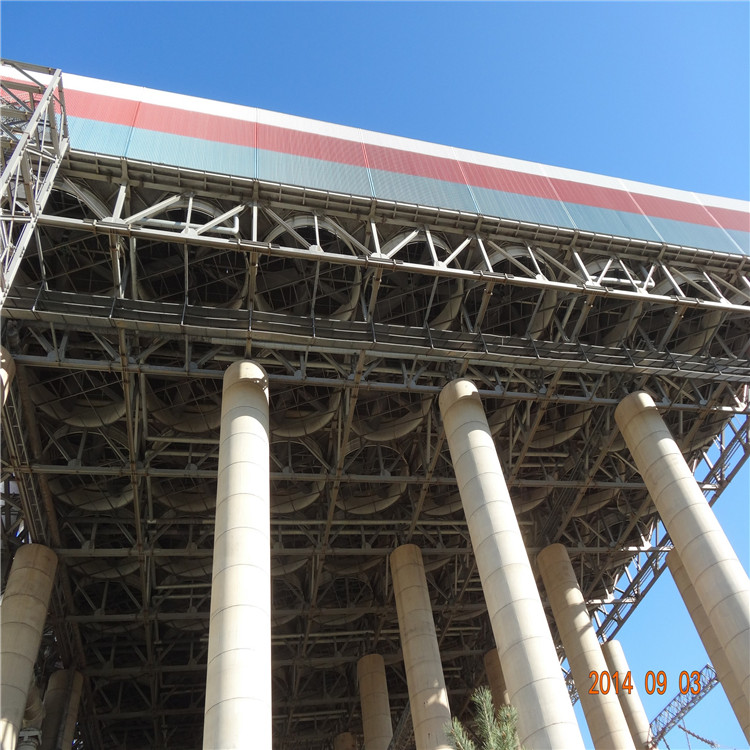

Air-cooled island cleaning, Qingdao City, Shandong Province

Jining Green Clean Company stocks dozens of cleaning machines with various models ranging from 10mpa to 250mpa, and more than a dozen chemical cleaning pump stations. Our main services include power plants, chemical factories, oil mills, food factories, corporate entities, heating equipment, etc. The company also offers long-term industrial heat exchanger cleaning and solution design services to industry clients.

Our company has newly acquired domestic cleaning machines and imported cleaning equipment. We have hired experienced technical specialists in the cleaning industry, which has enabled the cleaning of heat exchange equipment to be standardized and standardized.

Chemical Cleaning Scale Removal Process

Recirculating Closed Loop Cleaning

Recirculating cleaning utilizes two original parallel ash pipelines to form a loop, creating a circulation system with the cleaning pump station. A certain concentration of acidic solution is added, and it circulates through the ash water pipes for cleaning. As the acid washing reaches a certain level, the acidic solution is continuously replenished. For short-distance single ash water pipelines, if conditions permit, a temporary pipeline can be laid to form a recirculation loop for cleaning. This process must be carried out while the system is shut down, and it is complex and costly.

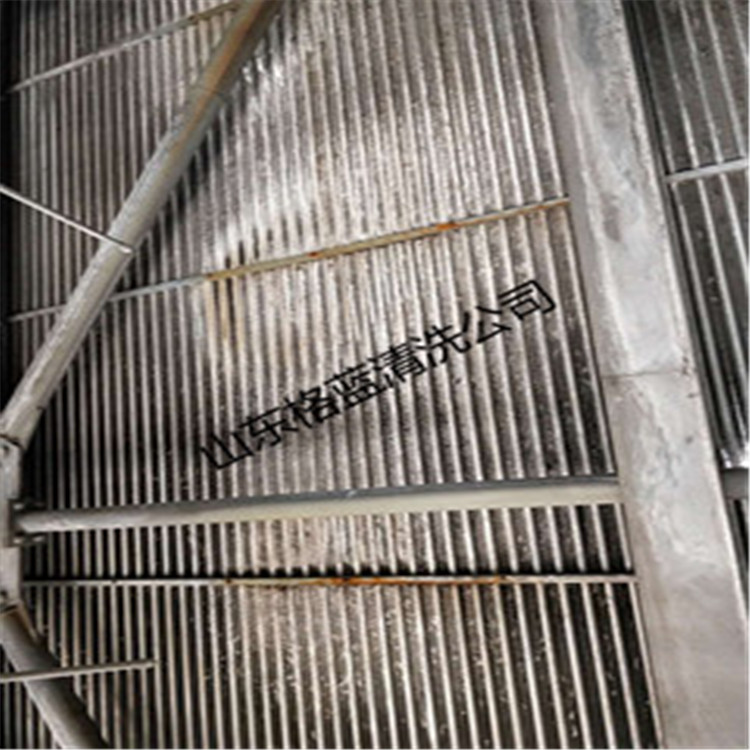

Air-cooled island cleaning in Qingdao, Shandong Province

Pilot cleaning

No two gray pipes can form a loop during cleaning; only a single gray pipe can be used for open circuit cleaning. The method involves connecting one end of the gray pipe to the cleaning unit, continuously preparing a specific concentration of cleaning solution in the dosing tank, and then continuously or intermittently injecting it into the gray pipe. This process requires additional cleaning equipment during shutdown, which increases costs.

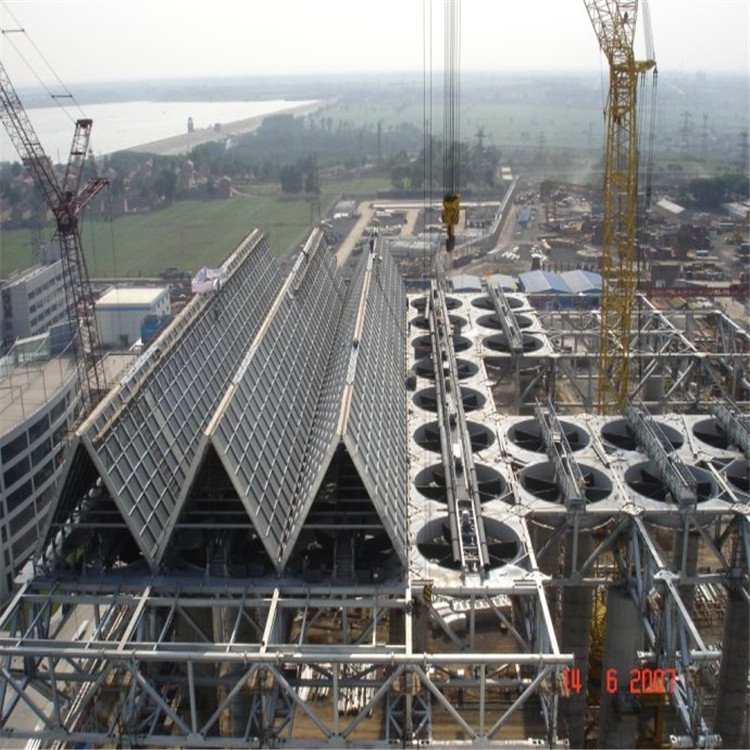

Air-cooled island cleaning in Qingdao, Shandong Province

Continuous cleaning without shutdown

The process involves continuously injecting a certain amount of acidic solution while the ash pipe is operating normally without interruption, simultaneously adding a specific quantity of ash-pipe running cleaning inhibitor and pipeline descaling agent. This is an open-circuit cleaning method. The main function of the cleaning aid is to promote the reaction between the acidic solution and the ash scale at a certain concentration and flow rate, while also increasing its solubility in water, reducing the occurrence of air blockage, and ensuring the quality of ash pipe cleaning.

Operation method: Before cleaning, estimate the required acid amount based on the total scale in the pipeline. Then, calculate the acid addition rate and ash conveying line operation rate for cleaning inhibitors and pipeline descaler addition based on the grey water flow and acidity. During cleaning, take a sample every 30 minutes at the sampling point at the front end of the ash pipeline to test the acidity and strictly control it by adjusting the acid flow rate. In the later stage of cleaning, take a sample every 15 minutes at the end of the ash pipeline to test the pH value. When the pH value reaches a certain level and remains unchanged for 30 minutes, the cleaning process can be deemed completed.
Air-cooled island cleaning in Qingdao, Shandong Province

2. High-pressure water jet cleaning machinery
High-pressure water jet cleaning offers high efficiency, low costs, non-damaging to workpieces, environmental friendliness, ease of operation, and safety benefits.
High-pressure water technology boasts the following advantages.

(1) Excellent Cleaning Quality: The high-pressure water jet cleaning of pipe and heat exchanger bores can completely remove scale and blockages inside, revealing the metal substrate. With its immense energy and supersonic speed, the high-pressure water jet is fully capable of destroying hard scale and blockages without causing any damage to the metal.

Since the pressure of high-pressure water is less than the compressive strength grade of metal, high-pressure cleaning will not damage the substrate being cleaned.
Air-cooled island cleaning, Qingdao City, Shandong Province

(2) Fast Cleaning Speed: Due to the combined action of water jet flushing, wedging, shearing, and grinding, scale can be quickly broken and removed, making the cleaning process several to ten times faster than traditional chemical methods, sandblasting, simple mechanical, and manual methods.

Parts cleaned with high-pressure water jetting require no secondary cleaning, while those chemically cleaned must be washed with plain water to remove surface residue.
Air-cooled island cleaning in Qingdao, Shandong Province

(3) Non-polluting: As high-pressure water jet cleaning uses pure water as the medium, it does not produce large amounts of dust like sandblasting, grit-blasting, or simple mechanical cleaning, which can pollute the atmosphere and harm health. Nor does it generate a significant amount of waste liquid like some chemical cleaning methods, which can contaminate rivers, soil, and water quality. The water jet, being odorless, tasteless, and non-toxic, also reduces the dust concentration in the work area after atomization, lowering atmospheric dust from 80mg/m³ using other methods to below the national safety standards. Thus, it does not cause any pollution.

Air-cooled island cleaning, Qingdao City, Shandong Province

Pipe Scale

(1) Classified by chemical composition, they can be categorized into carbonate scale, sulfate scale, silicate scale, and mixed scale. The main components of carbonate scale are calcium carbonate and magnesium carbonate; the main components of sulfate scale and silicate scale are calcium sulfate and silicate compounds, respectively; mixed scale is usually a mixture of the above three types of scales.
Air-cooled island cleaning in Qingdao, Shandong Province

(2) Categorized by physical properties, there are two types: water scale that firmly adheres to the pot shell and tube walls, and sediment that is loosely textured and easily detached.
Lime scale primarily forms due to the salts of calcium and magnesium present in the boiler feed water, which precipitate and adhere to the metal surface upon heating. Lime scale has a very low thermal conductivity, approximately 2 to 5 times that of ordinary steel. When lime scale accumulates on the boiler's heating surface, it significantly worsens the heat transfer efficiency and affects the boiler's performance; it can easily lead to the burning of metal materials due to localized overheating, even causing pipe explosion accidents; it also accelerates galvanic corrosion, leading to pipeline lime scale corrosion and speeding up the damage to the heating surface. Once lime scale forms, it should be promptly removed using mechanical or chemical methods.

Heat Exchanger and Refrigeration Equipment Cleaning - Choose GreenChem for Reliability
