Clean various heat exchangers, condensers, industrial pipelines, boilers, and steam power plant condensers. Glan Chemical Co., Ltd. offers guaranteed cooperation.

Jining Green Chemical Technology Co., Ltd. (简称 Jining Green Cleaning Co.) was established in 2010 and is a professional company specializing in the cleaning of various industrial heat exchange equipment. The company has comprehensive business philosophy and the capability to research and develop industrial cleaning technology, undertaking cleaning services for industrial, private enterprise, and corporate chemical equipment, power plant equipment, condensers, boilers, and economizers. We also provide air conditioning cleaning, heat exchange equipment cleaning, and cleaning services for machinery and chemical equipment. Additionally, we offer cleaning and descaling services for refrigeration and heating equipment.

Jining Grean Cleaning Co. has dozens of cleaning machines in various models ranging from 10mpa to 250mpa, as well as over a dozen chemical cleaning pump stations. Our main services include power plants, chemical factories, oil refineries, food processing plants, corporate entities, heating equipment, and more. The company also provides long-term industrial heat exchanger cleaning and design solutions to industry clients.

Our company has newly acquired domestic cleaning machines and imported cleaning equipment. We have hired experienced technical specialists in the cleaning industry to achieve standardized and standardized cleaning of heat exchange equipment.

Chemical Cleaning Scale Removal Process

Recirculating Closed Loop Cleaning

Recirculating cleaning utilizes two existing parallel ash discharge pipelines to form a circuit, creating a recirculation system with the cleaning pump station. A certain concentration of acidic solution is added, allowing it to circulate and clean within the ash water pipes. As the acid cleaning reaches a certain level, the acidic solution is continuously replenished. For short-distance single ash water pipelines, if conditions permit, a temporary pipeline can be laid to form a recirculation circuit for cleaning. This process must be carried out while the system is shut down, and it is complex and costly.

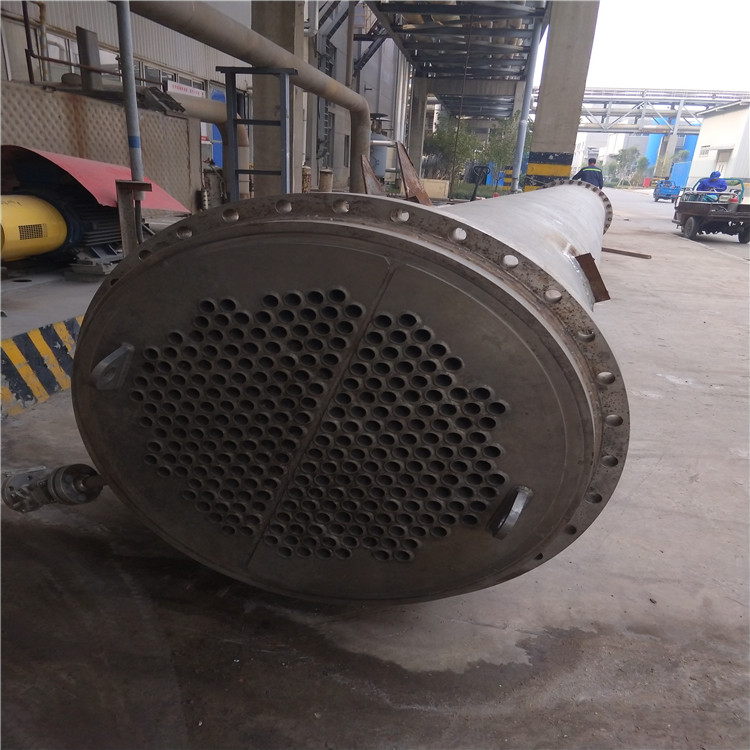

Copper Tube Condenser Cleaning, Jining, Shangdong

Open Channel Cleaning

No two ash pipes should form a loop during cleaning; only a single ash pipe should be used for open circuit cleaning. The method involves connecting one end of the ash pipe to the cleaning unit, continuously preparing a certain concentration of cleaning solution in the mixing tank, and then injecting it into the ash pipe continuously or intermittently. This process requires additional cleaning equipment during shutdown, which increases costs.

Continuous Cleaning

The process involves continuously injecting a certain amount of acidic solution while the ash pipe is operating normally without interruption, simultaneously adding a specific quantity of ash-pipe running cleaning inhibitor and pipeline descaling agent for open-loop cleaning. The main function of the cleaning aids is to promote the reaction between the acidic solution and the ash scale at a certain concentration and flow rate, while also increasing its solubility in water, reducing airlock formation, and ensuring the quality of ash pipe cleaning.

The operation procedure is: First, estimate the required acid amount based on the total scaling in the pipeline before cleaning. Then, calculate the acid addition rate and the flow rate of the ash-carrying pipe based on the flow rate of the grey water and the acid concentration. During the cleaning process, take a sample every 30 minutes at the sampling point in front of the ash pipe to test the acidity, and strictly control the acidity by adjusting the flow rate of acid addition. In the later stage of cleaning, take a sample every 15 minutes at the end of the ash pipe to test the pH value. When the pH value reaches a certain level and remains unchanged for 30 minutes, the cleaning can be deemed completed.


2. High-pressure water jet cleaning machinery
High-pressure water jet cleaning offers advantages such as high efficiency, low cost, non-damaging to workpieces, environmental friendliness, ease of operation, and safety.
Advantages of high-pressure water technology include:

(1) Excellent Cleaning Quality: High-pressure water jet cleaning of pipes and heat exchanger bores can thoroughly remove scale and blockages inside, revealing the metal substrate. The high-pressure water jet, with its immense energy and supersonic speed, can completely destroy hard scale and blockages without causing any damage to the metal.

Since the pressure of high-pressure water is less than the compressive strength grade of metal, high-pressure cleaning will not damage the base material being cleaned.

(2) Fast Cleaning Speed: Due to the combined abrasive actions of water jetting, chiseling, shearing, and grinding, scaling can be quickly shattered and removed, making the cleaning process several to ten times faster than traditional chemical methods, sandblasting, ball-blasting techniques, simple mechanical, and manual methods.

Additionally, parts cleaned with high-pressure water jetting do not require a secondary cleaning process; however, after chemical cleaning, the surface must be rinsed with clean water.

(3) No Environmental Pollution - Since high-pressure water jet cleaning uses pure water as the medium, it does not generate a large amount of dust like sandblasting, shot blasting, or simple mechanical cleaning, which can pollute the atmosphere and harm health. It also does not produce a significant amount of waste liquid like some chemical cleaning methods, which can contaminate rivers, soil, and water quality. The water jet cleaning using pure water is odorless, tasteless, and non-toxic. After atomization, it can also reduce the dust concentration in the work area, lowering atmospheric dust from 80mg/m³ using other methods to below the national safety standards. Therefore, it does not cause any pollution.

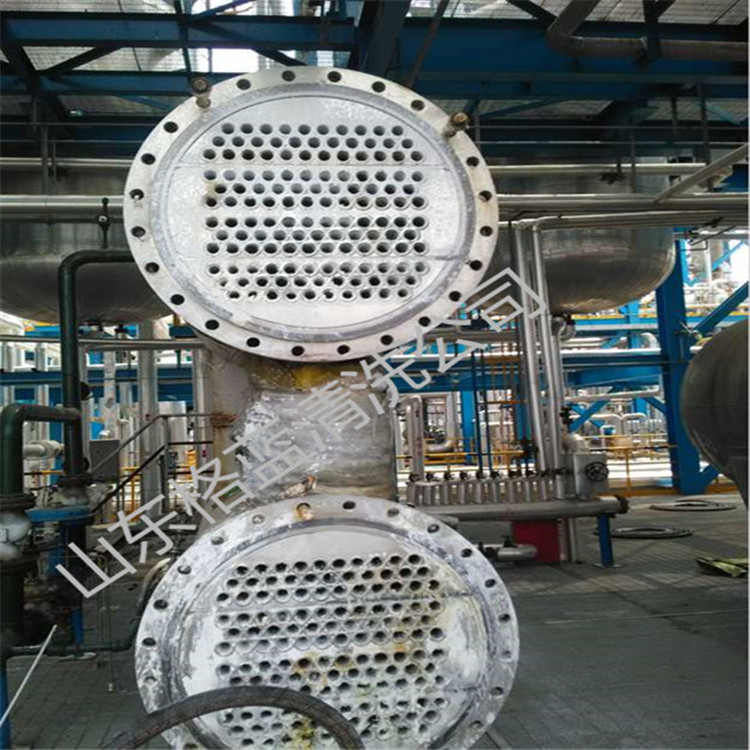

Copper Tube Condenser Cleaning in Wen Shang, Jining, Shandong

Pipe Scale

(1) Categorized by chemical composition, it includes carbonate scale, sulfate scale, silicate scale, and mixed scale, among others. The main components of carbonate scale are calcium carbonate and magnesium carbonate; the main components of sulfate scale and silicate scale are calcium sulfate and silicate compounds, respectively; mixed scale is often a mixture of the above three types.
Copper Tube Condenser Cleaning in WenShang, Jining, Shandong

(2) Classified by physical properties, there are two types: scale that firmly adheres to the pot shell and pipe walls, and silt that is loose and easily detachable.
Scale primarily forms due to the salts of calcium and magnesium present in the boiler feedwater, which precipitate and adhere to the metal surface upon heating. The thermal conductivity of scale is very low, around 2 to 5 times that of ordinary steel. Scale buildup on the boiler's heating surface greatly worsens heat transfer efficiency, affecting the boiler's performance; it can easily cause metal materials to burn due to local overheating, potentially leading to tube explosion accidents; it also accelerates galvanic corrosion, causing pipeline scale corrosion, and speeds up the damage to the heating surface. Once scale forms, it should be promptly removed using mechanical or chemical methods.

Heat Exchanger & Refrigeration Equipment Cleaning – Choose Green Chemicals for Assurance
