Clean various heat exchangers, condensers, industrial pipelines, boilers, and steam power plant condensers. Glan Chemicals guarantees cooperation.

Jining Green Chemical Technology Co., Ltd. (简称 Jining Green Cleaning Co.) was established in 2010 and is a professional company specializing in the cleaning of various industrial heat exchange equipment. The company has comprehensive business philosophy and the capability to develop industrial equipment cleaning technologies, undertaking cleaning services for industrial, private enterprises, corporate chemical equipment, power plant equipment, condensers, boilers, and economizers. We also provide air conditioning and heat exchange equipment cleaning, as well as cleaning for machinery and chemical equipment. Additionally, we handle the cleaning of refrigeration and heating equipment for scale removal.

Jining Grean Cleaning Co. has dozens of cleaning machines of various models ranging from 10mpa to 250mpa, and over a dozen chemical cleaning pump stations. Our main services are provided to power plants, chemical factories, oil refineries, food processing plants, corporate entities, heating equipment, and more. The company also offers long-term industrial heat exchanger cleaning and design solutions to industry clients.

Our company has newly acquired domestic cleaning machines and imported cleaning equipment. We have hired experienced technical specialists in the cleaning industry to standardize and normalize the cleaning of heat exchange equipment.

Chemical cleaning descaling process:

Recirculating Closed-loop Cleaning

Recirculation cleaning utilizes two original parallel deslagging pipelines to form a loop, which, along with the cleaning pump station, creates a recirculation system. A solution of a certain concentration of acidity is added, allowing it to circulate and clean within the sludge water pipeline. As the acidity wash reaches a certain level, the solution is continuously replenished. For short-distance single sludge water pipelines, if conditions permit, a temporary pipeline can be installed to create a recirculation loop for cleaning. This process must be carried out while the system is shut down, and it is complex and costly.

Open Path Cleaning

No two gray pipes can form a loop during cleaning; only a single gray pipe can be used for open-circuit cleaning. The method involves connecting one end of the gray pipe to the cleaning unit, continuously preparing a specific concentration of cleaning solution in the dosing tank, and then continuously or intermittently injecting it into the gray pipe. This process requires the addition of cleaning equipment during shutdown, which increases costs.

Continuous operation cleaning

This process involves continuously injecting a certain amount of acidic solution while the ash pipeline is operating normally without interruption, concurrently adding a specific quantity of ash pipeline cleaning inhibitor and pipeline cleaning descaler for open-loop cleaning. The primary function of the cleaning additive is to promote the reaction between the acidic solution and ash scale at a certain concentration and flow rate, while also enhancing its solubility in water and reducing the formation of airlock, ensuring the quality of ash pipeline cleaning.

The procedure is as follows: Prior to cleaning, estimate the required acid quantity based on the total scale in the pipeline. Then, calculate the acid addition rate and the flow rate for the addition of the cleaning inhibitor and pipeline descaler according to the sludge flow rate and acidity. During cleaning, take samples at the sampling point at the front end of the sludge pipe every 30 minutes to test acidity and strictly control it by adjusting the acid flow rate. In the later stage of cleaning, take samples at the end of the sludge pipe every 15 minutes to test the pH value. The cleaning can be deemed complete when the pH value reaches a certain level and remains unchanged for 30 minutes.

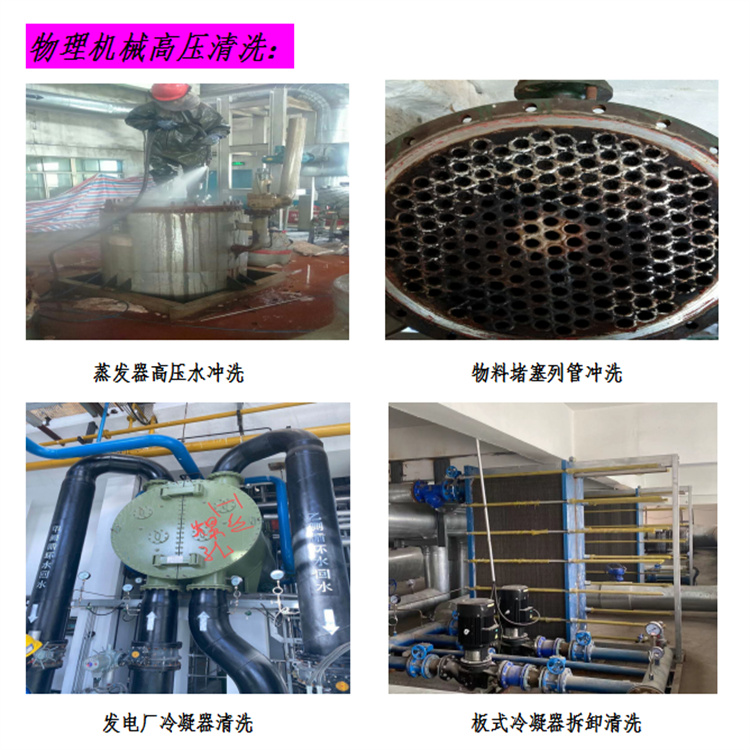

2. High-pressure water jet cleaning equipment
High-pressure water jet cleaning offers advantages such as high efficiency, low cost, non-damaging to workpieces, environmental friendliness, ease of operation, and safety.
The advantages of high-pressure water technology include:

(1) Excellent Cleaning Quality: The high-pressure water jet cleaning for pipes and heat exchanger bores can completely remove scale and blockages inside, revealing the metal substrate. With its immense energy and supersonic speed, the high-pressure water jet is fully capable of destroying hard scale and blockages, yet it has no damaging effect on the metal.

Since the pressure of high-pressure water is less than the pressure-bearing strength grade of metal, high-pressure cleaning will not damage the base material being cleaned.

(2) Fast Cleaning Speed: Due to the combined action of jet washing, splitting, shearing, and grinding, scale can be quickly broken and removed, which is several to tens of times faster than traditional chemical methods, sandblasting and shot peening techniques, simple mechanical, and manual cleaning methods.

Additionally, components cleaned with high-pressure water jetting do not require secondary cleaning; however, after chemical cleaning, the surface chemical must be rinsed off with clear water.

(3) No Environmental Pollution - Since high-pressure water jet cleaning uses clean water as the medium, it does not produce a large amount of dust like sandblasting, shot blasting, or simple mechanical cleaning, which can pollute the air and harm health. It also does not generate a significant amount of waste liquid like some chemical cleaning methods, which can contaminate rivers, soil, and water quality. The water jet cleaning with clean water as the medium is odorless, tasteless, and non-toxic. After atomization, the emitted jet can also reduce the dust concentration in the work area, lowering atmospheric dust levels from 80mg/m³ with other methods to below the national safety standards, thus ensuring no pollution is caused.

Pipe Scale

(1) Classified by chemical composition, it includes carbonate scale, sulfate scale, silicate scale, and mixed scale, among others. The main components of carbonate scale are calcium carbonate and magnesium carbonate; the main components of sulfate scale and silicate scale are calcium sulfate and silicate compounds, respectively; mixed scale is usually a mixture of the above three types of scales.

(2) Classified by physical properties, there are two types: scale that firmly adheres to the pot shell and pipe walls, and silt that is loose and easy to dislodge.
Lime scale primarily forms due to the salts like calcium and magnesium in the boiler feed water, which precipitate and adhere to the metal surface upon heating. Lime scale has a very low thermal conductivity, approximately 2 to 5 times that of ordinary steel. When lime scale accumulates on the boiler's heating surface, it significantly worsens the heat transfer efficiency and affects the boiler's performance; it can easily cause metal materials to burn due to localized overheating, potentially leading to pipe explosion accidents; it also accelerates galvanic corrosion, causing pipeline lime scale corrosion and speeding up the damage to the heating surface. Once lime scale forms, it should be promptly removed using mechanical or chemical methods.

Heat Exchanger & Refrigeration Equipment Cleaning - Choose Green Chemical for Assurance
