Clean all types of heat exchangers, condensers, industrial pipelines, boilers, and steam power plant condensers. Glan Chemical Co., Ltd. guarantees cooperation.

Jining Green Chemical Technology Co., Ltd. (简称 Jining Green Cleaning Co.) was established in 2010 and is a professional company specializing in the cleaning of various industrial heat exchange equipment. The company has comprehensive business philosophy and the capability to research and develop industrial cleaning technologies, undertaking cleaning services for industrial, private enterprise, and corporate chemical equipment, power plant equipment, condensers, boilers, and boiler air preheaters; as well as air conditioning and heat exchange equipment cleaning. We also handle cleaning of mechanical and chemical equipment, and descaling of refrigeration and heating equipment.
Scale Cleaning Agent, Shaozhuang Xuecheng, Shandong

Jining Grean Cleaning Company stocks dozens of cleaning machines with various models ranging from 10mpa to 250mpa, as well as over a dozen chemical cleaning pump stations. Our primary services include power plants, chemical factories, oil mills, food factories, corporate entities, heating equipment, and more. The company also provides long-term industrial heat exchanger cleaning and design services to clients in the industry.

Our company has newly acquired domestic cleaning machines and imported cleaning equipment. We have hired experienced technical specialists in the cleaning industry, enabling the cleaning of heat exchange equipment to be standardized and regulated.

Chemical Cleaning Scale Removal Process

Recirculating Closed Loop Cleaning

Recirculating cleaning utilizes two existing parallel ash piping lines to form a loop, creating a recirculation system with the cleaning pump station. A certain concentration of acidic solution is added, which circulates through the ash water pipes for cleaning. As the acid washing decreases to a certain level, the acidic solution is continuously replenished. For short-distance single ash water pipes, if conditions permit, a temporary pipeline can be laid to form a recirculation loop for cleaning. This process must be carried out while the system is shut down, and it is complex and costly.

Open Path Cleaning

No two gray pipes can form a loop during cleaning; only a single gray pipe can be used for open circuit cleaning. The method involves connecting one end of the gray pipe to the cleaning unit, continuously preparing a specific concentration of cleaning solution in the dosing tank, and then continuously or intermittently injecting it into the gray pipe. This process requires the addition of cleaning equipment during shutdown, which increases costs.
Scalable cleaner, Shandong, Zaozhuang, Xuecheng

Continuous cleaning without shutdown

The process involves continuously injecting a certain amount of acidic solution while the ash pipe is operating normally without interruption, simultaneously adding a specific quantity of ash-pipe running cleaning inhibitor and pipeline cleaning descaler for open-circuit cleaning. The main function of the cleaning aid is to promote the reaction between the acidic solution and the ash scale at a certain concentration and flow rate, while also increasing its solubility in water and reducing the occurrence of air blockages, ensuring the quality of ash-pipe cleaning.

The procedure is as follows: Before cleaning, first estimate the required acid amount based on the total scale in the pipeline. Then, calculate the acid addition rate and the flow rate of the ash removal agent and pipeline cleaning agent based on the gray water flow rate and acidity. During cleaning, take a sample at the front sampling point of the ash pipe every 30 minutes to test the acidity and strictly control it by adjusting the acid flow rate. In the later stage of cleaning, take a sample at the end of the ash pipe every 15 minutes to test the pH value. When the pH value reaches a certain level and remains unchanged for 30 minutes, the cleaning can be considered complete.

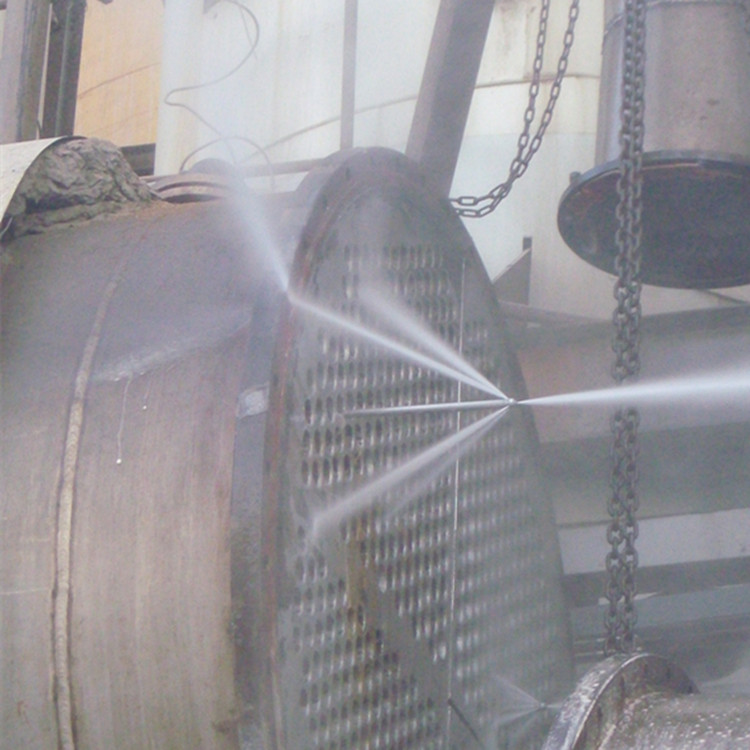

2. High-pressure water jet cleaning machinery
High-pressure water jet cleaning offers advantages such as high efficiency, low cost, non-damaging to workpieces, environmental friendliness, ease of operation, and safety.
High-pressure water technology boasts the following advantages.

(1) High-quality Cleaning: During high-pressure water jet cleaning of pipeline and heat exchanger bores, it can remove all scaling and obstructions inside the pipes, revealing the metal surface. The high-pressure water jet, with its immense energy and supersonic speed, can completely destroy hard scaling and obstructions without causing any damage to the metal.

Due to the pressure of high-pressure water being less than the compressive strength grade of metal, high-pressure cleaning will not damage the base material being cleaned.

(2) Fast Cleaning Speed: Due to the combined action of jet washing, wedge splitting, shearing, and abrasive cutting, scale can be quickly broken and removed, making the cleaning process several to ten times faster than traditional chemical methods, sandblasting, simple mechanical, and manual methods.

Components cleaned with high-pressure water jetting do not require secondary cleaning; however, after chemical cleaning, the surface must be rinsed with clear water.
Scale Cleaning Agent - Shizhuang, Zaozhuang, Shandong

(3) No Environmental Pollution: Since high-pressure water jet cleaning uses pure water as the medium, it does not generate a large amount of dust like sandblasting, shot blasting, or simple mechanical cleaning, which can pollute the atmosphere and harm health. It also does not produce a large amount of waste liquid like some chemical cleaning methods, which can contaminate rivers, soil, and water quality. The water jet cleaning with pure water as the medium is odorless, tasteless, and non-toxic. After atomization, the emitted jet can also reduce the dust concentration in the working area, lowering atmospheric dust from 80mg/m³ with other methods to below the national safety standards, thus causing no pollution.

3. Pipe Scale

(1) Categorized by chemical composition, they include carbonate scale, sulfate scale, silicate scale, and mixed scale, etc. The main components of carbonate scale are calcium carbonate and magnesium carbonate; the main components of sulfate scale and silicate scale are calcium sulfate and silicate compounds, respectively.

(2) Categorized by physical properties, there are two types: water scale that firmly adheres to the pot shell and tube walls, and sediment that is loosely textured and easy to detach.
Scale primarily forms due to the salts containing calcium and magnesium in the boiler feedwater, which precipitate and adhere to the metal surface upon heating. The thermal conductivity of scale is very low, approximately 2 to 5 times that of ordinary steel. Scale accumulating on the boiler's heat-absorbing surface significantly worsens the heat transfer efficiency and affects the boiler's performance; it can easily cause metal materials to burn due to localized overheating, even leading to tube burst accidents; it accelerates galvanic corrosion, causing pipeline scale corrosion, and hastens the damage to the heat-absorbing surface. Once scale forms, it should be removed promptly using mechanical or chemical methods.

Heat Exchanger and Refrigeration Equipment Cleaning – Choose GreenChem for Reliability
