Clean all types of heat exchangers, condensers, industrial pipelines, boilers, and steam power plant economizers. Greenclean Chemical Co. offers guaranteed cooperation.

Jining Green Chemical Technology Co., Ltd. (abbreviated as Jining Green Cleaning Co.) was established in 2010 and specializes in industrial heat exchange equipment cleaning. The company boasts comprehensive business philosophy and the capability to research and develop industrial cleaning technologies. We undertake cleaning services for industrial, private enterprise, and corporate chemical equipment, power station equipment, power plant condensers, boilers, and economizers. Additionally, we provide air conditioning cleaning, heat exchange equipment cleaning, mechanical and chemical equipment cleaning services; as well as cleaning and descaling for refrigeration and heating equipment.

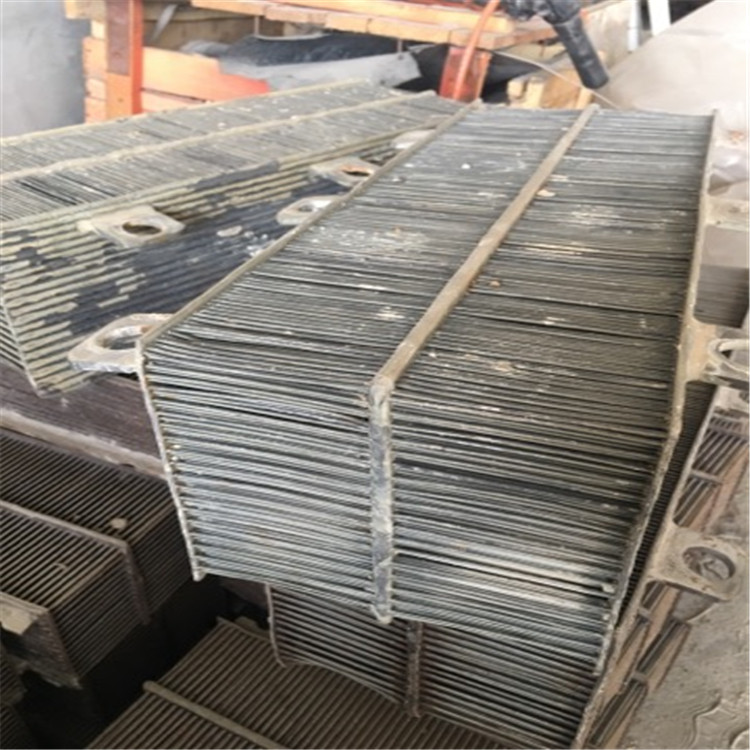

Boiler Air Preheater Cleaning in Juxian, Rizhao, Shandong

Jining Grean Cleaning Company stocks dozens of cleaning machines with various models ranging from 10mpa to 250mpa, and over a dozen chemical cleaning pump stations. Our primary services are to power plants, chemical factories, oil refineries, food processing plants, corporate entities, heating equipment, and more. The company also offers long-term industrial heat exchanger cleaning and design solutions to clients in the industry.

Boiler Air Preheater Cleaning, Jun County, Rizhao, Shandong

Our company has newly acquired domestic cleaning machines and imported cleaning equipment. We have hired experienced technical specialists in the cleaning industry to standardize and normalize the cleaning of heat exchange equipment.

Chemical cleaning descaling process:

Recirculating Closed Loop Cleaning

Recirculating cleaning utilizes two existing parallel ash removal pipelines to form a loop, creating a circulation system with the cleaning pump station. A certain concentration of acidic solution is added, which circulates within the ash water pipes for cleaning. As the acid washing reduces to a certain level, the acidic solution is continuously replenished. For short-distance single ash water pipelines, if conditions permit, a temporary pipeline can be laid to form a recirculation loop for cleaning. This process must be carried out during shutdown and is complex, with higher costs.

Open path cleaning

No two gray pipes should form a loop during cleaning; only single-pipe open circuit cleaning is allowed. The method involves connecting one end of the gray pipe to the cleaning unit, continuously preparing a certain concentration of cleaning solution in the mixing tank, and then injecting it into the gray pipe continuously or intermittently. This process requires the addition of cleaning equipment during shutdown, resulting in higher costs.

Continuous Operation Cleaning

The process involves continuously injecting a certain amount of acidic solution while the ash pipe is operating normally without interruption, simultaneously introducing a certain amount of ash-pipe running cleaning inhibitor and pipeline descaling agent, and performing open-circuit cleaning. The primary function of the cleaning aids is to promote the reaction between the acidic solution and the ash scale at a certain concentration and flow rate, while also increasing its solubility in water, reducing the occurrence of air blockages, and ensuring the quality of ash pipe cleaning.

Boiler Air Preheater Cleaning, Jiu County, Rizhao, Shandong

The procedure is as follows: Prior to cleaning, first estimate the required acid amount based on the total scale in the pipeline. Then, calculate the acid addition rate and the flow rate for the ash pipeline cleaning inhibitor and pipeline stripping agent based on the sludge water flow rate and acidity. During cleaning, collect samples at the ash pipeline's front sampling point every 30 minutes to test acidity and strictly control it by adjusting the acid flow rate. In the later stage of cleaning, collect samples at the ash pipeline's end every 15 minutes to test the pH value. When the pH value reaches a certain level and remains unchanged for 30 minutes, the cleaning can be deemed complete.
Boiler Air Preheater Cleaning, Juxian, Rizhao, Shandong

2. High-pressure water jet cleaning equipment
High-pressure water jet cleaning offers advantages such as high efficiency, low cost, non-damaging to workpieces, environmental friendliness, ease of operation, and safety.
The advantages of high-pressure water technology are as follows.

Boiler Air Preheater Cleaning, Juxian, Yuxi, Shandong

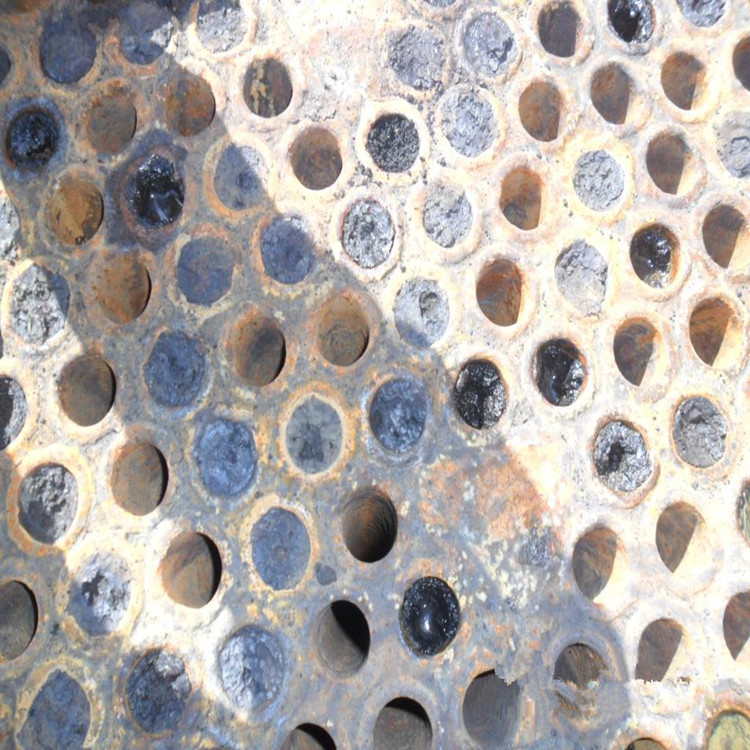

(1) Excellent Cleaning Quality - The high-pressure water jet cleaning of pipeline and heat exchanger bores can thoroughly remove scale and blockages inside, revealing the metal substrate. The high-pressure water jet, with its immense energy and supersonic speed, can completely destroy hard scale and blockages without causing any damage to the metal.

High-pressure water cleaning will not damage the base material to be cleaned, as the pressure is less than the compressive strength grade of the metal.

(2) Fast Cleaning Speed: Due to the combined effects of jet washing, wedge splitting, shearing, and grinding, scale can be quickly broken and removed, making the cleaning process several to ten times faster than traditional chemical methods, sandblasting, simple mechanical, and manual methods.

Components cleaned with high-pressure water jetting do not require secondary cleaning; however, after chemical cleaning, the surface must be rinsed with clean water.

(3) Non-polluting: As high-pressure water jet cleaning uses pure water as the medium, it does not generate a large amount of dust like sandblasting, shot blasting, or simple mechanical cleaning, which can pollute the atmosphere and harm health. It also does not produce a large amount of waste liquid like some chemical cleaning methods, which can pollute rivers, soil, and water quality. The water jet, using pure water, is odorless, tasteless, and non-toxic. After atomization, it can also reduce the dust concentration in the work area, lowering atmospheric dust from 80mg/m³ using other methods to below the national safety standards, thus causing no pollution.

Boiler Air Preheater Cleaning in Jiu County, Rizhao, Shandong

3. Pipe Scale

(1) Classified by chemical composition, it can be categorized into carbonate scale, sulfate scale, silicate scale, and mixed scale, etc. The main components of carbonate scale are calcium carbonate and magnesium carbonate; the main components of sulfate scale and silicate scale are calcium sulfate and silicate compounds, respectively; mixed scale is usually a mixture of the above three types.
Boiler air preheater cleaning in Juxian, Rizhao, Shandong

(2) Categorized by physical properties, there are two types: hard water scale that firmly adheres to the pot shell and tube walls, and loose sediment that is easy to detach.
Lime scale primarily forms due to the salts like calcium and magnesium in the boiler feed water, which precipitate and adhere to the metal surface upon heating. Lime scale has a very low thermal conductivity, approximately 2 to 5 times that of ordinary steel. When lime scale accumulates on the boiler's heating surface, it significantly worsens the heat transfer efficiency and affects the boiler's performance; it can easily cause metal materials to burn due to localized overheating, potentially leading to pipe explosion accidents; it also accelerates galvanic corrosion, causing pipeline lime scale corrosion and speeding up the damage to the heating surface. Once lime scale forms, it should be promptly removed using mechanical or chemical methods.

Heat Exchanger & Refrigeration Equipment Cleaning - Choose Green Chemical for Reliability
