Clean various heat exchangers, condensers, industrial pipelines, boilers, and steam power plant condensers — GlanChem cooperation is guaranteed.

Jining Green Chemical Technology Co., Ltd. (简称 Jining Green Cleaning Co.) was established in 2010 and is a professional company specializing in the cleaning of various industrial heat exchange equipment. The company has comprehensive business philosophy and the capability to develop industrial equipment cleaning technologies. We undertake cleaning services for industrial, private enterprise, and corporate chemical equipment, power station equipment, power plant condensers, boilers, and boiler air preheaters; as well as air conditioning and heat exchange equipment cleaning. We also handle the cleaning and descaling of refrigeration and heating equipment.

Jining Grean Cleaning Co. has dozens of cleaning machines ranging from 10mpa to 250mpa and over a dozen chemical cleaning pump stations. Our main services are provided to power plants, chemical factories, oil refineries, food processing plants, corporate entities, heating equipment, and more. The company also offers long-term industrial heat exchanger cleaning and design solutions to industry clients.

Our company has newly acquired domestic cleaning machines and imported cleaning equipment. We have hired experienced technical specialists in the cleaning industry to achieve standardized and standardized cleaning of heat exchange equipment.

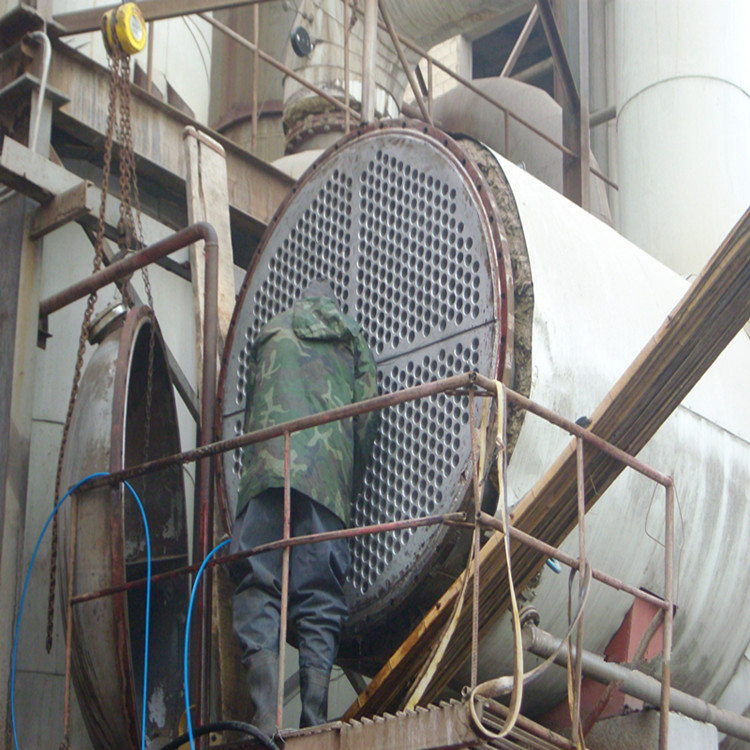

Evaporator Cleaning in Dongying, Shandong

Chemical cleaning descaling process:

Recirculating Closed Loop Cleaning

Recirculating cleaning utilizes two existing parallel ash pipeline sections to form a loop, creating a recirculation system with the cleaning pump station. A solution of a certain acidity concentration is added, which circulates through the ash water pipes for cleaning. As the acid washing reduces to a certain level, the acid solution is continuously replenished. For short-distance single ash water pipelines, if conditions permit, a temporary pipeline can be laid to form a recirculation loop for cleaning. This process must be carried out while the system is shut down, and it is complex and costly.

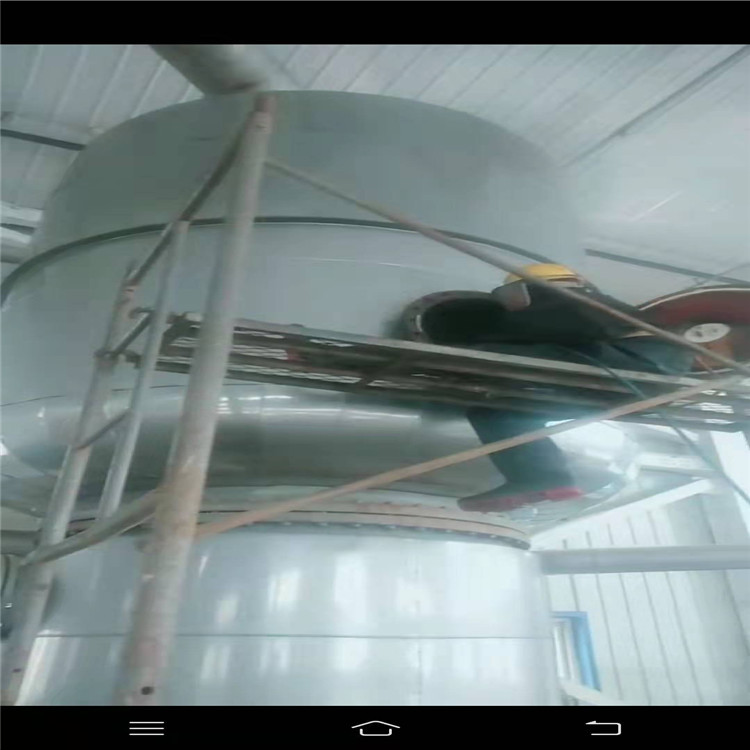

Evaporator Cleaning in Dongying River Estuary, Shandong

Pilot cleaning

No two gray pipes can form a loop during cleaning; only a single gray pipe should be used for open circuit cleaning. The method involves connecting one end of the gray pipe to the cleaning unit, continuously preparing a certain concentration of cleaning solution in the mixing tank, and then continuously or intermittently injecting it into the gray pipe. This process requires adding cleaning equipment during shutdown, which increases costs.

Continuous cleaning without downtime

This process involves continuously injecting a specific quantity of acidic fluid while running the ash conveying pipe to add a certain amount of ash conveying pipeline cleaning inhibitor and pipeline cleaning stripping agent, and conducting open-circuit cleaning. The main function of the cleaning additive is to promote the reaction between the acidic fluid and ash deposits within a certain concentration and flow rate of the acidic fluid, while increasing its solubility in water and reducing the generation of gas resistance, ensuring the quality of ash pipe cleaning.

The procedure is as follows: Before cleaning, first estimate the required acid amount based on the total scale in the pipeline. Then, calculate the acid addition rate and the flow rate of the descaling agent and pipeline cleaning agent based on the sludge water flow rate and acidity. During cleaning, take a sample at the front end of the sludge pipe every 30 minutes to test the acidity and strictly control it by adjusting the acid flow rate. In the later stage of cleaning, test the pH value at the end of the sludge pipe every 15 minutes. When the pH value reaches a certain level and remains unchanged for 30 minutes, the cleaning can be considered complete.
Evaporator Cleaning in Dongying, Shandong

2. High-pressure water jet cleaning machinery:
High-pressure water jetting for cleaning offers advantages such as high efficiency, low cost, non-damaging to workpieces, environmental friendliness, ease of operation, and safety.
High-pressure water technology boasts the following advantages.

(1) Excellent Cleaning Quality - High-pressure water jet cleaning of pipe and heat exchanger bores can thoroughly remove scale and blockages inside, revealing the metal surface. The high-pressure water jet, with its immense energy and supersonic speed, is capable of completely destroying tough scale and blockages without causing any damage to the metal.

High-pressure water cleaning will not damage the substrate being cleaned, as the pressure is less than the compressive strength grade of the metal.
Evaporator Cleaning - Dongying River Estuary, Shandong

(2) Fast Cleaning Speed - Due to the combined abrasive actions of water jetting, wedging, shearing, and grinding, scaling can be quickly broken and removed, making the cleaning process several to over a dozen times faster than traditional chemical methods, sandblasting, simple mechanical, and manual methods.

Additionally, parts cleaned with high-pressure water jetting do not require secondary cleaning; however, after chemical cleaning, the surface chemical agents must be rinsed off with clean water.
Evaporator Cleaning in Dongying, Shandong

(3) Non-pollution Environment: Since high-pressure water jet cleaning uses clean water as the medium, it does not generate large amounts of dust like sandblasting or simple mechanical cleaning, which can pollute the air and harm health. Nor does it produce large amounts of waste liquid like some chemical cleaning methods, which can pollute rivers, soil, and water quality. The water jet, using clean water as the medium, is odorless, tasteless, and non-toxic. After atomization, it can also reduce the dust concentration in the work area, lowering atmospheric dust from 80mg/m³ with other methods to below the national safety standards, thus causing no pollution.

Evaporator Cleaning in Dongying, Shandong

3. Pipe Scale

(1) Classified by chemical composition, they can be categorized into carbonate scale, sulfate scale, silicate scale, and mixed scale. The main components of carbonate scale are calcium carbonate and magnesium carbonate; the main components of sulfate scale and silicate scale are calcium sulfate and silicate compounds, respectively; mixed scale is usually a mixture of the above three types of scales.
Evaporator Cleaning in Dongying, Shandong

(2) Categorized by physical properties, there are two types: scale that firmly adheres to the pot shell and tube walls, and sediment that is loosely textured and easily detached.
Lime scale primarily forms due to the salts like calcium and magnesium in the boiler feed water, which precipitate and adhere to the metal surface upon heating. Lime scale has a very low thermal conductivity, about 2 to 5 times that of ordinary steel. When lime scale accumulates on the boiler's heating surface, it significantly worsens heat transfer efficiency and affects the boiler's performance; it can also easily damage metal materials due to localized overheating, potentially leading to pipe explosion accidents; it accelerates galvanic corrosion, causing pipeline lime scale corrosion, and speeding up the deterioration of the heating surface. Once lime scale forms, it should be promptly removed using mechanical or chemical methods.

Heat Exchanger and Refrigeration Equipment Cleaning - Choose GreenChem for Confidence
