Clean various heat exchangers, condensers, industrial pipelines, boilers, and steam power plant condensers. Greentech Chemicals offers guaranteed cooperation.

Jining Green Chemical Technology Co., Ltd. (简称 Jining Green Cleaning Co.) was established in 2010 and specializes in the cleaning of various industrial heat exchange equipment. The company has comprehensive business philosophy and the capability to research and develop industrial cleaning technologies. We undertake cleaning services for industrial, private enterprise, and corporate chemical equipment, power plant equipment, condensers, boilers, and economizers. We also provide air conditioning and heat exchange equipment cleaning, as well as cleaning for machinery and chemical equipment. Additionally, we handle the cleaning and descaling of refrigeration and heating equipment.

Jining Green Cleaning Co. offers dozens of cleaning machines ranging from 10mpa to 250mpa, and over a dozen chemical cleaning pump stations. Our primary services are to power plants, chemical factories, oil refineries, food processing plants, corporate entities, heating equipment, and more. The company also provides long-term industrial heat exchanger cleaning and design solutions to industry clients.

Our company has newly acquired domestic cleaning machines and imported cleaning equipment. We have hired experienced technical specialists in the cleaning industry to achieve standardized and standardized cleaning of heat exchange equipment.

Chemical cleaning descaling process:

Recirculating Closed Loop Cleaning

Recirculating cleaning utilizes two existing parallel ash piping lines to form a loop, creating a recirculation system with the cleaning pump station. A certain concentration of acidic solution is added, which circulates through the ash water pipes for cleaning. As the acid washing decreases to a certain level, the acidic solution is continuously replenished. For short-distance single ash water pipelines, if conditions permit, a temporary pipeline can be laid to form a recirculation loop for cleaning. This process must be carried out while the system is shut down, and it is complex and costly.

Open road cleaning

No two gray pipes should form a loop during cleaning; only a single gray pipe should be used for open-path cleaning. The method involves connecting one end of the gray pipe to the cleaning unit and continuously preparing a specific concentration of cleaning solution in the mixing tank, which is then injected into the gray pipe continuously or intermittently. This process requires the addition of cleaning equipment during shutdown, resulting in higher costs.

Continuous cleaning without shutdown

This process involves continuously injecting a specific quantity of acidic solution while also introducing a certain amount of ash pipeline operation cleaning inhibitor and pipeline cleaning descaler. It performs an open-circuit cleaning. The main function of the cleaning aid is to promote the reaction between the acidic solution and ash scale at a certain concentration and flow rate, while also enhancing its solubility in water, reducing airlock formation, and ensuring the quality of ash pipeline cleaning.

The procedure is as follows: Before cleaning, first estimate the required acid amount based on the total scale in the pipeline. Then, calculate the acid addition rate and the flow rate of the descaling agent and pipeline cleaning agent by considering the sludge water flow rate and acidity. During cleaning, take a sample at the front end of the sludge pipe every 30 minutes to test the acidity and strictly control it by adjusting the acid flow rate. In the later stage of cleaning, take a sample at the end of the sludge pipe every 15 minutes to test the pH value. When the pH value reaches a certain level and remains unchanged for 30 minutes, the cleaning can be deemed complete.

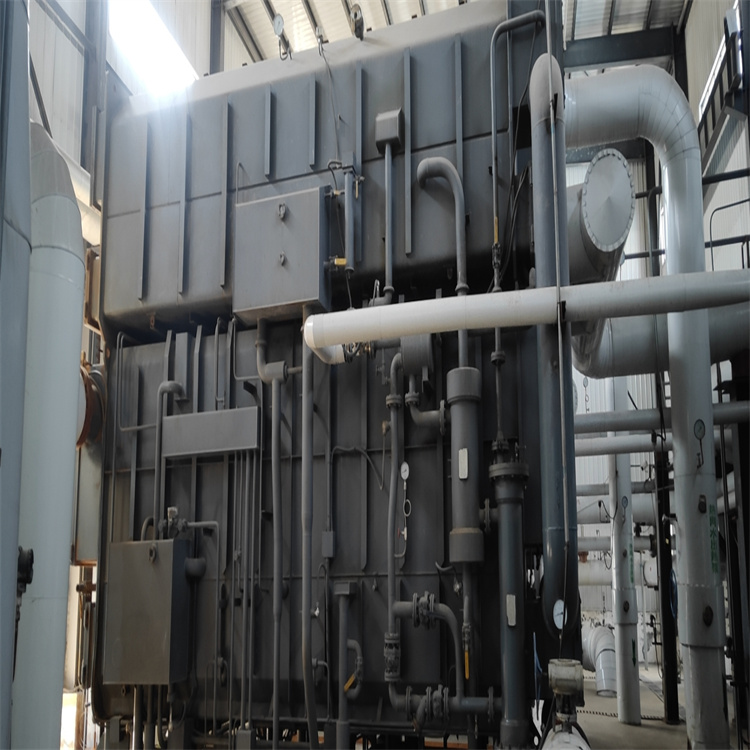

Electrostatic precipitator cleaning in Shandong Dandong Kenli

2. High-pressure water jet cleaning machinery
High-pressure water jet cleaning offers advantages such as high efficiency, low cost, non-damaging to workpieces, environmental protection, ease of operation, and safety.
High-pressure water technology boasts the following advantages.

(1) Excellent Cleaning Quality: The high-pressure water jet cleaning for pipes and heat exchanger bores can completely remove all scale and blockages inside, revealing the metal substrate. With its immense energy and ultra-sonic speed, the high-pressure water jet is fully capable of destroying hard scale and blockages, yet it has no damaging effect on the metal.

Since the pressure of high-pressure water is less than the compressive strength grade of metal, high-pressure cleaning will not damage the base material being cleaned.
Electrostatic precipitator cleaning in Shandong Dongying Kenli

(2) Rapid Cleaning Speed: Due to the combined actions of water jet abrasion, splitting, shearing, and grinding, scale can be quickly broken and removed, making the cleaning speed several to ten times faster than traditional chemical methods, sandblasting and shot peening techniques, simple mechanical, and manual methods.

Additionally, parts cleaned with high-pressure water jetting do not require secondary cleaning; however, after chemical cleaning, the surface must be washed off with clear water.
Electrostatic Precipitator Cleaning in Shandong Dandong Kenli

(3) No Environmental Pollution: Since high-pressure water jet cleaning uses pure water as the medium, it does not generate a large amount of dust like sandblasting, shot blasting, or simple mechanical cleaning, which can pollute the atmosphere and harm health. It also does not produce a large volume of waste liquid like some chemical cleaning methods, which can contaminate rivers, soil, and water quality. The water jet cleaning with pure water as the medium is odorless, tasteless, and non-toxic. After atomization, the emitted jet can also reduce the dust concentration in the work area, lowering atmospheric dust from 80mg/m³ with other methods to below the national safety standards, thus causing no pollution.

3. Pipeline Water

(1) Categorized by chemical composition, they include carbonate scale, sulfate scale, silicate scale, and mixed scale, among others. The main components of carbonate scale are calcium carbonate and magnesium carbonate; the primary components of sulfate scale and silicate scale are calcium sulfate and silicate compounds, respectively; mixed scale is typically a mixture of the aforementioned three types.
Electrostatic precipitator cleaning in Dongying Kenli, Shandong

(2) Categorized by physical properties, there are two types: scale that is firmly adhered to the pot shell and tube walls, and sediment that is loosely textured and easily detached.
Lime scale primarily forms due to the salts like calcium and magnesium in the boiler feed water, which precipitate and adhere to the metal surface upon heating. Lime scale has a very low thermal conductivity, approximately 2 to 5 times less than that of ordinary steel. When lime scale accumulates on the boiler's heating surface, it significantly worsens the heat transfer efficiency and affects the boiler's performance; it can easily cause metal materials to burn due to localized overheating, potentially leading to pipe explosion accidents; it also accelerates galvanic corrosion, causing pipeline lime scale corrosion and speeding up the damage to the heating surface. Once lime scale forms, it should be promptly removed using mechanical or chemical methods.

Heat exchanger and refrigeration equipment cleaning, choose Green Chemical for reliability.
