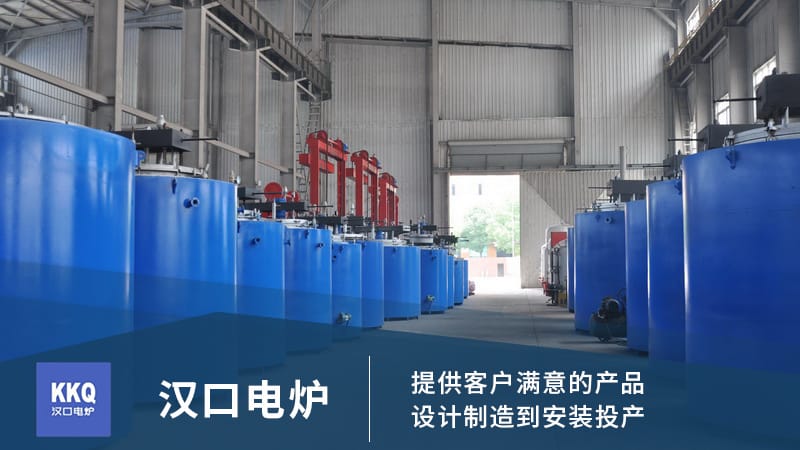

Carbon Nitriding Furnace Introduction

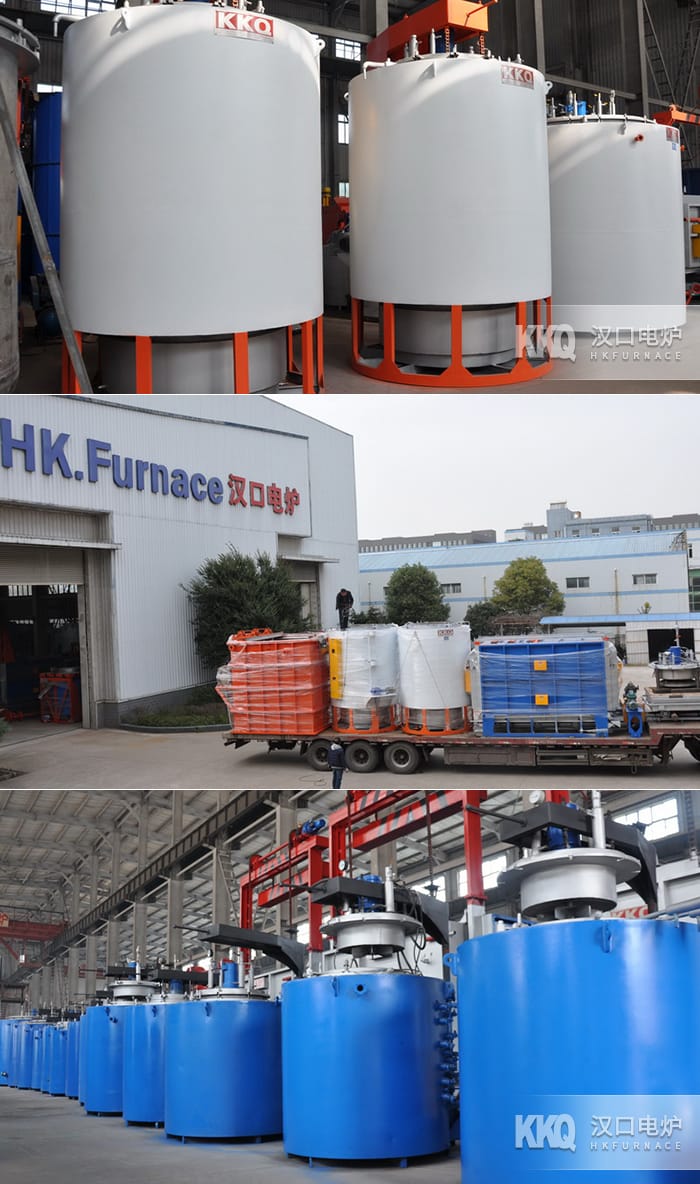

A carburizing furnace is a periodic operation industrial furnace, consisting of the furnace shell, furnace lining, lifting mechanism for the furnace cover, vacuum sealing fan, muffle pot, and heating elements.

The furnace shell is constructed from steel plates and shaped steel焊接 to form a circular shape, with an energy-saving refractory structure built using full-fiber high-pressure insulation modules.

High-temperature alloy resistance strip heating element, built-in stainless steel muffle pot in the furnace, vacuum-sealed fan high-pressure circulation mixing to ensure uniform atmosphere.

Equipped with a three-head stainless steel dripper on the lid, the furnace can be dripped with alcohol or other organic liquids, with adjustable flow rate.

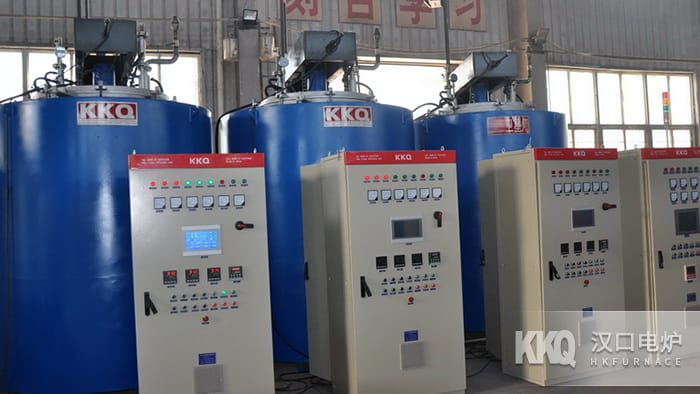

Available with carbon control instruments and automatic control systems, achieving real-time automatic control of the渗碳 furnace's temperature, time, and carbon potential atmosphere.

Carbonizing furnace applications

Supplies various steel mechanical components, curved glaze, gears, molds, and other metal parts for gas carburizing heat treatment.

Characteristics of carburizing furnace

Excellent thermal insulation properties

The furnace chamber is constructed with high-specification, high-purity ceramic fiber modules under high pressure, featuring high-pressure masonry and multiple anchoring, ensuring excellent thermal insulation performance in the lining manufacturing process.

Energy-saving and emission-reducing technology, all-fiber structure, quick heating-up inside the furnace. Low thermal conductivity, low heat capacity, excellent corrosion resistance.

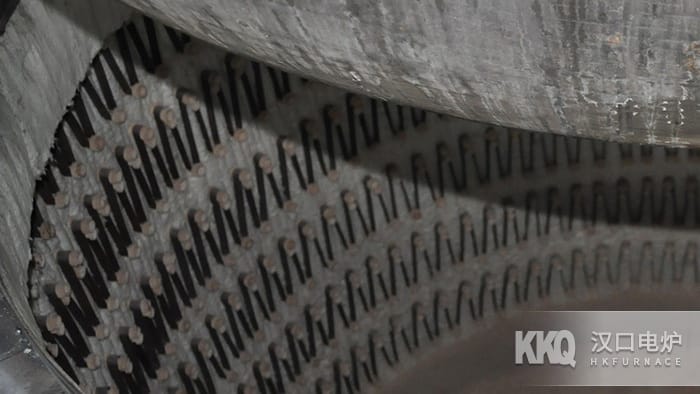

Expertly designed heating elements

The heating element is a specially formulated high-temperature alloy resistance strip, arranged rationally on five sides of the furnace according to even temperature design.

Excellent antioxidant properties, high-temperature resistance, and high load capacity. Heat up without cracking at super high temperatures, maintenance-free year-round.

Used in aerospace precision heat treatment and other applications, combined with a high-precision temperature control system, the uniformity of the furnace temperature achieves ±3-5°C.

High-temperature-resistant stainless steel muffle jar

High-temperature resistant stainless steel vacuum vessel, X-ray inspected, no gas leakage.

Ensure stable furnace pressure throughout the carburization process, maintaining shape after long-term use.

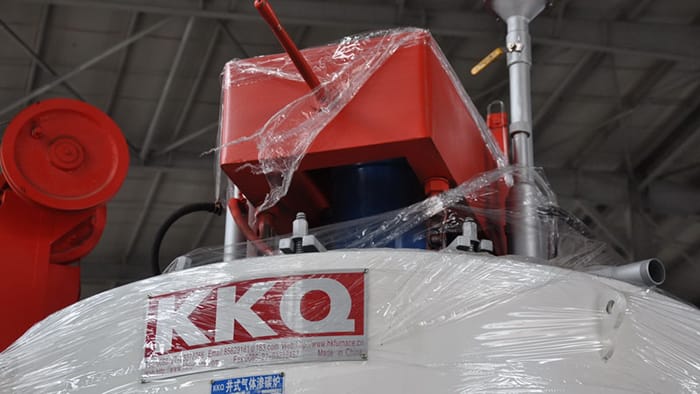

Good sealing, uniform carburizing atmosphere

From the furnace cover to the vacuum vessel, all exhaust and intake interfaces are tightly sealed.

Custom-designed vacuum-sealed fan for high-pressure hot air circulation within the furnace.

Multiple cooling configurations

Thick double water-cooled vacuum furnace lid, thermal insulation and durable, easy to customize various auxiliary equipment.

Install water-cooled jackets on the inlet and exhaust pipes for quick cooling of gases entering each pipe.

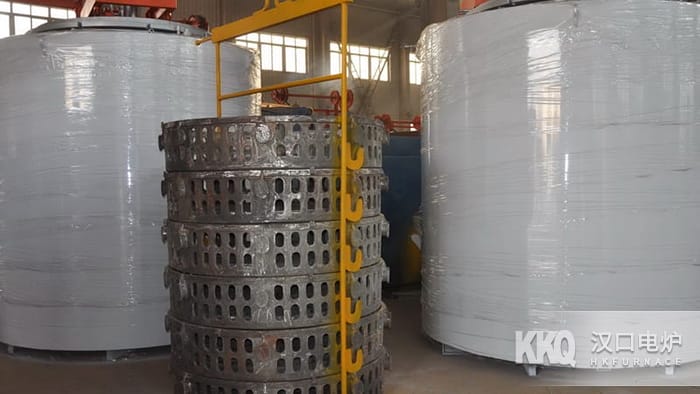

Specialty material boxes, enhance production efficiency

Design and manufacture various component crates for quick and easy loading and unloading.

Material frames, fixtures, and trays, a complete range of workholding tools available.

Low-temperature carburizing, reduced deformation

In addition to the commonly used gas carburizing furnaces and carbonitriding furnaces, Hankou Electric Furnace has independently developed vacuum low-temperature carburizing furnaces.

To minimize workpiece deformation during high-temperature carburization, the carburization process can be completed by reducing the temperature from the usual above 900°C to approximately 600°C.

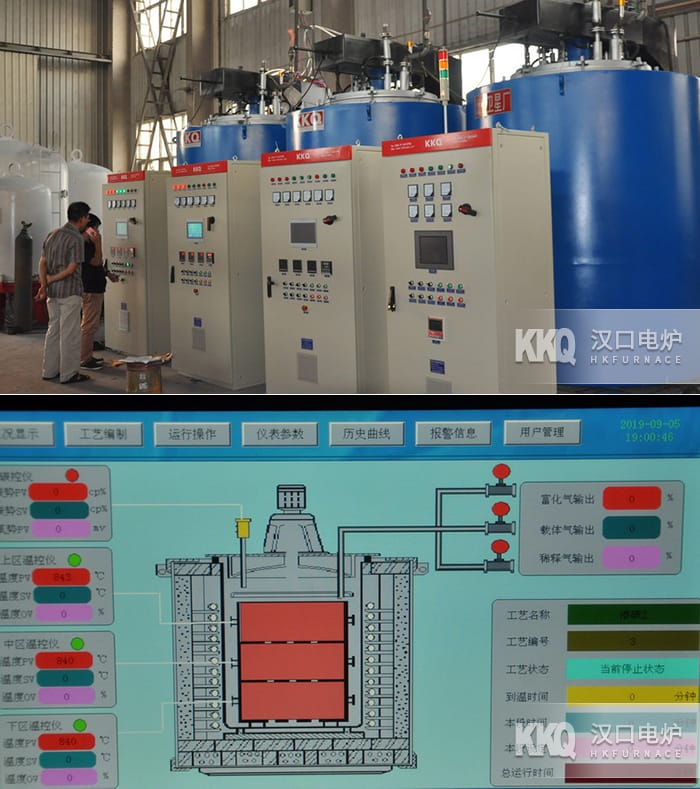

Precision automated temperature control

Hankou Electric Furnace Co., Ltd.'s independently developed touch screen graphical interface temperature control system, high-quality power adjustment module, and precise process curve control.

Automated process control ensures high-precision execution of the ideal carburization process curve in practical application, with temperature control accuracy of ±1°C.
