Salt Bath Furnace Introduction

A salt bath furnace is an industrial heat treatment equipment used for the thermal treatment of metal parts.

Generally refers to electrode salt bath furnaces, which consist of the outer shell, inner pot, salt tank, electrodes, thermocouple, and automatic temperature control cabinet.

The metal components are immersed in molten salt for heating. This salt liquid acts as a heat conduction medium, providing uniform and precise temperature control.

Salt Bath Furnace Applications

Equipment is available for heating metal components in molten salt or mixed salt solutions to perform heat treatments such as quenching, annealing, tempering, and oxidation-free heating.

Salt Bath Furnace Features

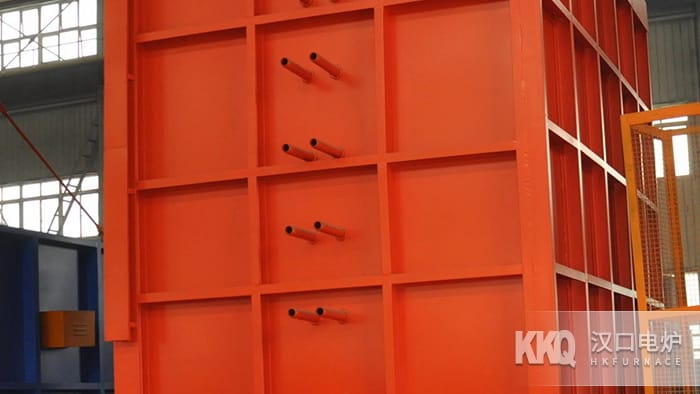

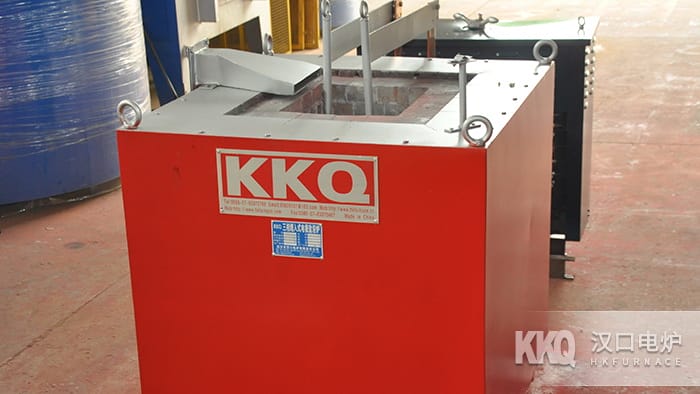

Robust and durable furnace body

The furnace shell is constructed from angle steel and steel plates, forming the outer shell structure of the furnace. Insulating refractory bricks are installed at the bottom of the furnace outer shell.

The furnace side features removable access panels with side openings.

Corrosion-resistant, long-lasting inner lining

All made with 8mm SUS304 stainless steel plate for the inner tank, which is resistant to high-temperature corrosion from salt bath, thereby extending the service life of the inner tank.

The inner liner can prevent molten salt from渗入 the insulation layer and the salt tank exterior. The side cover of the furnace can be removed, allowing the inner liner to be hoisted out from the top for easy installation and replacement.

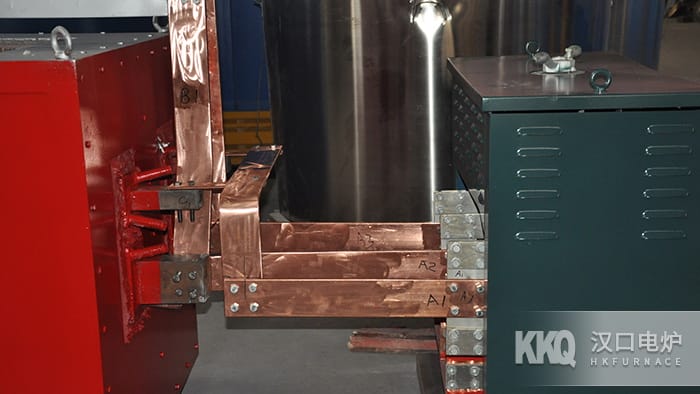

Energy-saving long-life electrode

Utilizing a two-group, four-electrode energy-saving technology, inserted from the side of the salt tank bottom, one face contacts the bath salt, with the other three faces embedded in refractory bricks.

The structure extends the service life of the electrodes, also prevents short-circuiting between the two electrodes, and achieves energy-saving effects.

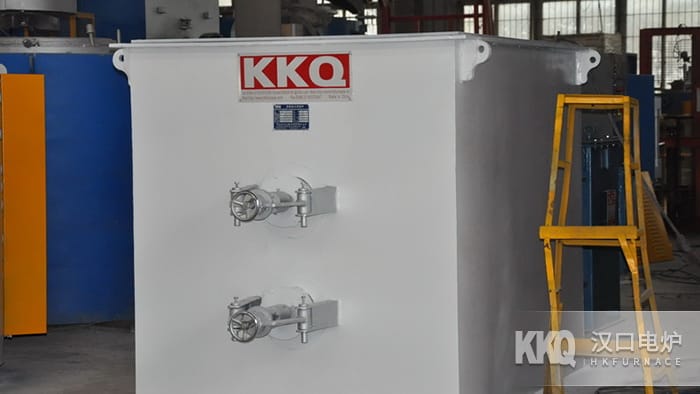

Innovative structure, salt leakage prevention

The electrodes outside the inner lining are equipped with a water-cooling jacket. As the molten salt flows outward along the electrodes, it solidifies upon contact with the jacket, thus preventing salt leakage.

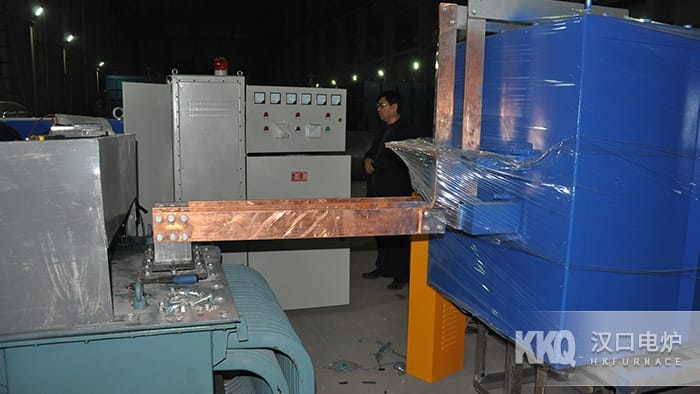

Startup Electrode

Spring-type starter electrode, transformer secondary power supply low-voltage startup, digital temperature controller with automatic temperature control cabinet.

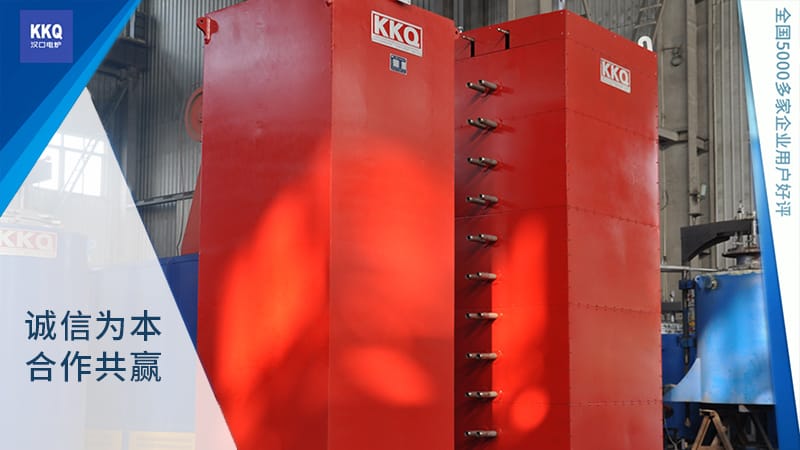

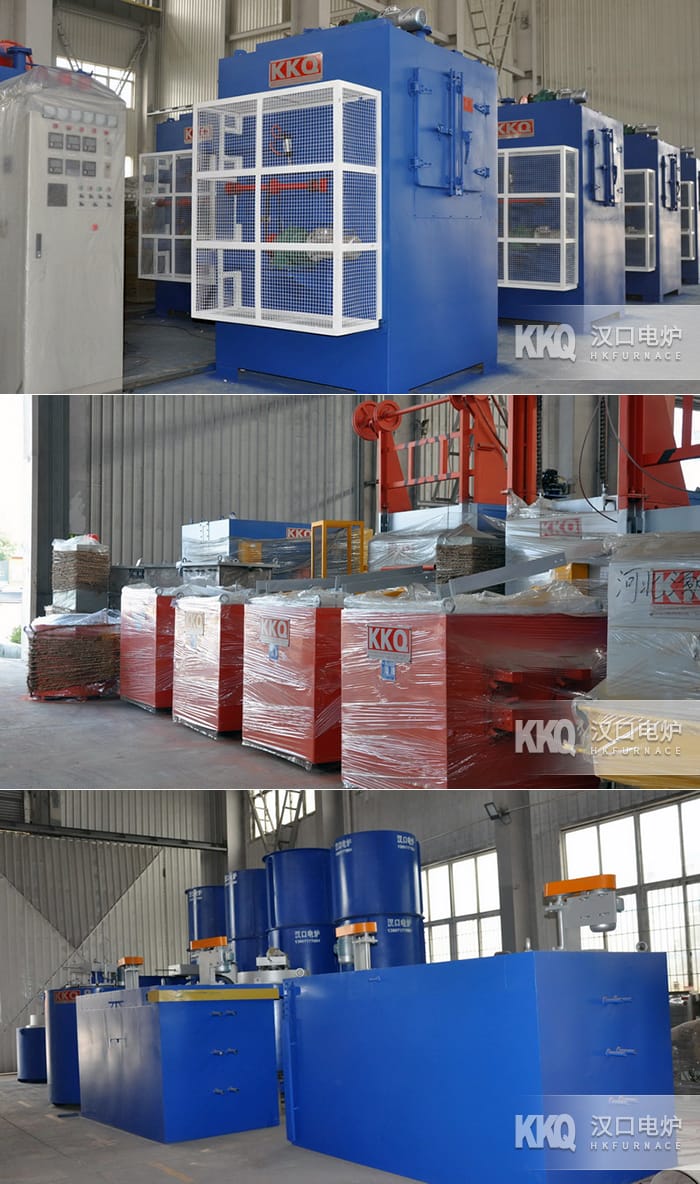

Customizable with various furnace structures to effectively meet customer needs.

Ion-exchange salt bath furnace, mobile tablet TV glass plate tempering.

1300℃ high-temperature electrode salt bath furnace, high-speed steel lathe tool quenching heat treatment.

Isothermal Quenching Nitric Salt Furnace, ADI Isothermal Quenching Process for automotive wheel hubs and other parts.

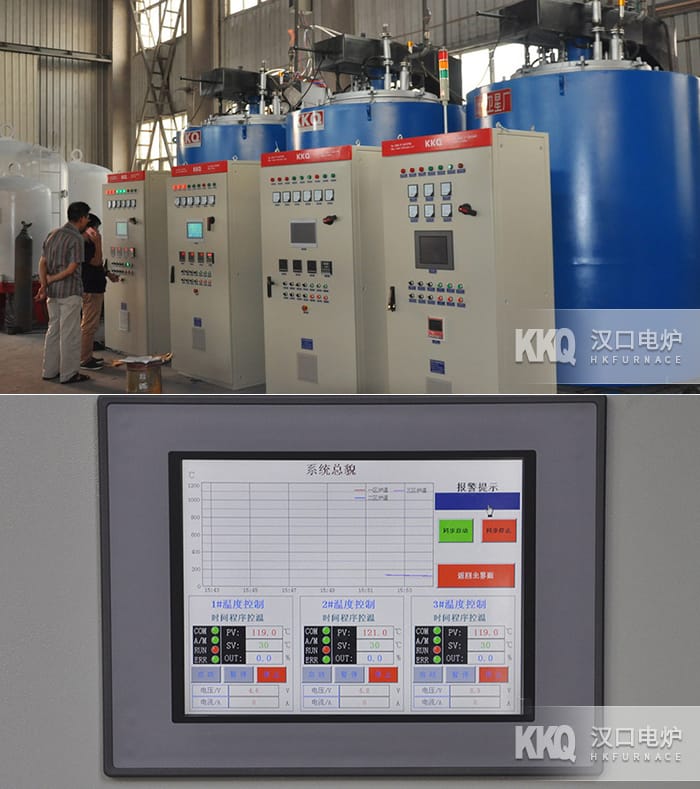

Precise temperature control automation

Hankou Electric Furnace Co., Ltd.'s independently developed touch screen graphical interface temperature control system, high-quality power adjustment module, and precise process curve control.

Automated process control ensures the ideal heat treatment process curve is executed with high precision in practical applications, with a temperature control accuracy of ±1°C.
