PP Cotton Filter Core Security FilterSpunbond filter cores are made from polypropylene ultra-fine fibers thermally bonded, forming a three-dimensional microporous structure with the fibers randomly arranged in space. The pore size along the flow direction of the filtrate is gradient, integrating surface, deep, and fine filtration into one, capable of retaining impurities of different particle sizes. The core precision range is 1-100μm, with a flux over 1.5 times that of equivalent precision peak-core filters. They can be equipped with different types of end caps and connectors to meet various engineering installation requirements. The end caps and overall structure connections of the cores are sealed and bonded with thermal melting adhesive. The core connectors are of three internationally standard types: 222 connectors, 226 connectors, and flat ends. Core lengths: 10, 20, 30, 40 inches. Sealing ring materials: nitrile rubber,三元乙丙橡胶,fluororubber; all products undergo strict comprehensive testing before shipment to ensure stable performance.

The LX Series Core Filters (abbreviated as LX Core Filter) utilize core filters as the filtering element, suitable for liquid precision filtration, removing trace fine impurities and bacteria. They offer high precision, efficiency, and large dirt-holding capacity. The LX Series filters are equipped with a variety of high-performance filters developed by Luda Filtration, capable of meeting various conventional and special precision filtration requirements. The bodies of all LX Series filters are made of high-quality stainless steel (304/316L), each filter being strictly selected and meticulously manufactured to ensure a seamless design with no cracks, excellent surface finish, and maximum corrosion resistance, meeting the quality standards to prevent bacterial contamination and strictly complying with GMP requirements. The food-grade design has no卫生 blind spots, can be fully disassembled for cleaning, and the inner surface is food-grade polished, suitable for the food and beverage industry.

PP Cotton Filter Core Security FilterProduct Features:

The working principle is a pressure filter device. Inside the sealed cylinder, different filter cores made of various materials are used as filtering elements according to different industry requirements, vertically mounted on filter plates. The feed liquid enters the cylinder through the feed port, flows through each filter core from the outside to the inside, and the tiny impurity particles are intercepted on the surface of the filter cores. The unique design structure ensures a highly efficient, energy-saving, sealed operation, and precise clarification solid-liquid separation process. The filter cores are easy to install and remove, and the filter筒 is convenient and simple to clean.

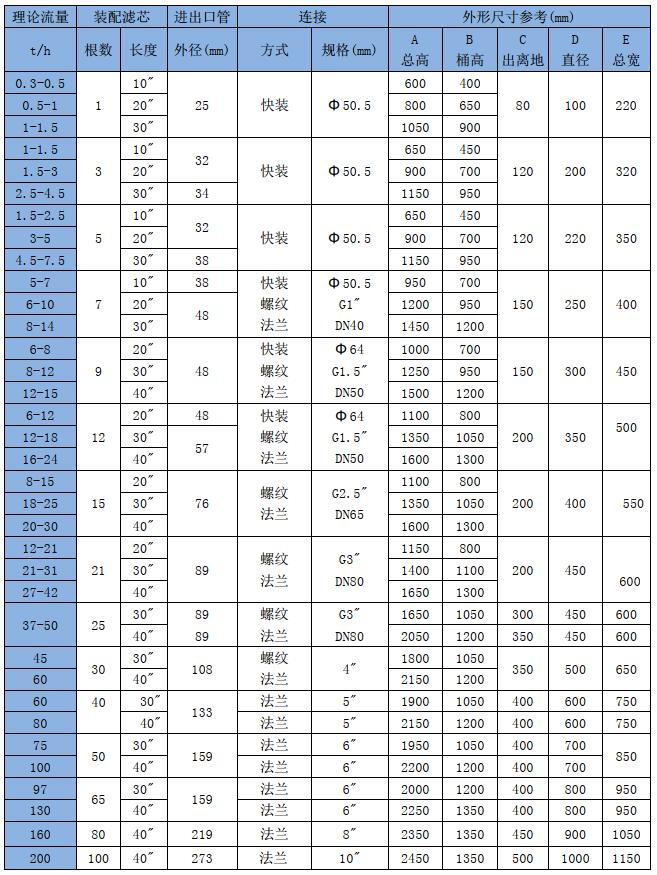

PP Cotton Filter Core Security FilterPrimary Selection Parameters:

Note: This is a brief introduction to the above series of products. Specific selection requires considering various factors. Please contact our technical department engineers for professional advice and detailed product information.

Applicable Industries: Fine Chemicals, Water Treatment Systems, Beverage Water, Potable Water, Ultra-Pure Water Equipment Security Systems, Oil Field Water Injection, Chemical Solutions, Electroplating Liquids, Papermaking, Automotive Industry, Electronics, Petrochemicals, Pharmaceuticals, Machining, Coatings, Food and Beverage, etc.
