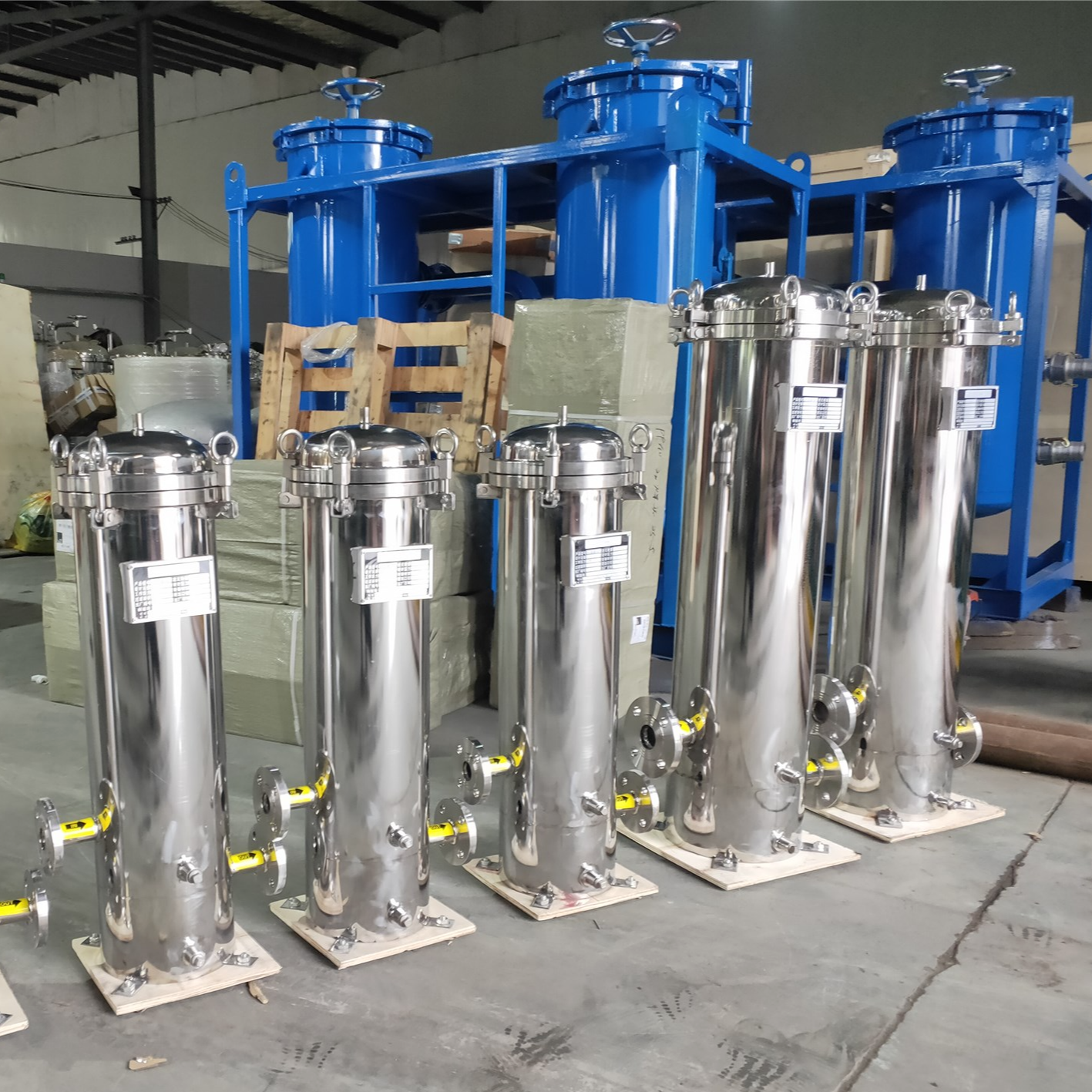

PP meltblown, wire burn, folded filter core security filterAlso known as a filter core liquid filter, it is a new type of multi-functional filter consisting of two parts: the filter and the filter core. It has been widely used in solid-liquid separation for industries such as water, oil, paint, and other liquid purification, as well as in mechanical, metallurgical, chemical, textile, dyeing, electroplating, pharmaceutical, and food industries.

The working principle involves the unfiltered liquid being pressed into the filter through the inlet, passing through the filter element from the outside in, and being filtered into clear liquid, which is then discharged through the outlet. Impurities are trapped in the deep layers and surface of the filter element, thereby achieving the purpose of filtration.

1. Raw Liquid Imports for Filtration

2. Clear Liquid Discharge Port

3. The size, structure, and filter element dimensions of the drain (sludge) outlet filter depend on the design flow rate and the medium characteristics of the filtered liquid. All filters are made of high-quality stainless steel, featuring reasonable design, small size, low cost, high flow rate, and easy maintenance, replacement of filter elements, and assembly. The filtration accuracy ranges from 0.5 to 100 um, with flow rates from 0.5 to 200 m3/h. Custom products of different sizes and specifications can also be produced according to customer requirements.

PP meltblown, wire burn, folded filter core security filterKey Technical Parameters:

Filter Precision: 0.1-100 um

Flow Rate: 0.5-200 m²/h

Working Pressure: 0.4-10 MPa

Operating Temperature: 80-120°C

Filter Cartridge Quantity: 1 core, 3 cores, 5 cores, 7 cores, 9 cores, 11 cores, 13 cores, 15 cores...up to 50 cores, etc.

Filter Core Length: 10mm, 20mm, 30mm, 40mm inches

Sealing Materials: Nitrile Rubber,三元乙丙橡胶SBR, Fluororubber;

PP meltblown, line burn, folded filter core security filterProduct Features:

The working principle is a pressure filter device. Inside a sealed cylinder, different material filter cores are used as filtering elements according to the needs of various industries, vertically mounted on filter plates. The raw liquid enters the cylinder through the feed port, flows through each filter core from outside to inside, and the tiny impurities are intercepted on the surface of the filter cores. The design structure is unique, making the entire process highly efficient, energy-saving, sealed operation, and precise clarification of solid-liquid separation. The filter cores are easy to install and remove, and the filter cylinder is convenient and simple to clean.

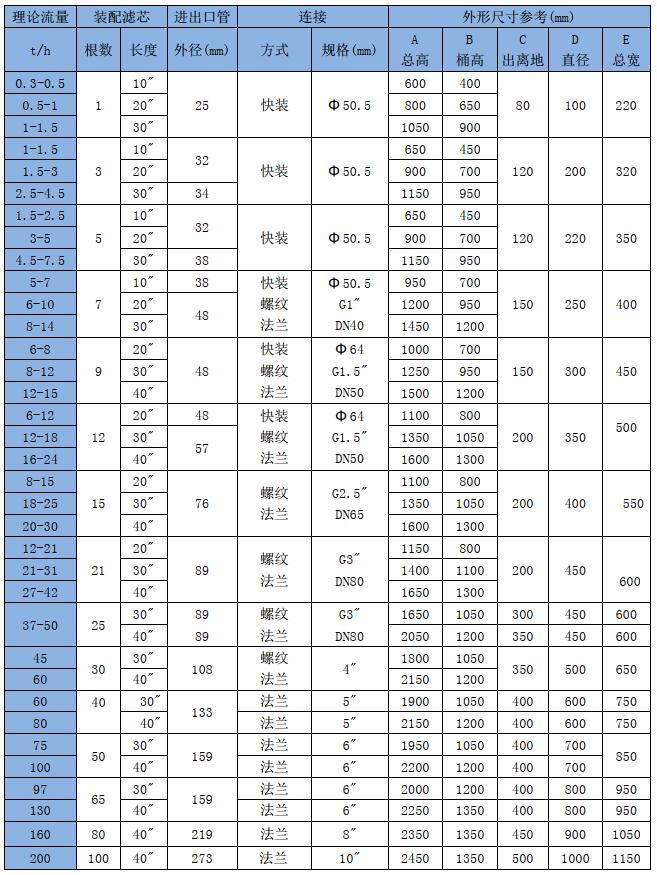

PP meltblown, wire burn, folded filter core security filterKey Selection Parameters:

Hint: This is a brief introduction to the above series of products. Specific selection requires considering various factors. Please contact our technical department engineers for professional advice and detailed product information.

Applicable Industries: Fine Chemicals, Water Treatment Systems, Beverage Water, Potable Water, Ultra-Pure Water Equipment Security Systems, Oil Field Water Injection, Chemical Solutions, Electroplating Liquids, Papermaking, Automotive Industry, Electronics, Petrochemicals, Pharmaceuticals, Machining, Coatings, Food & Beverage, etc.
