Clean various heat exchangers, condensers, industrial pipelines, boilers, and steam power plant economizers. Glan Chemical Co., Ltd. offers guaranteed cooperation.

Jining Green Chemical Technology Co., Ltd. (abbreviated to Jining Green Cleaning Co.) was established in 2010 and specializes in cleaning various industrial heat exchange equipment. The company boasts comprehensive business philosophy and the capability to research and develop industrial cleaning technologies. We undertake cleaning services for industrial, private enterprise, and corporate chemical equipment, power plant equipment, condensers in power plants, boilers, and economizers. We also provide air conditioning cleaning, heat exchange equipment cleaning, and mechanical and chemical equipment cleaning services. Additionally, we handle the cleaning of refrigeration and heating equipment for scale removal.
Sodium Ion Exchange Unit Manufacturer in Linyi, Zibo, Shandong

Jining Grean Cleaning Company stocks dozens of cleaning machines ranging from 10mpa to 250mpa, and over a dozen chemical cleaning pump stations. Our main services include power plants, chemical factories, oil refineries, food processing plants, corporate entities, and heating equipment, among others. The company also provides long-term industrial heat exchanger cleaning and solution design services to industry clients.

Our company has newly acquired domestic cleaning machines and imported cleaning equipment. We have hired experienced technical experts in the cleaning industry, ensuring the cleaning of heat exchange equipment is standardized and standardized.

Sodium Ion Exchange Resin Manufacturer, Shandong Zhoucun, Linyi

Chemical cleaning scale removal process:

Recirculating Closed Loop Cleaning

Recirculating cleaning utilizes two existing parallel ash removal pipelines to form a loop, creating a recirculation system with the cleaning pump station. A certain concentration of acidic solution is added, which circulates within the ash water pipeline for cleaning. As the acid washing reaches a certain level, the acidic solution is continuously replenished. For short-distance single ash water pipelines, if conditions permit, a temporary pipeline can be laid to create a recirculation loop for cleaning. This process must be carried out while the system is shut down, and it is complex and costly.
Sodium Ion Exchanger Manufacturer in Linyi, Zibo, Shandong

Open road cleaning

No two ash pipes can form a loop during cleaning; only a single ash pipe can be used for open circuit cleaning. The method involves connecting one end of the ash pipe to the cleaning device, continuously preparing a certain concentration of cleaning solution in the mixing tank, and then continuously or intermittently injecting it into the ash pipe. This process requires adding cleaning equipment during shutdown, which increases the cost.
Sodium Ion Exchanger Manufacturer in Linzi, Zibo, Shandong

Continuous operation cleaning

This process involves continuously injecting a certain amount of acidic solution while simultaneously introducing a specific quantity of ash-pipe running cleaning inhibitor and pipeline descaling agent. The system is opened up for cleaning. The primary function of the cleaning aid is to promote the reaction between the acidic solution and ash deposits at a certain concentration and flow rate, while also enhancing its solubility in water and reducing the occurrence of air blockages, ensuring the quality of ash-pipe cleaning.

The procedure is as follows: Before cleaning, estimate the required acid quantity based on the total scale in the pipeline. Then, calculate the acid addition rate and the flow rate of the descaling agent and pipeline cleaning agent by considering the sludge flow rate and acidity. During the cleaning process, take a sample at the front end of the sludge pipe every 30 minutes to test the acidity and strictly control it by adjusting the acid flow rate. In the later stage of cleaning, test the pH value at the end of the sludge pipe every 15 minutes. When the pH value reaches a certain level and remains unchanged for 30 minutes, the cleaning process can be deemed complete.

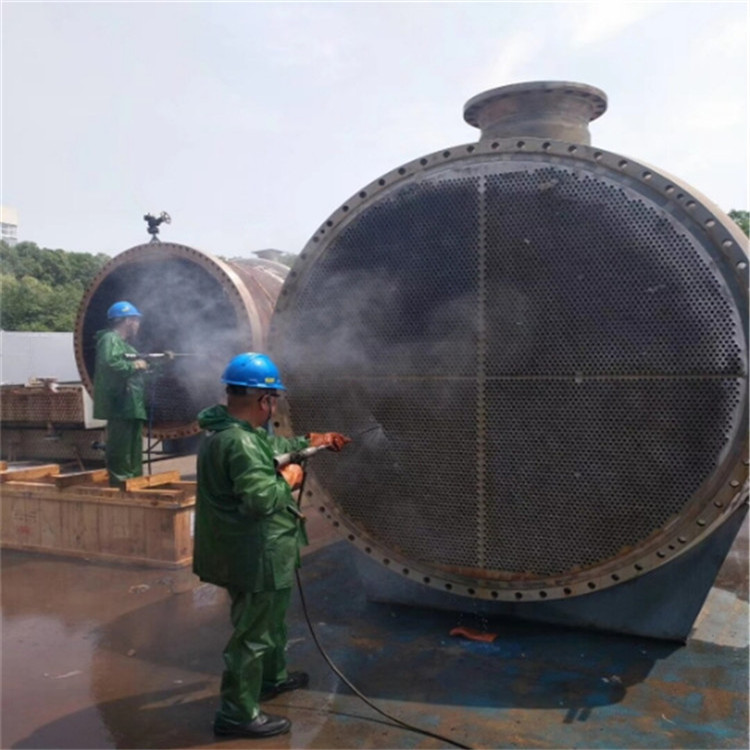

2. High-pressure water jet cleaning equipment
High-pressure water jet cleaning offers advantages such as high efficiency, low cost, non-damaging to workpieces, environmental protection, ease of operation, and safety.
High-pressure water technology boasts the following advantages.

(1) Excellent Cleaning Quality - The high-pressure water jet cleaning of pipe and heat exchanger bores can completely remove scale and blockages inside, revealing the metal substrate. With its immense energy and ultra-sonic movement, the high-pressure water jet is fully capable of destroying tough scale and blockages, yet it has no damaging effect on metal.

Since the pressure of the high-pressure water is less than the pressure resistance grade of the metal, high-pressure cleaning will not damage the cleaned substrate.
Sodium Ion Exchanger Manufacturer in Linzi, Zibo, Shandong

(2) Fast Cleaning Speed: Due to the combined effects of jet washing, wedge splitting, shearing, and abrasive cutting, scale can be quickly broken and removed, making the cleaning process several to ten times faster than traditional chemical methods, sandblasting, simple mechanical, and manual methods.

Components cleaned with high-pressure water jetting do not require secondary cleaning; however, after chemical cleaning, the surface needs to be washed off with clean water.
Sodium Ion Exchanger Manufacturer, Shandong Jining, Linyi

(3) Non-Environmental Pollution: As high-pressure water jet cleaning uses pure water as the medium, it does not produce a large amount of dust like sandblasting, shot blasting, or simple mechanical cleaning, which can pollute the atmosphere and harm health. It also does not generate a significant amount of waste liquid like some chemical cleaning methods, which can contaminate rivers, soil, and water quality. The water jet cleaning with pure water as the medium is odorless, tasteless, and non-toxic. After atomization, it can also reduce the dust concentration in the work area, lowering atmospheric dust from 80mg/m³ using other methods to below the national safety standards. Therefore, it does not cause any pollution.

Sodium Ion Exchanger Manufacturer in Linyi, Zibo, Shandong

Pipe Scale

(1) Classified by chemical composition, they can be categorized into carbonate scale, sulfate scale, silicate scale, and mixed scale, etc. The main components of carbonate scale are calcium carbonate and magnesium carbonate; the main components of sulfate scale and silicate scale are calcium sulfate and silicate compounds, respectively; mixed scale is usually a mixture of the above three types of scales.
Sodium Ion Exchanger Manufacturer in Linyi, Zibo, Shandong

(2) Categorized by physical properties, there are two types: water scale that is firmly adhered to the pot shell and tube walls, and sediment that is loosely textured and easy to dislodge.
Lime scale primarily forms due to the salts, such as calcium and magnesium, present in the boiler feedwater that precipitate and adhere to the metal surface upon heating. Lime scale has a very low thermal conductivity, approximately 2 to 5 times less than that of ordinary steel. When lime scale accumulates on the boiler's heat transfer surface, it severely degrades heat transfer efficiency, affects boiler performance; it can also easily damage metal materials due to localized overheating, potentially leading to pipe explosion accidents; it accelerates galvanic corrosion, causing pipeline lime scale corrosion, and speeds up the deterioration of the heat transfer surface. Once lime scale forms, it should be promptly removed using mechanical or chemical methods.

Heat Exchanger & Refrigeration Equipment Cleaning - Choose GreenChem for Confidence
