Clean all types of heat exchangers, condensers, industrial pipelines, boilers, and power plant steam condensers - Gelin Chemicals guarantees cooperation.

Jining Grean Chemical Technology Co., Ltd. (abbreviated to Jining Grean Cleaning Co.) was established in 2010 and is a specialized company in cleaning various industrial heat exchange equipment. The company possesses comprehensive business philosophy and the capability to develop industrial cleaning technologies. We undertake cleaning services for industrial, private enterprise, and corporate chemical equipment, power station equipment, power plant condensers, boilers, and boiler air preheaters; as well as air conditioning cleaning, heat exchange equipment cleaning, and mechanical and chemical equipment cleaning. We also handle cleaning of refrigeration equipment and heating equipment for scale removal.

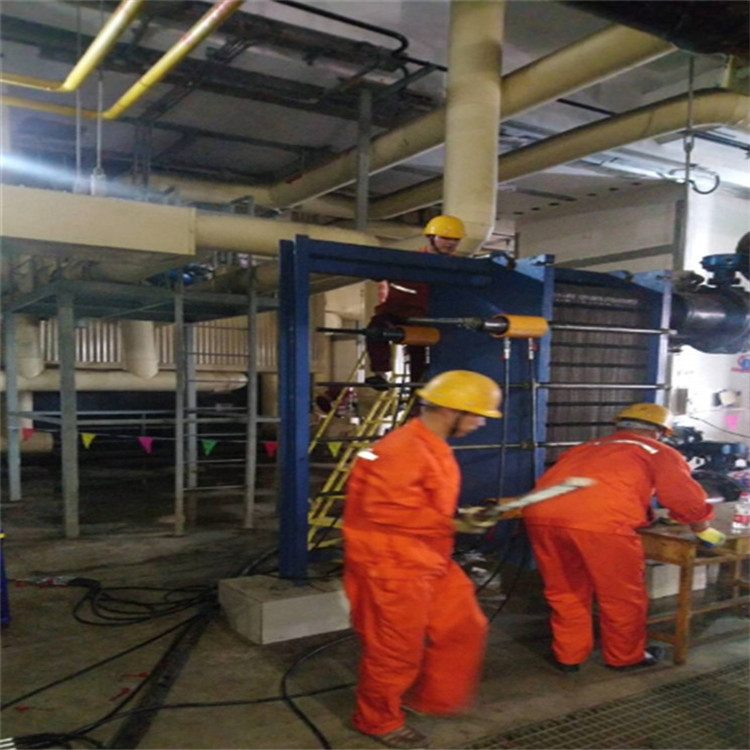

Plate Heat Exchanger Cleaning in Taierzhuang, Zaozhuang, Shandong

Jining Green Clean Company stocks dozens of cleaning machines in various models ranging from 10mpa to 250mpa, as well as over a dozen chemical cleaning pump stations. Our main services are provided to power plants, chemical factories, oil refineries, food processing plants, corporate entities, heating equipment, and more. The company also offers long-term industrial heat exchanger cleaning and design solutions to clients in the industry.

Our company has newly acquired domestic cleaning machines and imported cleaning equipment. We have hired experienced technical specialists in the cleaning industry to achieve standardized and standardized cleaning of heat exchange equipment.

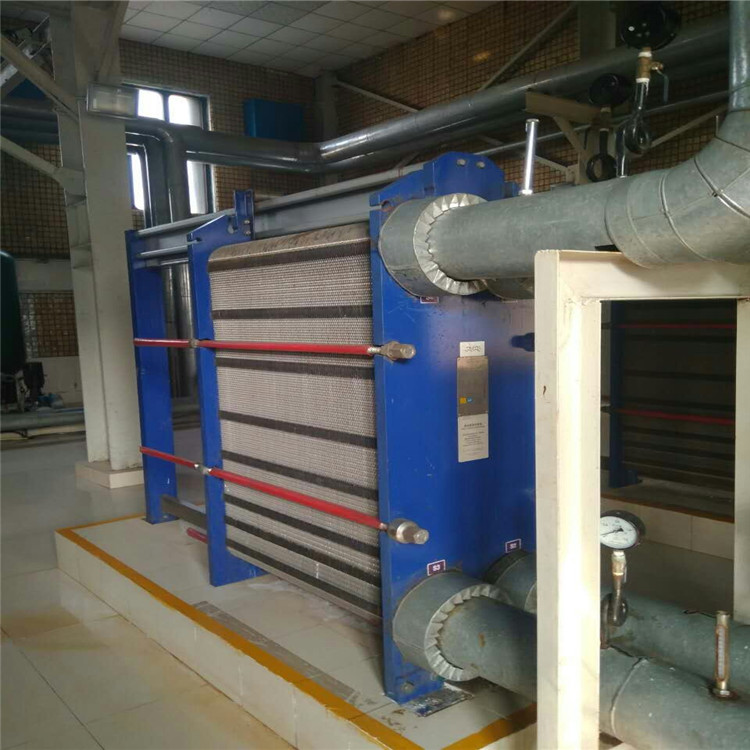

Plate Heat Exchanger Cleaning in Taierzhuang, Zaozhuang, Shandong

Chemical cleaning descaling process:

Recirculating Closed Loop Cleaning

Recirculating cleaning utilizes two original parallel ash pipelines to form a loop, creating a circulation system with the cleaning pump station. A certain concentration of acidic solution is added, which circulates within the ash water pipes for cleaning. As the acid washing decreases to a certain level, the acidic solution is continuously replenished. For short-distance single ash water pipelines, if conditions permit, a temporary pipeline can be laid to form a recirculation loop for cleaning. This process must be carried out while the system is shut down, and it is complex and costly.

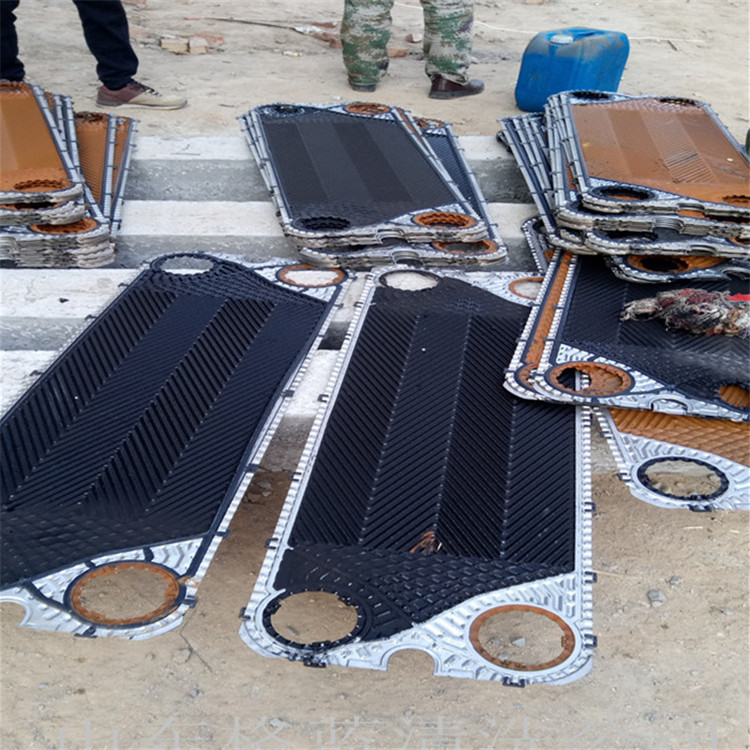

Plate Heat Exchanger Cleaning - Zaozhuang, Shandong

Open road cleaning

No two gray pipes can form a loop during cleaning; only a single gray pipe can be used for open circuit cleaning. The method involves connecting one end of the gray pipe to the cleaning device, continuously preparing a certain concentration of cleaning solution in the fluid tank, and injecting it into the gray pipe continuously or intermittently. This process requires the addition of cleaning equipment during shutdown, resulting in higher costs.
Plate Heat Exchanger Cleaning in Taierzhuang, Zaozhuang, Shandong

Continuous cleaning without shutdown

The process involves continuously injecting a specific amount of acidic fluid while operating the ash conveying pipeline, simultaneously introducing a certain amount of ash conveying pipeline cleaning inhibitor and pipeline cleaning descaler for open-loop cleaning. The primary function of the cleaning aids is to promote the reaction between the acidic fluid and the ash scale within a certain concentration and flow rate, while also enhancing its solubility in water and reducing the generation of air blockage, ensuring the quality of ash pipeline cleaning.

The procedure is as follows: First, estimate the required acid amount based on the total scale in the pipeline before cleaning. Then, calculate the acid addition rate and the flow rate of the ash-carrying pipe by considering the flow rate of the gray water and the acidity. During cleaning, take a sample at the front end of the ash pipe every 30 minutes to test the acidity, and strictly control it by adjusting the acid flow rate. In the later stage of cleaning, test the pH value at the end of the ash pipe every 15 minutes. When the pH value reaches a certain level and remains unchanged for 30 minutes, the cleaning process can be deemed complete.


2. High-pressure water jet cleaning equipment
High-pressure water jet cleaning offers high efficiency, low cost, non-damaging to workpieces, environmental-friendly, easy operation, and safety advantages.
High-pressure water technology boasts the following advantages.

(1) Excellent Cleaning Quality: During high-pressure water jet cleaning of pipes and the internal cavities of heat exchangers, all scaling and obstructions within the pipes are thoroughly removed, revealing the metal substrate. The high-pressure water jet, with its immense energy and supersonic speed, is fully capable of destroying hard scaling and obstructions without causing any damage to the metal.

Since the pressure of high-pressure water is less than the compressive strength grade of metal, high-pressure cleaning will not damage the base material being cleaned.
Plate-type Heat Exchanger Cleaning, Zaozhuang, Shandong

(2) Fast Cleaning Speed: Due to the combined crushing effects of water jet washing, wedge splitting, shearing, and grinding, scale can be quickly broken and removed, which is several to ten times faster than traditional chemical methods, sandblasting and shot peening techniques, simple mechanical, and manual cleaning methods.

Components cleaned with high-pressure water jetting do not require secondary cleaning; however, after chemical cleaning, the surface must be rinsed with clean water.
Plate heat exchanger cleaning in Taierzhuang, Zaozhuang, Shandong

(3) No Environmental Pollution: Since high-pressure water jet cleaning uses pure water as the medium, it does not generate a large amount of dust like sandblasting, shot blasting, or simple mechanical cleaning, which can pollute the atmosphere and harm health. It also does not produce a large volume of waste liquid like some chemical cleaning methods, which can contaminate rivers, soil, and water quality. The water jet cleaning with pure water as the medium is odorless, tasteless, and non-toxic. After atomization, it can also reduce the dust concentration in the working area, lowering atmospheric dust from 80mg/m³ with other methods to below the national safety standards, thus causing no pollution.

Pipe Scale

(1) Classified by chemical composition, they can be categorized into carbonate scale, sulfate scale, silicate scale, and mixed scale. The main components of carbonate scale are calcium carbonate and magnesium carbonate; the main components of sulfate scale and silicate scale are calcium sulfate and silicate compounds, respectively; mixed scale is usually a mixture of the above three types.
Plate Heat Exchanger Cleaning in Taierzhuang, Zaozhuang, Shandong

(2) Categorized by physical properties, there are two types: scale that firmly adheres to the pot shell and pipe walls, and sediment that is loosely textured and easily detachable.
Lime scale primarily forms due to the salts like calcium and magnesium in the boiler feed water, which precipitate and adhere to the metal surface upon heating. Lime scale has a very low thermal conductivity, about 2 to 5 times that of ordinary steel. When lime scale accumulates on the boiler's heating surface, it severely deteriorates heat transfer efficiency, affecting the boiler's performance; it can easily cause metal materials to burn due to localized overheating, potentially leading to pipe explosion accidents; it also accelerates galvanic corrosion, causing pipeline lime scale corrosion and speeding up the damage to the heating surface. Once lime scale forms, it should be promptly removed using either mechanical or chemical methods.

Heat Exchanger and Refrigeration Equipment Cleaning - Choose GreenChem for Assurance
