Clean various heat exchangers, condensers, industrial pipelines, boilers, and steam power plant condensers. Glan Chemical Co., Ltd. offers guaranteed cooperation.

Jining Green Chemical Technology Co., Ltd. (简称 Jining Green Cleaning Co.) was established in 2010 and is a professional company specializing in the cleaning of various industrial heat exchange equipment. The company has comprehensive business philosophy and the capability to develop industrial equipment cleaning technologies, undertaking cleaning services for industrial, private enterprises, chemical equipment, power plant equipment, condensers, boilers, and economizers. We also provide air conditioning and heat exchange equipment cleaning, as well as cleaning for mechanical and chemical equipment. We also handle cleaning of refrigeration and heating equipment for scale removal.

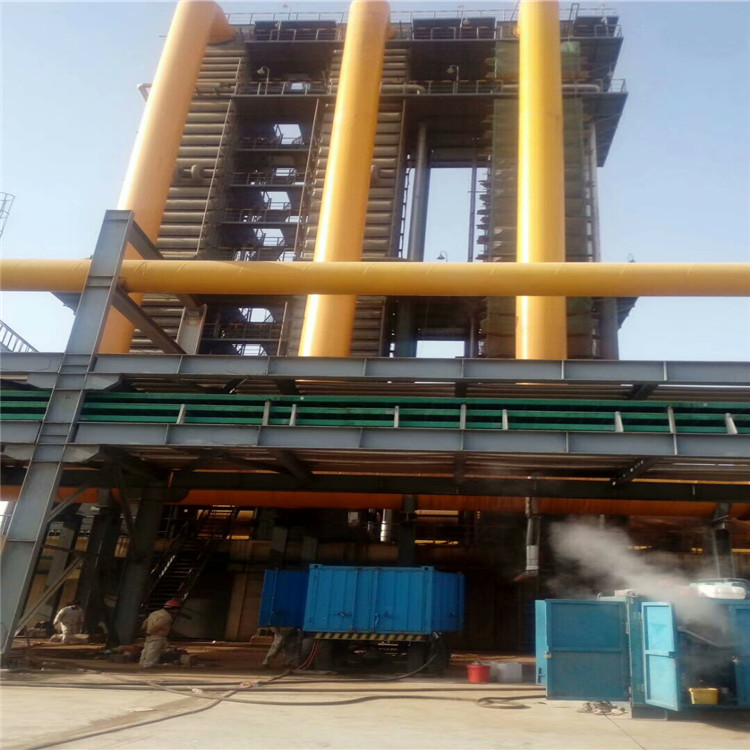

Coking plant equipment cleaning in Yinan, Linyi, Shandong

Jining Grean Cleaning Co. offers dozens of cleaning machines in various models ranging from 10mpa to 250mpa, as well as over a dozen chemical cleaning pump stations. Our main services are provided to power plants, chemical factories, oil refineries, food processing plants, corporate entities, heating equipment, and more. The company also provides long-term industrial heat exchanger cleaning and solution design services to industry clients.

Our company has newly acquired domestic cleaning machines and imported cleaning equipment. We have hired experienced technical specialists in the cleaning industry to achieve standardized and standardized cleaning of heat exchange equipment.

Coking plant equipment cleaning in Yinan, Linyi, Shandong

Chemical Cleaning Scale Removal Process

Recirculating Closed Loop Cleaning

Recirculating cleaning utilizes two existing parallel ash removal pipelines to form a loop, creating a recirculation system with the cleaning pump station. A certain concentration of acidic solution is added, and the ash water flows in a recirculation pattern for cleaning within the pipeline. As the acid washing decreases to a certain level, the acidic solution is continuously replenished. For short-distance single ash water pipelines, if conditions permit, a temporary pipeline can be laid to form a recirculation loop for cleaning. This process must be carried out while the system is shut down, and it is complex and costly.
Coking plant equipment cleaning in Yinan, Linyi, Shandong

Pilot cleaning

No two ash pipes can form a loop during cleaning; only a single ash pipe can be used for open circuit cleaning. The method involves connecting one end of the ash pipe to the cleaning unit and continuously preparing a specific concentration of cleaning solution in the dosing tank, which is then continuously or intermittently injected into the ash pipe. This process requires the addition of cleaning equipment during shutdown, resulting in higher costs.

Continuous Operation Cleaning

The process involves continuously injecting a certain amount of acidic solution while the ash pipe is operating normally without interruption, simultaneously introducing a specific quantity of ash-pipe running cleaning inhibitor and pipeline descaling agent, and performing open-circuit cleaning. The primary function of the cleaning aid is to promote the reaction between the acidic solution and ash deposits at a certain concentration and flow rate, while also increasing its solubility in water and reducing the occurrence of air blockages, ensuring the quality of ash-pipe cleaning.

Operation procedure: Before cleaning, estimate the required acid amount based on the total scale in the pipeline, then calculate the acid addition rate and sludge discharge pipe operation rate for the cleaning inhibitor and pipeline stripping agent based on the grey water flow rate and acidity. During cleaning, take samples at the sampling point at the front of the sludge pipe every 30 minutes to test the acidity, and strictly control the acidity by adjusting the acid flow rate. In the later stage of cleaning, take samples at the end of the sludge pipe every 15 minutes to test the pH value. When the pH value reaches a certain level and remains unchanged for 30 minutes, the cleaning can be considered complete.

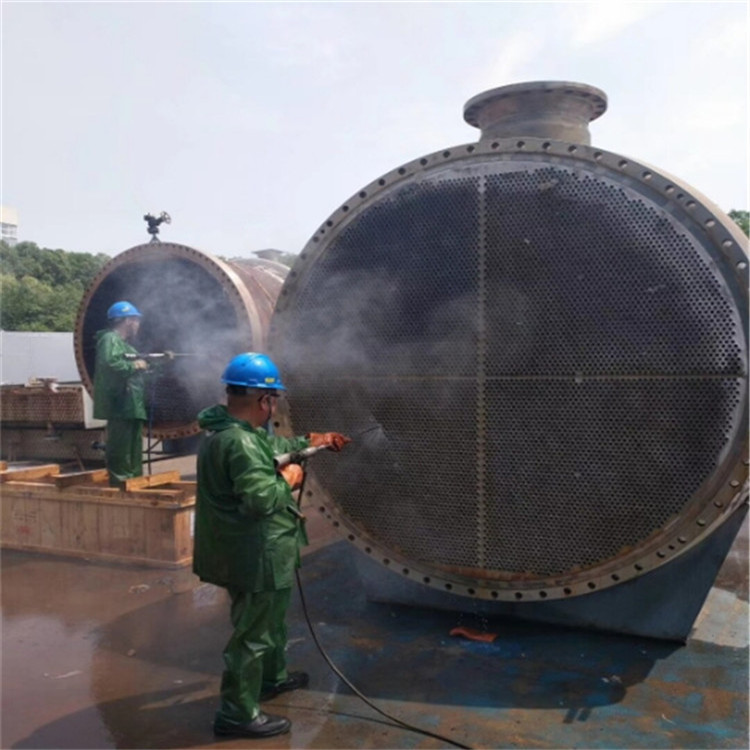

2. High-pressure water jet cleaning equipment
High-pressure water jet cleaning offers advantages such as high efficiency, low cost, non-damaging to workpieces, environmental friendliness, ease of operation, and safety.
High-pressure water technology boasts the following advantages.

(1) Excellent Cleaning Quality - The high-pressure water jet cleaning of pipeline and heat exchanger bores can completely remove scale and blockages inside, revealing the metal surface. With its immense energy and ultra-sonic speed, the high-pressure water jet is fully capable of destroying tough scale and blockages, yet it has no damaging effect on the metal.

Since the pressure of high-pressure water is less than the compressive strength grade of metal, high-pressure cleaning will not damage the base material being cleaned.
Coking plant equipment cleaning in Linyi, Yinan, Shandong

(2) Fast Cleaning Speed: Due to the combined crushing effects of water jet washing, wedge splitting, shearing, and grinding, scaling can be quickly broken and removed, making the cleaning speed several to ten times faster than traditional chemical methods, sandblasting, simple mechanical, and manual methods.

Components cleaned with high-pressure water jet do not require secondary cleaning; however, after chemical cleaning, the surface chemical needs to be rinsed off with clean water.
Coking plant equipment cleaning in Linyi, Yinan, Shandong

(3) No Environmental Pollution: As high-pressure water jet cleaning uses pure water as the medium, it does not produce a large amount of dust like sandblasting, shot blasting, or simple mechanical cleaning, which can pollute the atmosphere and harm health. It also does not generate a large volume of waste liquid like some chemical cleaning methods, which can contaminate rivers, soil, and water quality. The water jet cleaning with pure water as the medium is odorless, tasteless, and non-toxic. After atomization, the spray can also reduce the dust concentration in the work area, lowering atmospheric dust from 80mg/m³ with other methods to below the national safety standards, thus causing no pollution.

Coking plant equipment cleaning in Yinan, Linyi, Shandong

Pipe Scale

(1) Categorized by chemical composition, they can be divided into carbonate scale, sulfate scale, silicate scale, and mixed scale, etc. The main components of carbonate scale are calcium carbonate and magnesium carbonate; the main components of sulfate scale and silicate scale are calcium sulfate and silicate compounds, respectively.
Coking plant equipment cleaning in Linyi, Yinan, Shandong

(2) Categorized by physical properties, there are two types: scale that firmly adheres to the pot shell and pipe walls, and sediment that is loosely textured and easily detached.
Scale primarily forms due to the salts like calcium and magnesium in the boiler feed water precipitating and adhering to the metal surface upon heating. The thermal conductivity of scale is very low, approximately 2 to 5 times that of ordinary steel. Scale accumulation on the boiler heating surface greatly worsens the heat transfer efficiency, affecting the boiler's performance; it can easily lead to metal material damage due to localized overheating, potentially causing tube explosion accidents; it also accelerates galvanic corrosion, leading to pipeline scale corrosion and speeding up the damage to the heating surface. Once scale forms, it should be promptly removed using either mechanical or chemical methods.

Heat Exchanger and Refrigeration Equipment Cleaning - Choose GreenChem for Confidence
