Product Description:

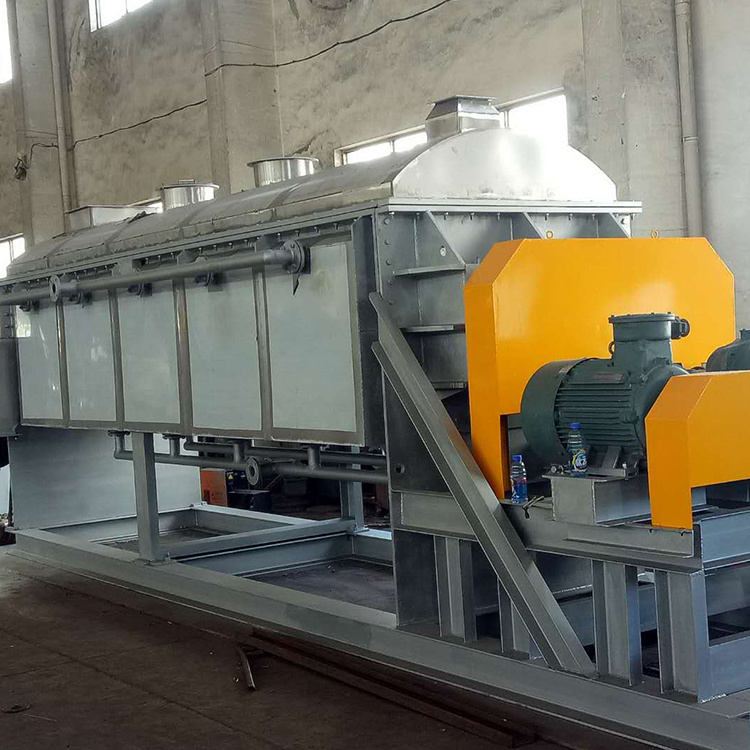

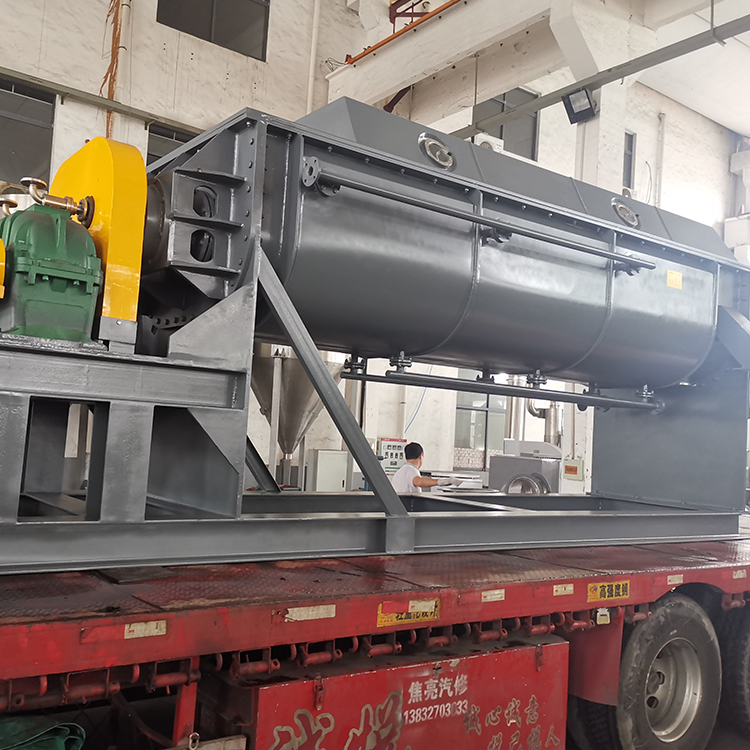

Propeller blade dryer with jacketed end faceWShell body, top cover, hollow shaft with blades, end caps at both ends, rotating joints for conveying thermal medium, metal hoses, and transmission mechanisms including gears and sprockets, etc.

A浆叶drier is a low-speed agitated drier with a paddle blade inside the equipment, which allows wet materials to be in full contact with the heat carrier and hot surface due to the stirring action of the blades, thereby achieving the drying purpose. The structure is typically horizontal, with a dual-axis or quad-axis design. The paddle blade driers are categorized into hot air and conduction types. This equipment has been successfully used in industries such as food, chemicals, petrochemicals, dyes, and industrial sludge. It can indirectly heat or cool paste-like, granular, powdered, and slurry materials, and can perform unit operations like drying, cooling, heating, sterilization, reaction, and low-temperature calcination.

Propeller dryer operates continuously. When two main shafts are configured, the rotation directions are opposite. The main shaft speed is lower, and the linear speed is less than2 m/sSpindle, propeller blades, andWThe shaped slots (including the portion of the housing above the paddle blade diameter by a certain distance) are all hollow, with the center allowing the passage of hot fluid.

Product Specifications:
