Product Introduction:

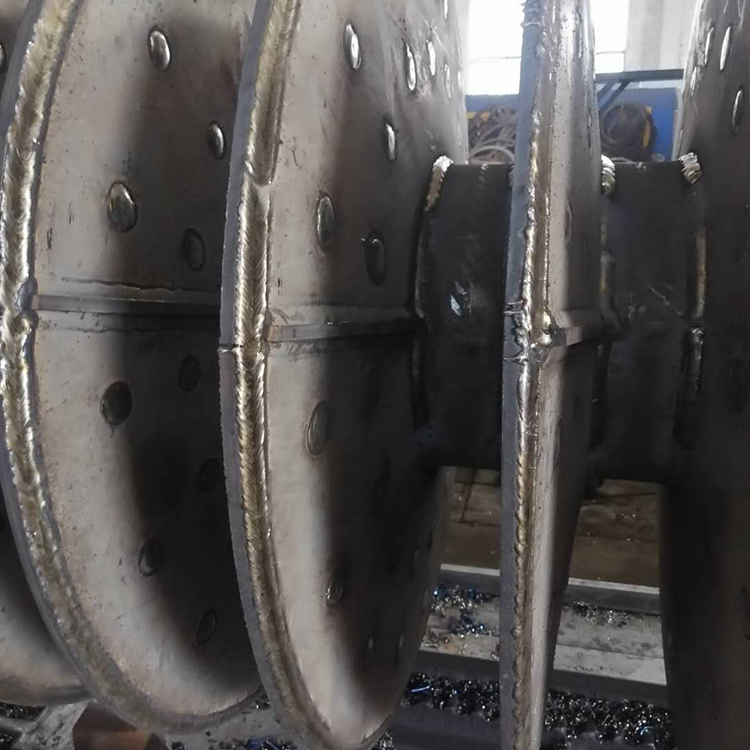

Sludge disc dryer turntable is fully automatic welding-Accepted. The two halves positioned within the pan for use prior to welding are automatically welded.-Special alignment technology for joining with enhanced strength. The turntable is a sub-assembly, then mounted to the rotor shaft for welding.-Received.

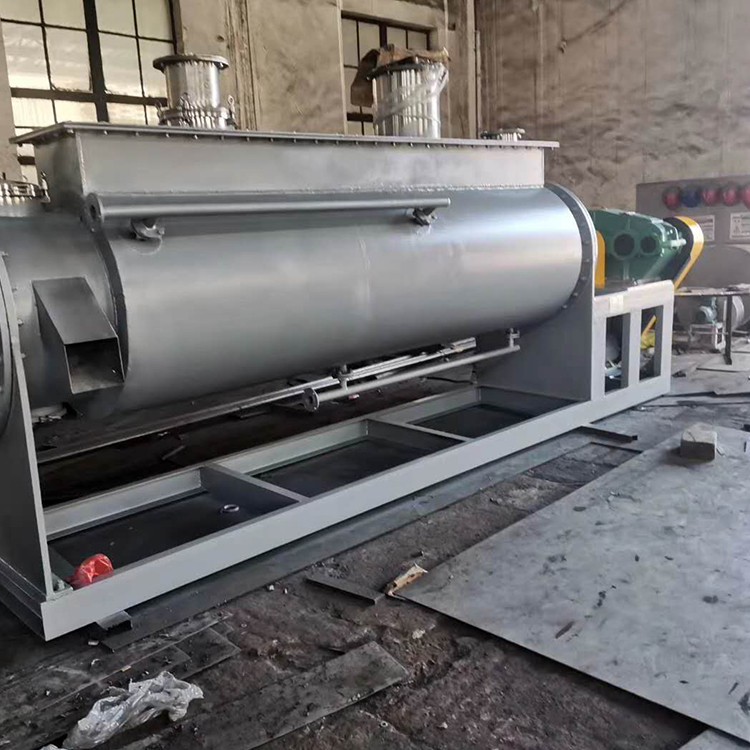

Sludge disc dryers are generally used to dry and cool materials based on the heat conduction from the metal leaf.^Thickened substances, particulate matter, powder conditions, or slurry conditions of raw materials. This high-efficiency drying method, based on the heating of hot knives by the heat transfer method, also features self-cleaning capabilities when the equipment is not in operation.
Sludge Disc Dryer Equipment Features:
1.Heat Transfer Disc, excellent heat transfer performance.
2.Closed operation for drying projects, suitable for conditions where moisture is harmful or there are unpleasant odors.
3. The impeller in the drum continuous dryer is submerged in the material, fully utilizing the heat transfer area.
4.Disc continuous dryer can be used both as a dryer and a heater, as well as a cooler.-Valve operation.
5.The disk continuous dryer equipment operates smoothly, is easy to operate and maintain; it can operate continuously or intermittently.
6.Scrapers are provided from the stator to the rotating disk, allowing for adjustment of the material's dwell time within the dryer.
Product Specifications:
Model | YJG-3 | YJG-8 | YJG-12.5 | YJG-25 | YJG-50 | |
Heat Transfer Area | m2 | 3 | 8 | 12.5 | 25 | 50 |
RPM | r/min | 6-24 | 5-20 | 5-20 | 5-20 | 4-16 |
Power | kw | 1.5 | 4 | 5.5 | 11 | 55 |
Effective Volume | m3 | 0.065 | 0.49 | 0.94 | 1.65 | 3.15 |
Steam Pressure | MPa | 0.6 | 0.6 | 0.6 | 0.6 | 0.79 |
Evaporation Rate | kg/m2.h | 10-60 | 10-60 | 10-60 | 10-60 | 10-60 |
Outer Dimensions (2R*L) | mm | 3295*420 *798 | 4823*873 *1198 | 5781*1120 *1479 | 6860*1468 *1839 |
