Model: ZJX-3X1600
ZJX-3X1600Automatic high-speed longitudinal slitting machine, mainlyUsed for metal coil cutting, such as cold and hot rolled steel strips, stainless steel, copper, aluminum, galvanized, color coated steel, etc. The production line is mainly used by steel processing factories, rolling steel factories, electrical industries, automotive industries, stamping parts, and more.Fully Automatic High-Speed Longitudinal Shearing LineComposed of unrolling (uncoiling), material positioning, strip cutting, and winding (rewinding), an all-in-one, high-speed, high-capacity longitudinal cutting line.
Model and Technical Specifications
Model | ZJX-3X650 | ZJX-2x1250 | ZJX3X1600 | ZJX-4X1600 | ZJX-6X1600 |
Material | Cold rolled, hot rolled, stainless steel coils, galvanized coils, color coated coils, aluminum coils, pickled coils, copper coils | ||||
Thickness | 0.3-3 mm | 0.2-2 mm | 0.3-3 mm | 0.5-4 mm | 0.5-6mm |
Width | 150-650 | 500-1250 | 500-1250 | 500-1250 | 500-1250 |
Roll Weight | 5T/10T | 10T/15T | 15T/20T | 15T/20T/25T | 20T/25T |
Line Speed | 100/120m/min | 120/150m/min | 120/150m/min | 100/120m/min | 60/80/100m/min |
Number of Shearing Lines | 6-15Line | 6-20Thread | 6-25Thread | 6-30Stripe | 6-30Thread |
Cutting Precision | ±0.05mm | ±0.05mm | ±0.05mm | ±0.1mm | ±0.1mm |

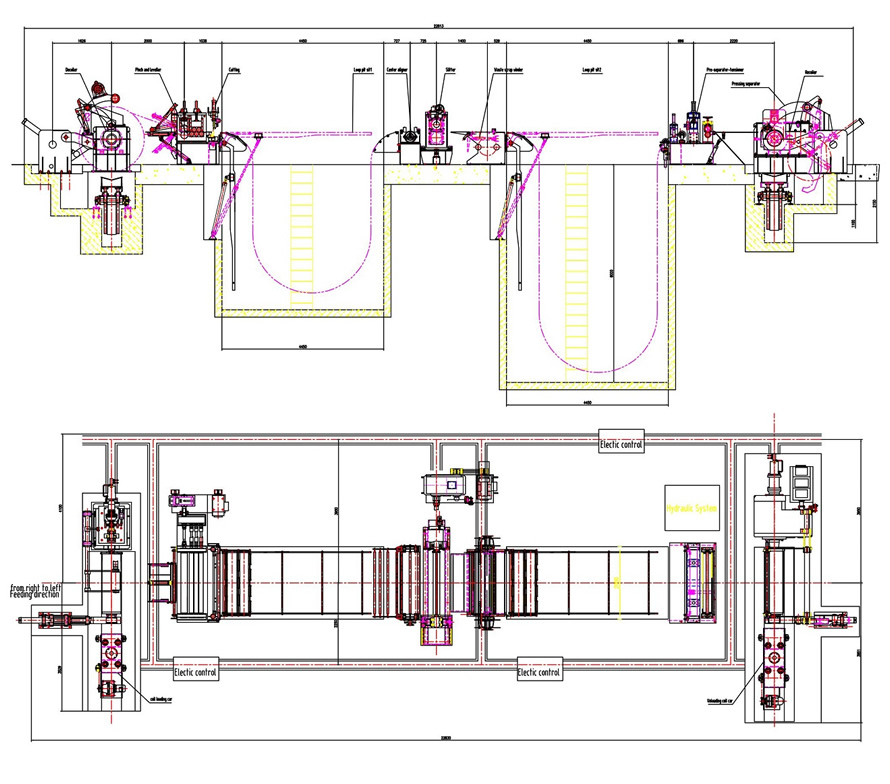

Production line layout reference (left for raw material intake)
From left to right: Material feeding cart + hydraulic uncoiler ------ Uncoiling clamp + trim剪切 ----活套1 ---- Left and right guide positions ---- Longitudinal slitting machine + edge wire machine ------活套2 ------ Tension station ------ Rewinding machine + material unloading cart
