Model: ZJX-2X1250
ZJX-2X1250Hydraulic slitting machine is an economical slitting unit, mainlyUsed for metal coil cutting, such as cold and hot rolled steel strips, stainless steel, copper, aluminum, galvanized, and color coated steel, etc. The production line is mainly used by steel processing factories, rolling steel mills, electrical industries, automotive, stamping parts, etc. It consists of uncoiling (unrolling), longitudinal slitting, and winding (rewinding) processes. The low to medium-speed production capacity longitudinal slitting line is mainly suitable for customers with low annual production requirements.
Model and Technical Specifications
Model | ZJX-1.5X600 | ZJX-2x1250 | ZJX3X1250 | ZJX-4X1250 |
Material | Cold rolled, hot rolled, stainless steel coils, galvanized coils, color coated coils, aluminum coils, pickled coils, copper coils | |||
Thickness | 0.2-1.5 mm | 0.2-2 mm | 0.3-3 mm | 0.5-4 mm |
Width | 150-600 | 500-1250 | 500-1250 | 500-1250 |
Roll Weight | 5T/10T | 10T | 10T/15T | 10T/15TT |
Line speed | 0-40m/min | 0-40m/min | 0-40m/min | 0-40m/min |
Number of Shear Strips | 6-15Thread | 6-20Stripe | 5-20Line | 5-20Thread |
Cutting Accuracy | ±0.05mm | ±0.05mm | ±0.05mm | ±0.1mm |

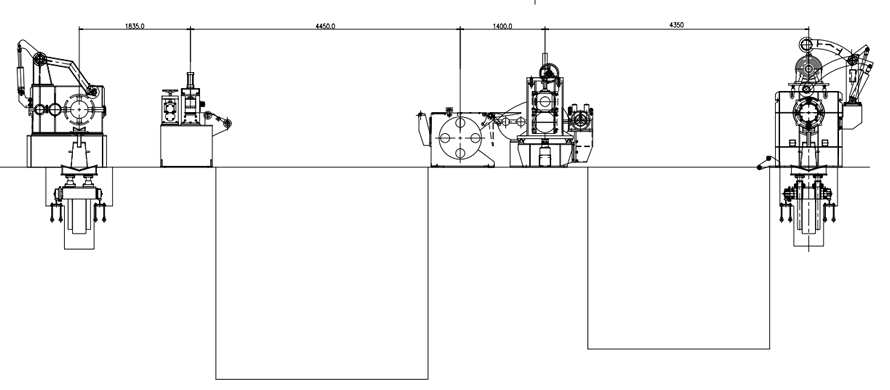

Production line layout (right feed)
From right to left: material feeding trolley + hydraulic uncoiler --- left and right guide positions --- longitudinal cutting main unit --- edge thread machine --- tension station --- winding machine + unloading trolley
