Electric Hand Truck

The KPD series electric trolley is a 36V low-voltage track-powered electric flatbed trolley, powered by track sliding wires. The ground voltage reduction transformer control cabinet reduces three-phase 380V to three-phase 36V, which is then supplied to the flatbed trolley via the track sliding wires. It is stepped up to three-phase AC 380V by the onboard booster, providing power to the electric trolley's drive system, enabling it to start. As it does not use cables, it is safe and reliable during operation, not prone to damage from impacts or heat, and does not hinder cross-transportation. It is easy to implement remote control and automation, greatly facilitating the layout of the factory area. However, it has high requirements for the track, which must be insulated due to the conductive track. Copper compensation wires should be added beyond a certain distance to compensate for the voltage reduction. Additionally, more transformers may be needed for longer operating distances.

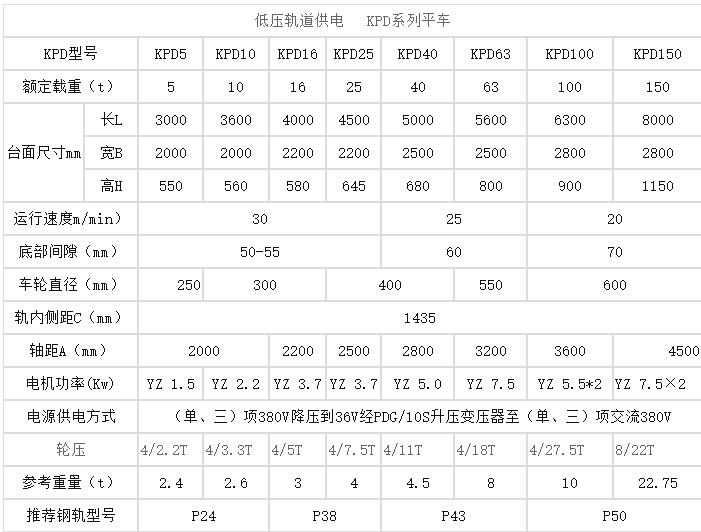

Basic Parameters

Note: 1) Other gauge, table sizes, and carrying tonnage can be customized according to customer requirements.

2) Optional wireless remote control device available.

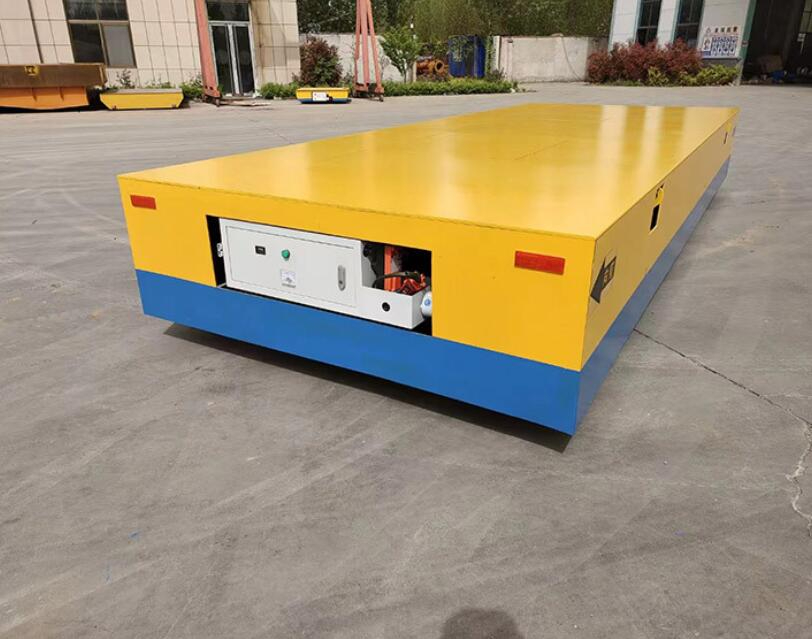

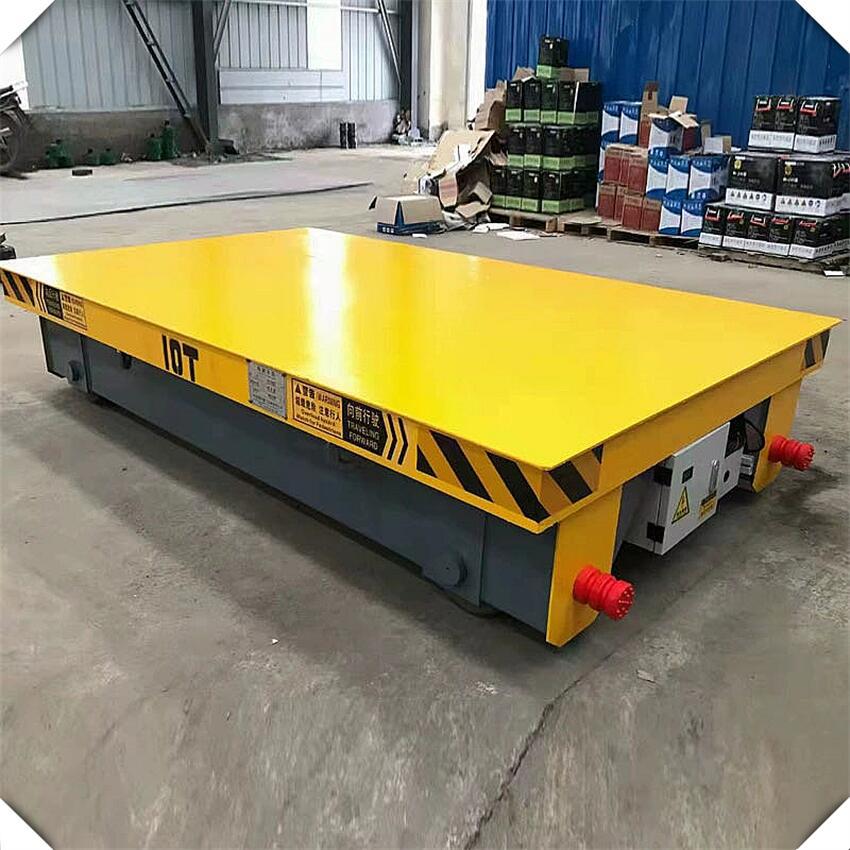

Product Photo: Actual Shot
