Fixed Platform Vehicle Bridge
This machine is suitable for loading and unloading at warehouse platforms and postal hubs, and can be adjusted to different heights of truck trailers, both elevated and lowered, for easy access by forklifts and smooth operations. It features anti-crushing aprons on both sides for enhanced safety. Forklifts and other handling vehicles can directly enter the truck interior via a loading bridge for bulk loading and unloading, requiring only one person to operate, achieving fast loading and unloading. It helps businesses reduce a significant amount of labor, improve work efficiency, and achieve greater economic benefits.
Product Advantages: Electric hydraulic, easy to operate, height adjustable to any desired level, wide adjustment range, enhances loading and unloading efficiency, saves labor.
Applicable venues: Large enterprises with frequent vehicle loading and unloading, various types of vehicles, warehouses, stations, docks, storage logistics bases, postal transport, logistics distribution, etc.
Note: Custom design and manufacturing according to customer's requirements is available.
Product Knowledge:
I. Instructions for the Use of Fixed Hydraulic Boarding Bridge:
1. Move the boarding bridge to the work location, close the manual pump's shut-off valve, and pump the hand pump to lift the bridge deck to an appropriate height (adjust according to the vehicle type).
2. The truck slowly reverses under the bridge (ensuring that the tongue plate stiffener does not interfere upon estimated descent).
3. Open the manual pump shutoff valve to allow the bridge deck to freely abut the railcar, without moving wheels bearing the load.
4. Lower the stern plate, secure the bridge to the vehicle body with the locking chain, and then you can proceed with loading and unloading operations.
5. Upon completion, release the chain, pump the hand pump, and the bridge will disengage from the vehicle body, allowing the truck to depart.
6. Retract the tailgate and remove the boarding bridge.
II. Precautions for Mobile Hydraulic Vehicle Ramp
Before loading or unloading goods, the chains must be securely fastened; otherwise, no operation is permitted.
No overloading allowed.
3. During forklift loading and unloading, try to avoid unnecessary uneven loads to prevent damage to the bridge deck and structure, which could pose a hazard.
4. During the process, the manual pump shut-off valve must be opened to place the tire in a state of no force.
Section 3: Daily Maintenance of Mobile Hydraulic Boarding Bridges
Perform regular monthly inspections of the pinion shaft working condition. If the set screws on the pinion shaft are found loose, they must be tightened immediately to prevent the pinion shaft from falling off and causing an accident.
2. Add lubricating grease to the rotating parts approximately every 2 months, as needed.

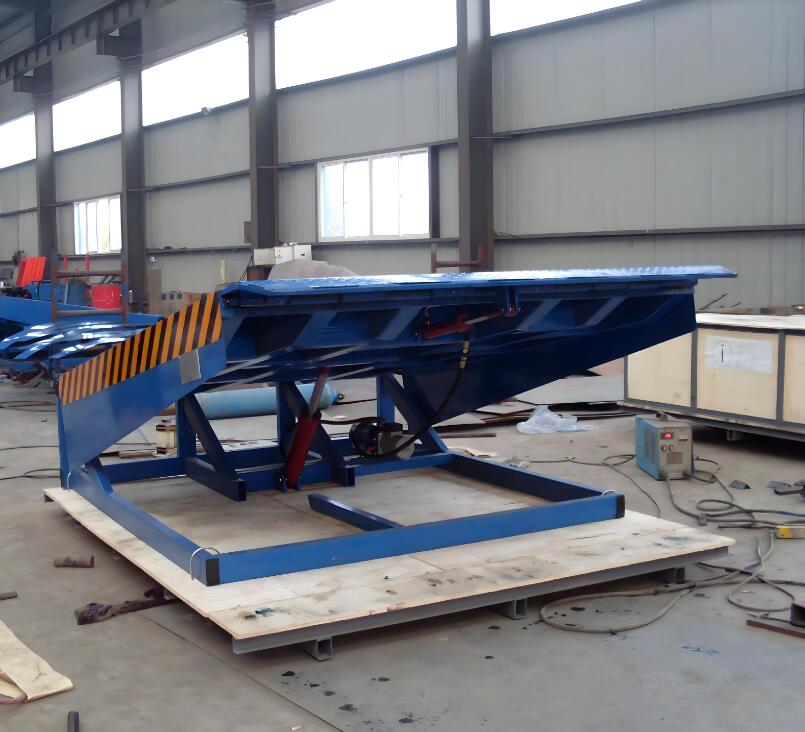

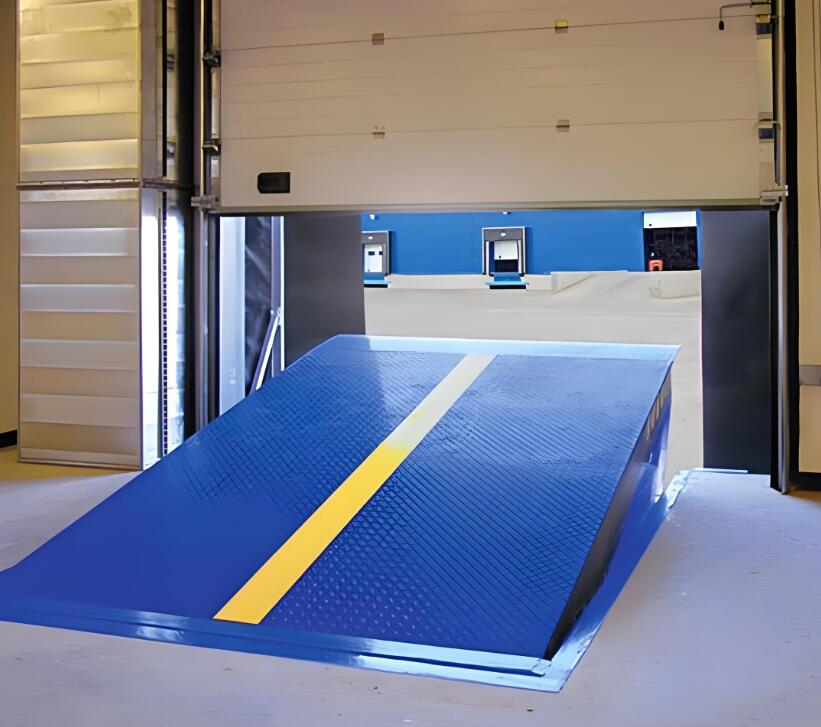

Product Real Photos:
