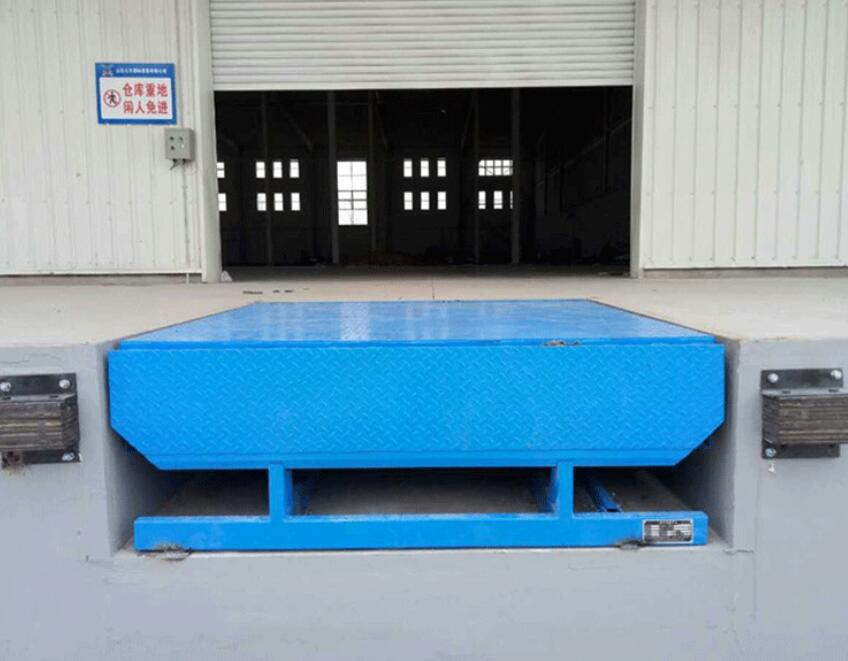

Fixed boarding bridge

A fixed ramp bridge is an auxiliary loading and unloading equipment used in conjunction with warehousing platforms. By integrating with the platform, it forms a bridge between trucks and warehouse platforms, facilitating rapid loading and unloading of goods. The following is a detailed introduction to its features, application scenarios, and purchasing suggestions:

I. Product Features

1. All-hydraulic drive
2. Utilizing imported hydraulic pump stations, the operation is simple and reliable. The main worktop and extension board can be elevated and extended through the hydraulic system, ensuring smooth and safe operation.
3. Sturdy structure
4. Manufactured with high-strength steel (such as superior Q235 steel plate) and professional welding techniques, the overall structure is robust and durable, ensuring long-term stable operation.
5. Highly adjustable
6. Adjustable to different heights of truck trailers, with a wide range for easy forklift access, enhancing loading and unloading efficiency.
7. High safety performance

• Sides are equipped with anti-squeeze aprons to prevent toes from extending into the platform and causing accidental injuries.
• Equipped with safety props, ensuring the safety of maintenance personnel when entering the boarding bridge for maintenance.
• The hydraulic system is equipped with a reliable speed valve to prevent the free fall of the loading/unloading platform and its load.

1. Low maintenance costs
2. Simple structure, with reliable quality of main components; routine maintenance involves regular inspections and simple tasks such as changing hydraulic oil and lubricating moving parts.
3. Anti-slip design
4. The platform is equipped with anti-slip patterned steel plates, offering excellent anti-slip properties and ensuring safe operation.
5. Flexible Customization
6. Customizable for various locations and usage requirements, including different lengths, widths, and load capacities.

Section II: Application Scenarios

1. Logistics and Warehouse Industry

• Container Handling: At the cargo terminal, used to transport containers stacked on the ground to ships or trucks.
• Goods sorting and transfer: Connect different levels of shelves and loading/unloading platforms in large warehouses or logistics centers.

1. Factory Workshop

• Production Line Connection: Connect different-height production lines and equipment for quick material and product transfer.
• Heavy Equipment Transportation: Provides stable support and convenient passage for transporting heavy or large equipment.

1. Parking lot and traffic facilities

• Large transportation vehicle loading and unloading: Providing convenient loading and unloading platforms for trucks, vans, etc.
• Public Transportation Facility Maintenance: Connects maintenance platforms and equipment at different heights for ease of work for maintenance personnel.

1. Special scenarios

• Petroleum & Chemical Logistics: Meets high-intensity anti-corrosion treatment requirements and adapts to special environments.
• Emergency Repair Services: Connects repair areas and work platforms of different heights for quick operations by repair personnel.

III. Buying Suggestions

1. Specify requirements
2. Select an appropriate carrying capacity based on the weight of goods from daily operations to prevent bridge damage due to overloading.
3. Focus on the height adjustment range
4. Select boarding bridges that can accommodate various heights to fit different warehouses and transport vehicles.
5. Material and Structure
6. High-quality steel or aluminum materials offer improved load-bearing capacity and corrosion resistance, with rational structural design enhancing stability.
7. Safety
8. Select a boarding bridge with a non-slip surface, safety guardrails, and adjustable rope chains to ensure safe operation.
9. Convenience and flexibility
10. Consider the customization flexibility of the boarding bridge to see if it can accommodate specific site requirements.
11. Price and value for money
12. Compare prices and performance of various products to select one that fits the budget and meets the requirements.
13. After-Sales Service
14. Choose manufacturers with a good reputation and positive word-of-mouth, ensuring high-quality after-sales service.

IV. Technical Parameters Example

• Width: 1.8 meters to 2.5 meters (standard width of 2 meters is suitable for most medium-sized trucks and forklift operations).
• Length: 3.5 to 4.5 meters (ensuring smooth connection with trucks of varying heights).
• Height: 0.8 to 1.2 meters (adjustable according to warehouse floor and truck chassis height).
• Load Capacity: Typically ranges from 6 to 10 tons, with some customized models capable of higher weights.
