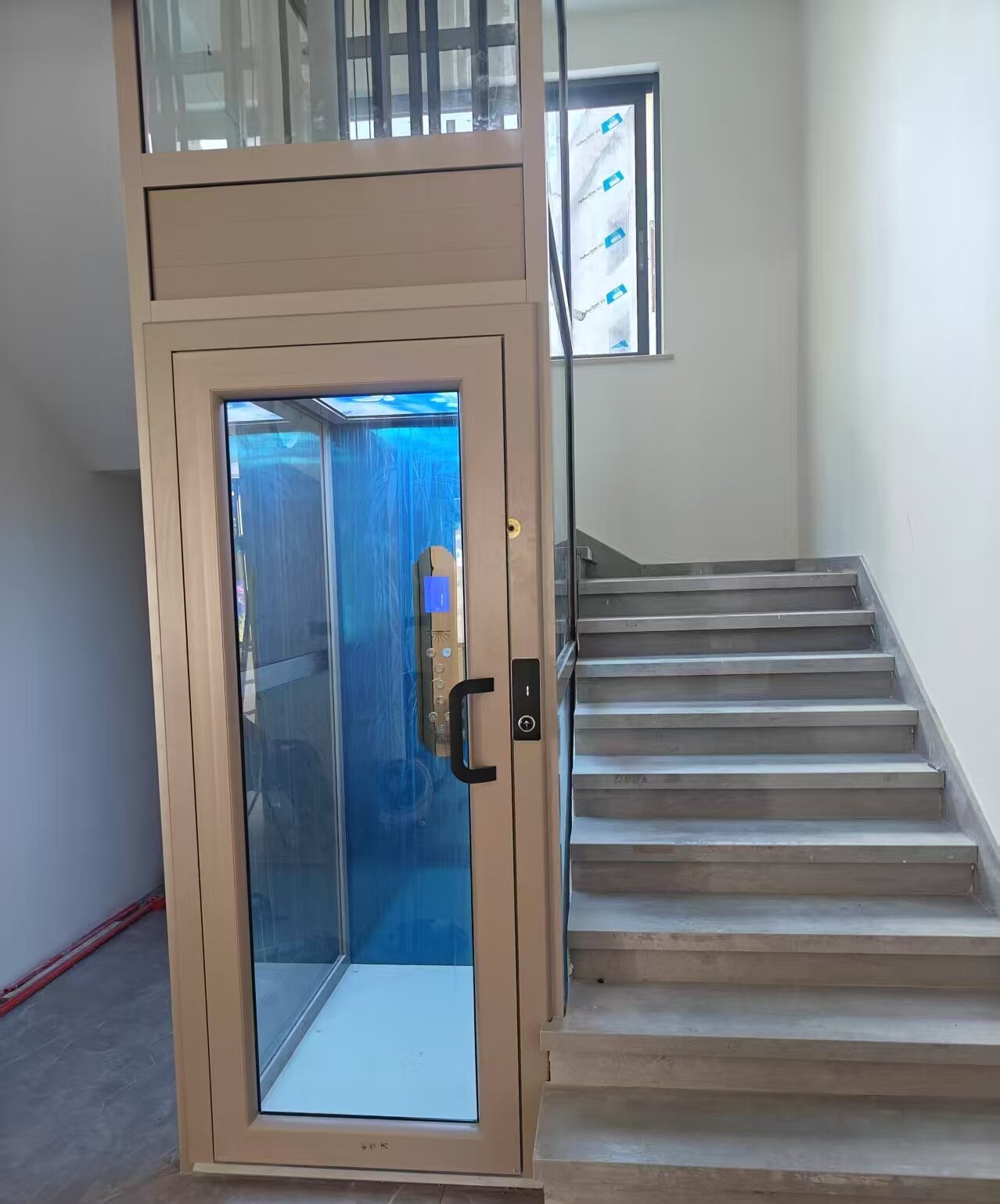

Home Elevator for Residential Villas

Specs and Parameters:

Speed: 0.4 meters/second

Maximum Load Capacity: 400 kg

Highlight:

Highlight One of Jiuheng Machinery: Design Features at Commercial Elevator Level

Hoisting elevator system, featuring a structural design similar to commercial无机room elevators, requires minimal power to drive the main unit, significantly reducing energy consumption. The main unit is installed with an independent guide rail structure, which is not connected to the walls, resulting in notable noise reduction and providing a quiet elevator ride experience.

Cabin gantry structure with high strength and even load distribution, stable and durable.

An automatic door system with an inner and outer double layer, featuring a light curtain protection, enhancing safety and catering to various architectural installation environments.

2. Highlight Two: Innovative Intelligent Control System

Introducing the new generation intelligent control cabinet, designed specifically for residential needs. Compact and small in size, it can be discreetly integrated into interior decor. Easy installation shortens the construction period. Highly intelligent with预留 internet of things and smart interface options, featuring voice, gesture, mobile phone call lift, and remote monitoring functions, embracing a smart lifestyle.

Highlight 3: Flexible design dimensions, with significant civil engineering advantages and customizable exquisite finishes.

Adaptable to the needs of all ages with a wide swinging door; an ingeniously designed structure without a machine room. Even with the car lift at its standard height of 2200mm, the top height is reduced to 2850mm, and the pit depth is also minimized to 300mm. This design does not waste any inch of living space, providing more flexibility and possibilities for architectural space planning.

3. Four Key Features of Jiuheng Machinery: Comprehensive Home Safety Protection

The usage environment of household elevators is a private space, distinct from public areas. In cases of maintenance or rescue, property management assistance is not available. In emergency rescue situations involving abnormal elevator operation, Yongda Elevator has developed a 'One-Button Call for Help' system, which allows for the presetting of 5 emergency contact numbers. Upon pressing the alarm button, the system will immediately initiate a cyclic call to the preset phones. After each round of calling, if the alarm button is pressed again, another round of calling will be initiated.
