Three-column aluminum alloy lifting platform

Product Description:

The three-lattice boom高空作业平台 features a unique three-lattice simultaneous lifting mechanism, offering enhanced stability during both ascending and descending. The lattice material is made of high-strength aviation aluminum, ensuring the safety of the operators.

2. The masts are equipped with integrated sliders developed by ChengLe, ensuring minimal dynamic gaps between them, resulting in smoother and more reliable operation during hoisting and lowering.

3. Equipped with a four-wheel rolling undercarriage, it can easily navigate corners, narrow spaces, and areas with multiple obstacles.

4. The guardrail is installed with an up-and-down mechanism, featuring a sliding bar in the middle for easy access by personnel.

5. Equipped with a level on the base, the machine is easily kept level. The suction cup leveling legs, paired with the level indicator, always provide a firm and stable ground support for the platform, even on slightly uneven surfaces.

6. Equipped with a U.S. Curtis dual-control switch, the platform can be independently operated both up and down.

7. The platform features an emergency stop switch to ensure personnel safety in case of equipment failure.

8. The platform features an emergency descent mechanism, ensuring a gradual descent in case of unexpected power loss, alleviating operators' concerns and providing added safety and peace of mind.

Standard Configuration:

     ● Sensor-Driven Leveling Leg   ● Emergency Stop Button   ● Charging Indicator Light   ● Proportional Control

   ● Limit Switch    ● Dual Control Operation    ● Emergency Lowering System    ● Platform Self-Locking Door

   ● Level Indicator Light ● Standard Forklift Holes ● Transportation Binding Holes ●痕less Solid Tires

● Explosion-proof system for oil pipelines

Optional Equipment:

1. Direct DC Supply Battery (Single DC)

2. DC-to-AC Inverter (Dual Voltage, AC/DC)

3. Electric Assistance Walking Device

4. Can be installed in pickup trucks, light commercial vehicles, etc. (Vehicle-mounted). This model requires customers to provide their own vehicle and provide the van data.

5. Trailerable undercarriages available upon request, suitable for field operations or longer distances.

Other forms available:

1. Top Extension (the surface can slide out horizontally by 50 cm at one end)

2. Insulating Platforms (for elevated work in situations requiring insulation, such as power distribution rooms)

3. Electrical Explosion Proof (for climbing operations in oil and other explosion-proof required environments)

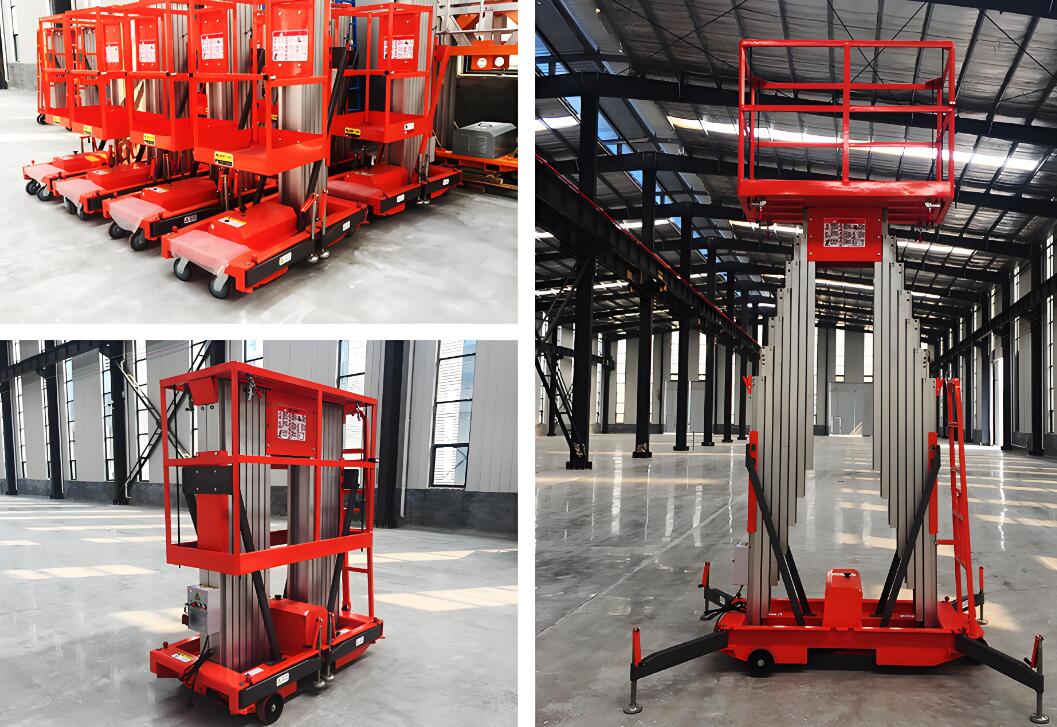

Product photos: Real shots
