PSB Cable Wire Combustion Tester Jet

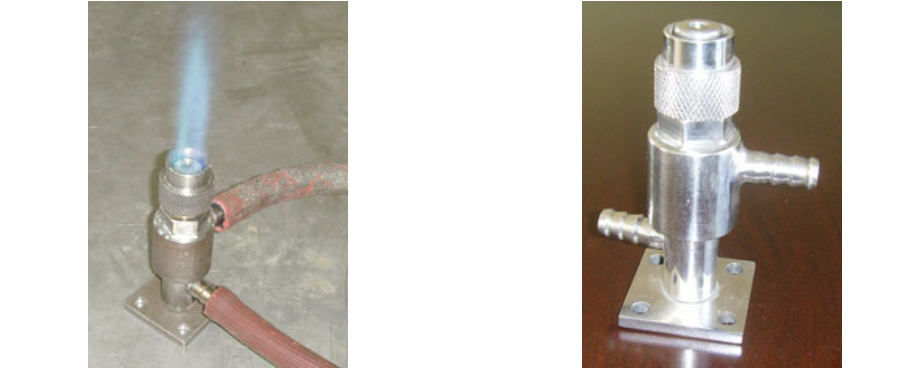

PSB-1KW Gas Torch

This device is suitable for the vertical combustion test of cables as specified in GB/T18380.1—2001 "Cable Combustion Test Under Flame Conditions, Part 1: Vertical Combustion Method for Single Insulated Wire or Cable."

I. Basic Parameters

Complementary combustion chamber dimensions: 730*680*2620mm

2. Burner Box Effective Dimensions: 1200±10×300±10×450±10mm

3. Standard Power of Combustion Torch: 1KW

4. Gasoline or LPG as fuel source for gas torch use

5. Air Flow Meter Adjustment Range: 0-10 ± 0.51/mm (600 L/H)

Section II: Installation of the Equipment

1. Position the unit in a suitable location to allow the exhaust pipe at the top to connect and facilitate smooth discharge outdoors.

Plug into a 220V power source; maximum power is about 100W.

3. Standardly connect the air compressor gas source, gas supply.

PSB-I-7T

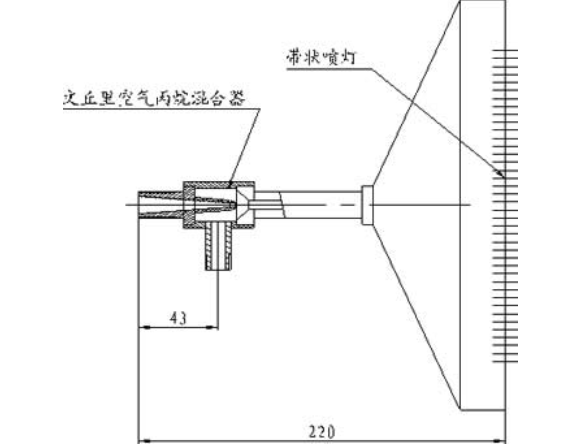

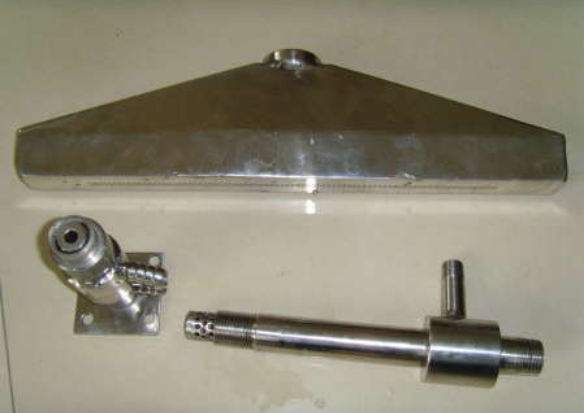

One, This equipment is primarily used for flame resistance testing on bundled wire and cable testing equipment. The nozzle is connected to a fish-shaped torch or a round torch at the rear, and the torch design conforms to GB/T8380.3-2001, or BS EN50200:2006 standards.

Section 2: GB/T8380.3-2001 Basic Parameters

Air Flow: 77.7 ± 4.8 L/min, Pressure: 0.1 MPa(g)

Airflow: 13.5 ± 0.5 L/min

Flame Length Measurement: 170-200mm

III. BS EN50200:2006 Basic Parameters

Airflow: 80±4L/min, Pressure: 0.1MPa(g)

Airflow: 5 ± 0.2 L/min
