Winner300D Pro Particle Image Granulometer
Jinan Winan Particle Instrument Co., Ltd. introduces the professional dry dynamic particle image sizer, WINNER300D. It can analyze particle size and morphology of dry powder samples ranging from 30 to 10,000 micrometers. This equipment complies with the ISO/DIS-13322-2 international standard.
Key Features
Analysis of particle morphologyOur analysis of industry-specific particle morphology parameters such as sphericity, roundness, length-to-diameter ratio, and sphericity is not available in other particle testing equipment.
Analyze massive particle data, with strong representativenessCompared to the static sample-making method of static image instruments, the WINNER300D can measure a vast amount of particle data, which is of great significance for the representativeness of particle data.
Two dynamic testing methods：
Offline Testing (add offline samples to the hopper, test data can be obtained in 2 minutes)
2. Online Testing (By adding an online sampling device, online testing can be achieved, allowing for the observation of sample condition changes over different sampling time periods)
Higher clarityThe combination of the panoramic depth of field and the restrictive flat sampling window effectively enhances the clarity of the particle sample photos.

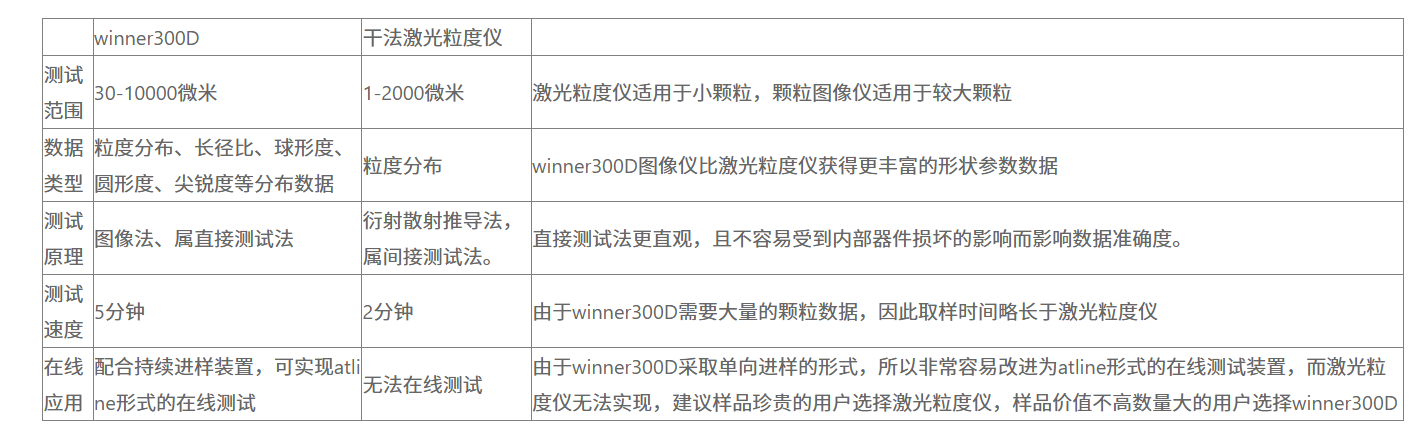

Analyze and compare
Equipment Specifications
Test Range: 30-10,000 um (the lower limit can be extended to 10 um)
Standard of Execution: ISO/DIS-13322-2
Lens Set: High-definition Telecentric Lenses (Specs Available)
Optical Lighting: High-luminance parallel light source
Accuracy Error: ＜1% (Standard Sample D50 Value)
Repetitive Error: ＜1% (Standard Sample D50 Value)
Particle analysis quantity: >100,000 particles/minute
High-speed imaging module: Maximum frame rate 120 fps
Cutting method: Utilizes electromagnetic pulse vibration with 150-level speed adjustment and conversion
Dispersal Method: Electromagnetic Vibration and Ultrasonic Dispersal
Instrument dimensions: Length x Width x Height: 684*360*500mm
Instrument Weight: 24 kg
Analysis Items: Grain Size: Includes grain size distribution, typical particle size values such as D10, D50, D90 (can be customized), maximum particle size, specific interval content, content greater than or equal to, or less than a certain particle size, and particle size distribution.
Particle shape: Length-to-diameter ratio and distribution, roundness and distribution, particle image photos.
Particle Count: Total number of particles involved in the test.
Software Additional Features: Customizable header display with logos and report information such as testers, task management mechanisms, and customizable display range.
