Product Overview
The DY-GTL-XC Intelligent Dry Body Furnace (-30～650℃) is the second-generation portable intelligent temperature calibration device launched by Taiande Meimei, specifically designed for on-site calibration. It is widely applicable in industrial mining enterprises, scientific research institutions, colleges and universities, as well as metrology departments. It is mainly used for calibration of thermocouples, platinum resistance thermometers, temperature transmitters, and other temperature instruments.
Product Features
• Equipped with 3 independent standard channels for measuring standard platinum resistance (Pt25) and standard thermocouples.
• Equipped with 5 detection channels, capable of testing 8 types of thermocouples including PT100 and K, E, J, T, B, N, R, S for industrial use.
• Offers three calibration modes: resistance, thermocouple, and temperature transmitter.
• Real-time display of resistance, battery level, temperature, and fluctuation values.
• Supports data recording, exporting, and storage functions;
• Features multi-channel curve display, capable of real-time displaying the test status of 1-8 monitored channels.
• Supports user-defined sensor segment correction feature.
Product Features
• Equipped with a touch large screen display window, the interface is intuitive and clear, with easy operation.
• Measurement resolution and temperature control resolution can be independently set, without affecting each other.
• Compact in size and lightweight, easy to carry, and environmentally friendly.
• Features intelligent calibration and is compatible with 232 communication interface.

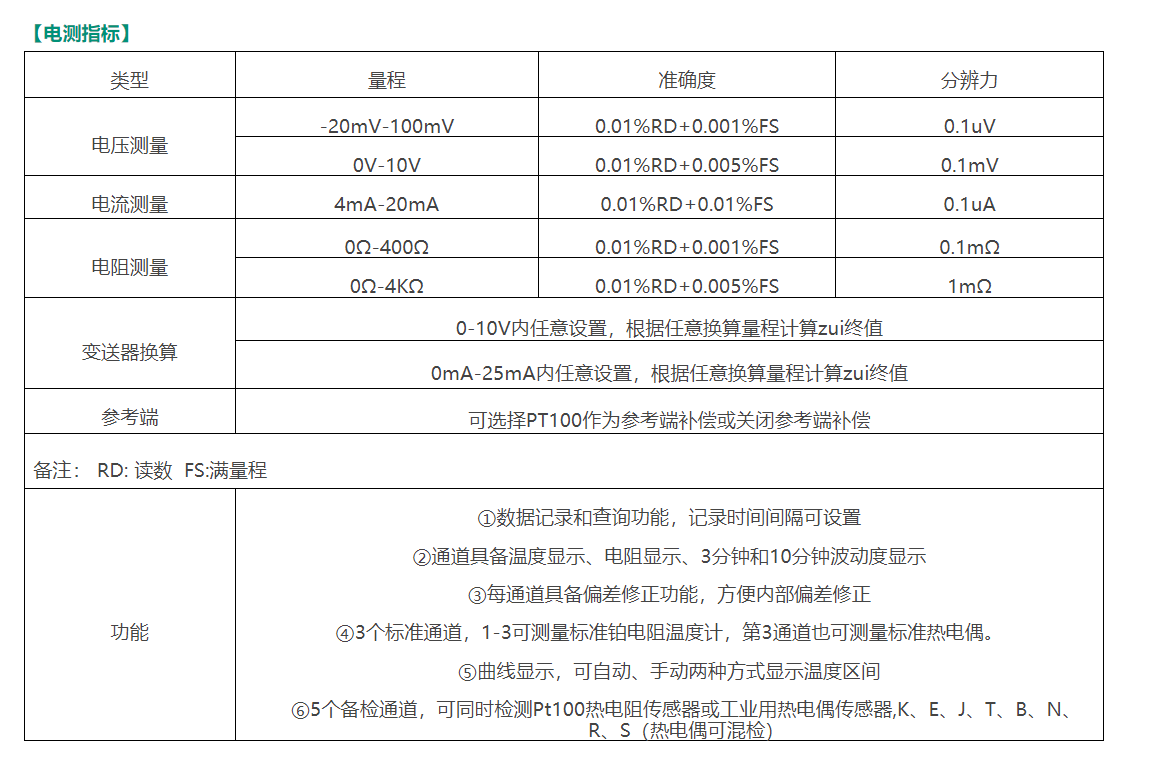

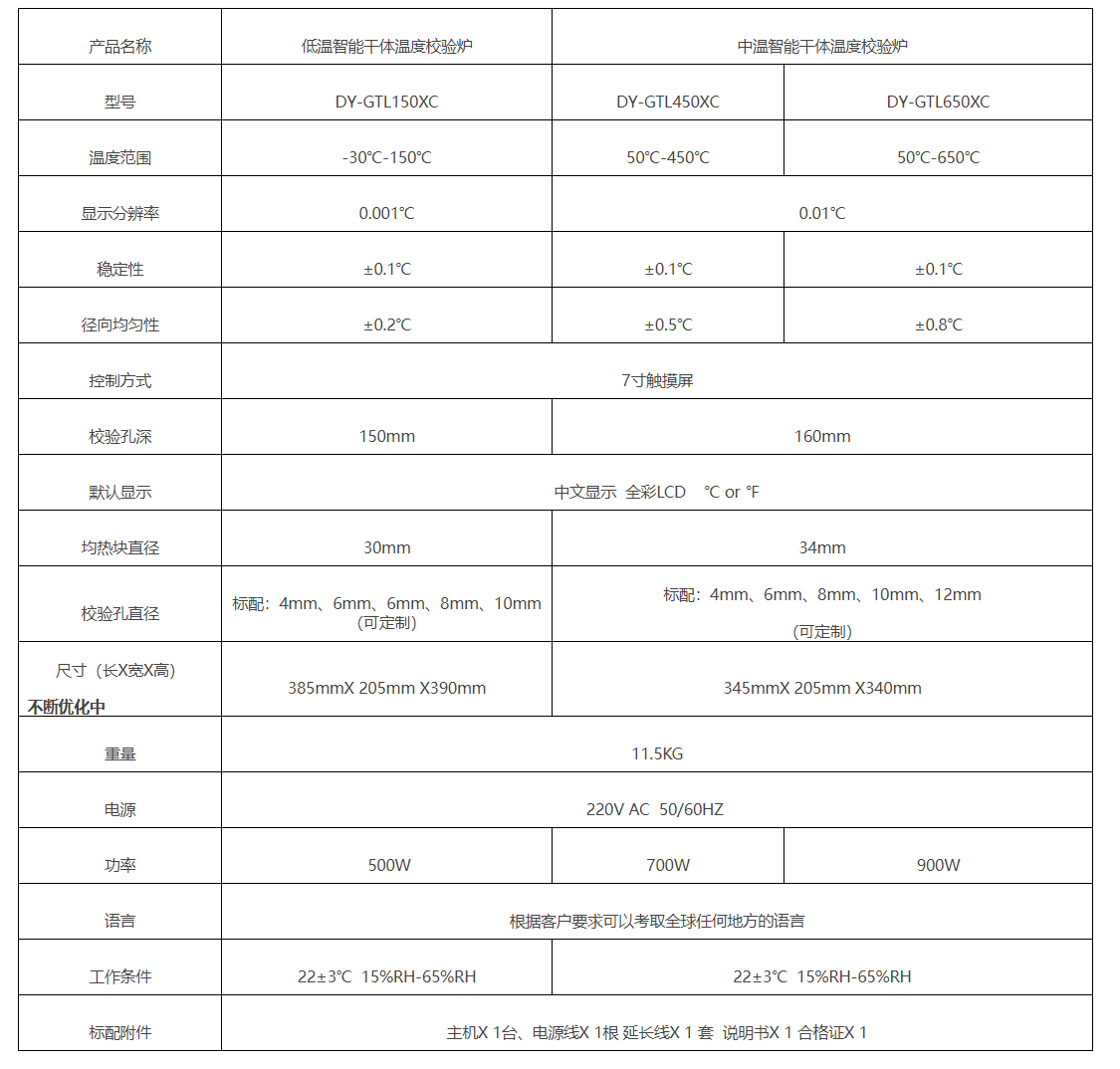

Product Specifications
