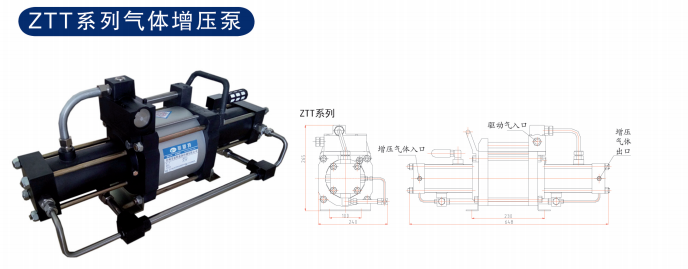

Gas Pressure Booster PumpZTTSeries

One: Pressure-boostable gas medium:

Air, Nitrogen (N2), Helium (He), Neon (Ne), Argon (Ar)Natural GasGas, Carbon Dioxide (CO2)Carbon Monoxide(CO)、One Oxygen/Nitrous Oxide(N2O), Fire ExtinguishantsMethane/PropaneAlkanes, hospital breathing gases (N2 + O2)Hexafluoride/Sulfuric AcidGases (e.g., SF6), ethylene (C2H4), inert gases, etc.

For specialized gases such as oxygen (O2),Hydrogen/Gas(H2) Refrigerant, corrosive gases, etc., please specify in advance when placing an order for special handling.

Section II: Working Principle

The air pressure driving typically needs to be 3-8bar (0.3-0.8MPa), utilizing a large piston to push a small piston to achieve output of high-pressure gas at the small piston end. As the pressure approaches the pump's maximum output, the pump's frequency slows down and the flow rate decreases.

Section 3: Function of the Supercharger

Increase low-pressure gas to achieve high-pressure gas output.

Customized complete systems, including boosters, filling equipment, leak detection devices, and pressure test systems, are available upon customer request.

IV. Application Scope:

For gas filling, refilling, recycling, compression, and pressure increase applications

② Gas High Pressure Supply for Welding Robots

③ Gas Ratio Meters Matching Gas Pressure Equipment

④ Suitable for high-pressure reactor gas pressurization

⑤ Insufficient workshop gas pressure, undergoing secondary pressurization

⑥ Airtightness Test, High Pressure Resistance Testing

Section 7: Gas Compression Testing Applications

V. Technical Specifications:

The GLT series gas booster pump is a double-acting, two-stage booster pump, primarily used in scenarios where the initial pressure of the boosted gas is very low, such as for compressing air or producing nitrogen gas from nitrogen generators, but requires boosting to a higher pressure.

Model types include:ZTT25/ZTT40/ZTT60/ZTT100
