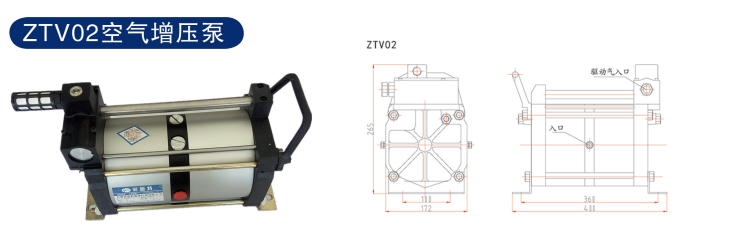

ZTV02Air Pressure Booster

Air boost pumps are categorized by flow rate and pressure levels.ZTV02/ZTV02/ZTV05 offers three types, catering to various customer needs. For specific selection, please consult our customer service.

Air boosters are suitable for environments where the existing air compression system needs to increase pressure, capable of raising the air pressure of the working system to 2-5 times, simply by using the compressed air within the working system as the gas source. This pump is ideal for single-gas-source pressure boosting.

Application Range:

Standard compressors, pneumatic control valves with actuators, coordinate measuring machines, pneumatic marking machines, CNC machine tool clamping devices, pneumatic bundling machines, coding machines, insufficient cylinder clamping force areas

Individual or partial components in the air line require high pressure.

2. When the factory's air line pressure drops and cannot ensure the minimum operating pressure for pneumatic devices, use a booster pump to provide high-pressure gas to maintain the normal operation of the pneumatic devices.

3. No large bore cylinders can be configured, yet the output force must be guaranteed.

4. Gas-controlled remote operation, must be pressurized to compensate for pressure loss

5. Increase the hydraulic pressure of the interlinked cylinder

6. Seeking to reduce the time required to fill the gas cylinder to a certain pressure.

7. Used for Airtightness Testing

Equipment Features:

No power supply required, easy to install.

The driving gas pressure can be adjusted through the pressure-reducing valve at the gas inlet.

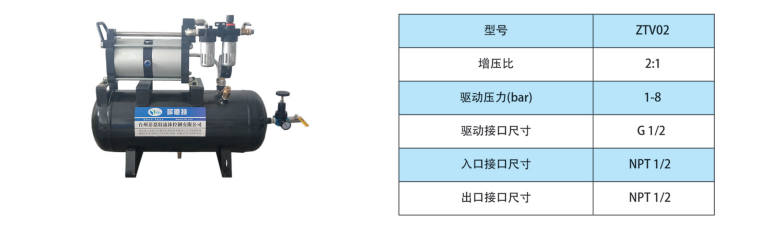

Output pressure can be adjusted through the pressure-reducing valve at the gas reservoir outlet to within the allowed pressure range of the working environment, with a maximum output pressure of 40bar.

Compared to high-pressure compressors, lower noise and lower initial investment costs.
