Product Advantages
1.Transmitter Utilizing imported components from the U.S. and Taiwan, we have extended the lifespan of the pressure sensor, thereby reducing your costs. |  |

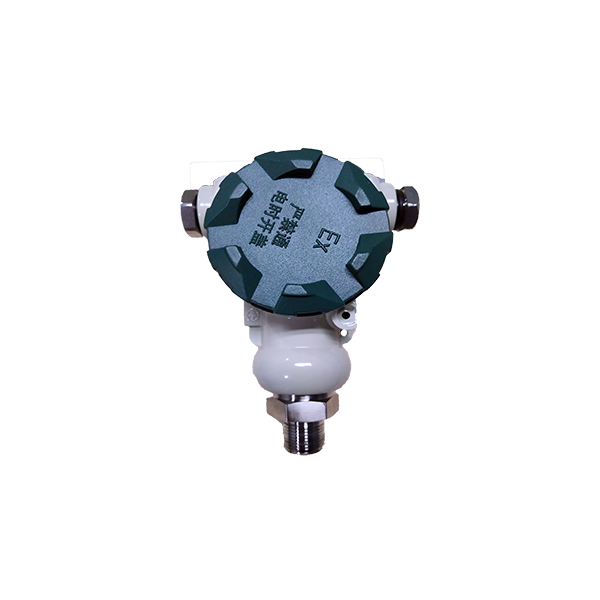

 | 2.Wiring box Waterproof and dustproof, and also explosion-proof, ensuring safe measurements in hazardous environments. |
3. Core material 316 material, corrosion-resistant; wide temperature compensation from -10℃ to 70℃, ensuring the linearity of the pressure sensor, core components for easy operation. |  |
 | 4. Threaded connector 316L material (hydrogen embrittlement-free), CNC lathe machining, ensures dimensional consistency, and provides user-interchangeability. |
Technical Specifications
| Range: -0.1MPa to 60MPa, any range available, with a minimum range of 500Pa. Accuracy Grade: 0.2 grade (within full scale of 1kPa to 60MPa) 0.5 grade (full scale range: 500Pa to 60MPa) Load Capacity: Current Output Type ≤ 500Ω; Voltage Type Output Impedance 250Ω Medium Temperature: -20℃ to 80℃ Ambient Temperature: -20℃ to +80℃ Supply Voltage: DC 24V (12V to 32V) Non-linear: ±0.2% F.S. Latency and repeatability: ± 0.1% F.S. | Long-term Stability: ± 0.1% F.S/y Thermal Zero Drift: ±0.02% F.S/℃ Response Time: ≤ 50ms High working pressure: 2 times scale Electrical Connections: Terminal Connectors Process Connection: M20x1.5 External Thread/DN25 Flange Connection / Others External Part Materials: Standard Stainless Steel / 316 Stainless Steel Shell Material: Cast Aluminum Housing Protection Rating: IP 65 (EXdⅡCT6Gb) |
