Product Introduction
| Submersible static pressure level transmitter is based on the principle that the measured liquid's static pressure is proportional to its height. It utilizes the piezoresistive effect of an isolated diffused silicon sensitive element to convert static pressure into an electrical signal, which is then temperature-compensated and linearly corrected to produce a standard electrical signal (typically 4-20mA). The KZY-K series submersible static pressure level transmitter is suitable for liquid level measurement of various media in systems and industries such as petrochemicals, metallurgy, power, pharmaceuticals, water supply and drainage, and environmental protection. Its compact structure, simple adjustment, and flexible installation methods provide convenience for easy use by customers. |
Technical Specifications
| Range: 0-0.5m to 200m Load characteristics: Current output type ≤500Ω (DC24V) Voltage Output Type: Impedance ≤ 250Ω Insulation Resistance: >100MΩ Medium Temperature: -20℃ to 70℃ Ambient Temperature: -10℃ to 60℃ Supply Voltage: DC 24V (12V to 32V) Non-linear: ±0.2% F.S Latency and Repeatability: ±0.1% F.S. | Long-term stability: ±0.1% F.S/y Thermal Zero Drift: ±0.03%FS/℃ Response Time: ≤100ms Overload: 2 times the scale Electrical Connections: Cable Connections Measurement Accuracy (23°C, 1 atm): Grade A 0.25% FS Grade B, 0.5% FS External Parts Material: Standard Stainless Steel / 316 Stainless Steel Protection Level: IP 68 |
Product Selection

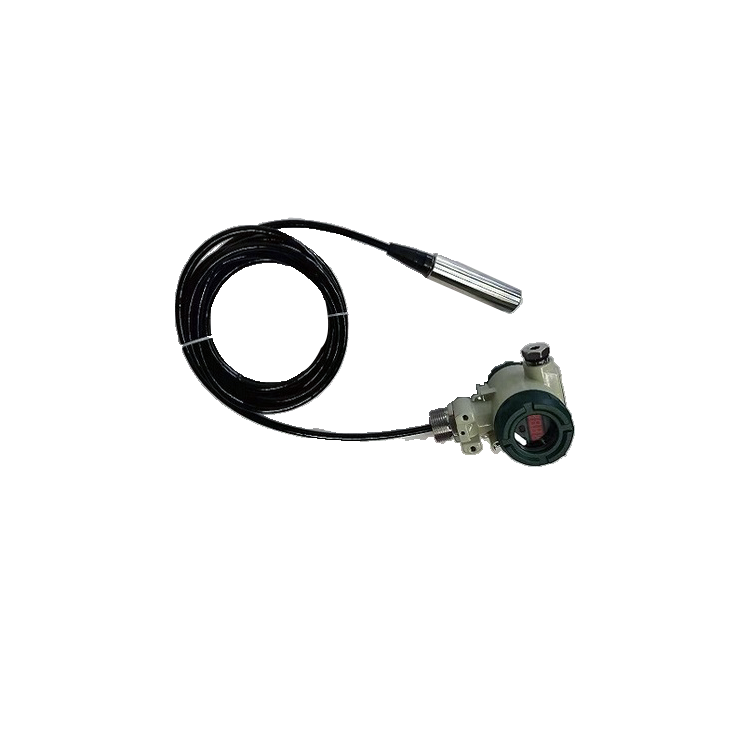

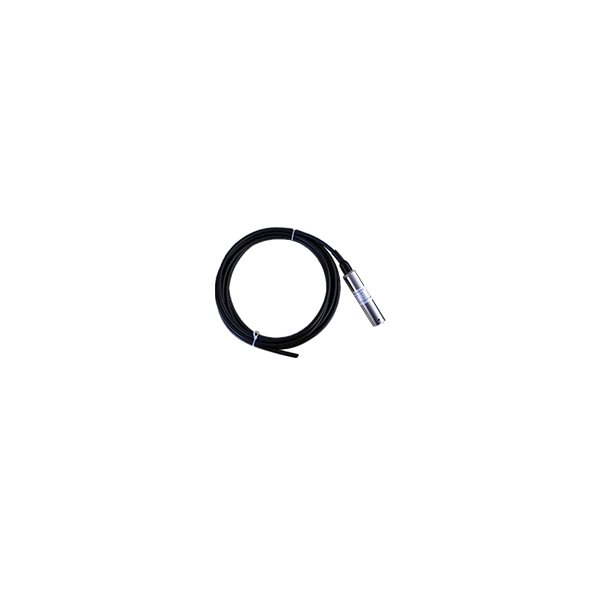

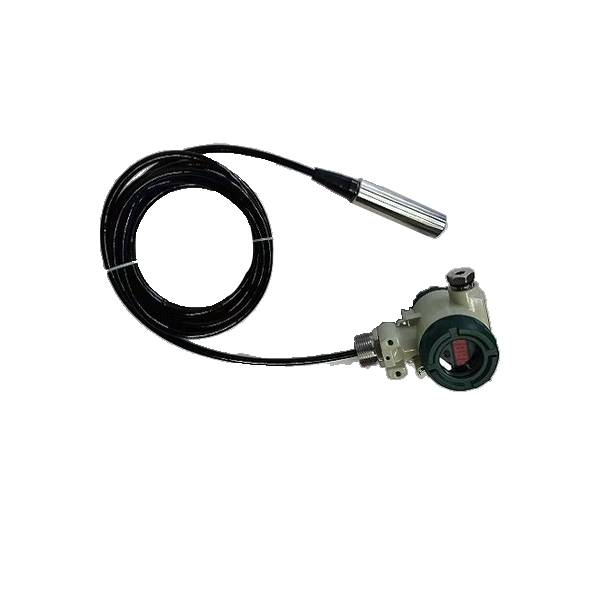

| KZY-K L Integrated Cable Connection Y1 Disassembled Rigid Stainless Steel Pipe Connection Y2 Disassembled Soft Stainless Steel Pipe Connection Y5 Disassembled Cable Connection A 4-20mA V 0-5V Z LCD Display (Limited to Disassembled 4-20mA Type) E LED Display (Limited to Disassembled 4-20mA Type) No Fixed Method G Thread M20×1.5 (Limited to Disassembled) F Flange Mounting (Limited to Disassembled) |
