Product Description

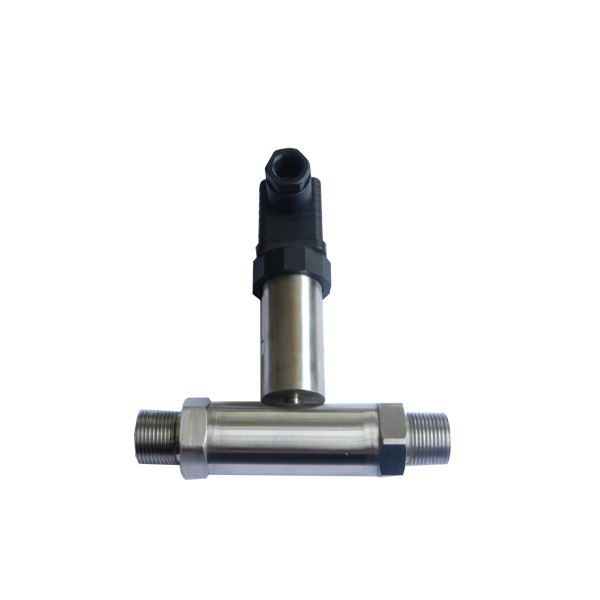

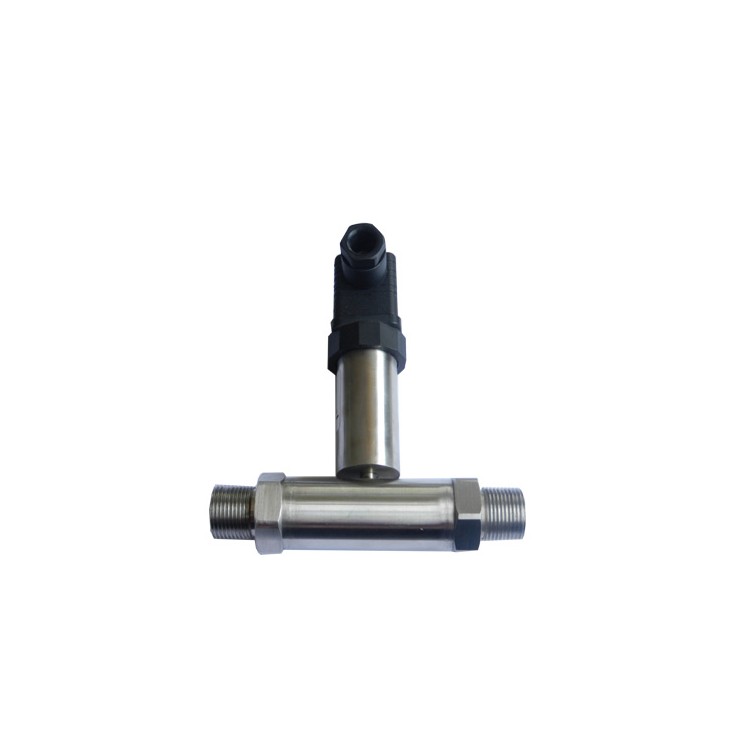

The KZY-K High-Temperature Liquid Differential Pressure Transmitter is assembled with OEM silicon strain gauge differential pressure filled oil core. The housing is made of full stainless steel, offering excellent corrosion resistance. The two pressure ports are connected with M20×1.5 threads, allowing direct installation on the measuring pipeline or connected via a pressure line. It is applied in the measurement and control of differential pressure, liquid level, and flow in industries such as aviation, aerospace, automotive, and medical equipment.
|
Technical Specifications
Pressure Range: 0 ~ 10 KPa ~ 35 MPa | Overload: 150% FS Ultimate Overload: 200% FS Response Time: 5 mS (up to 90% FS) Load Resistance: Current Output Type: 800Ω; Voltage Output Type: Greater than 5KΩ Insulation Resistance: Greater than 2000MΩ (100VDC) Sealing Rating: IP65 Vibration Influence: Output variation is less than 0.1% FS within the mechanical vibration frequency range of 20Hz to 1000Hz. Electrical Interface (Signal Interface): Wires, Herms Connectors, Avionics Connectors, PG7 Flanges Mechanical Connections (Threaded Interfaces): M12×1, M20×1.5, G1/2 |
