Product Description

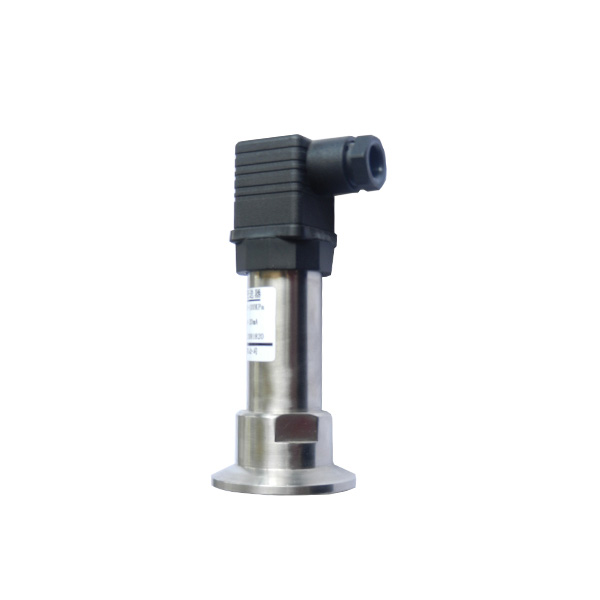

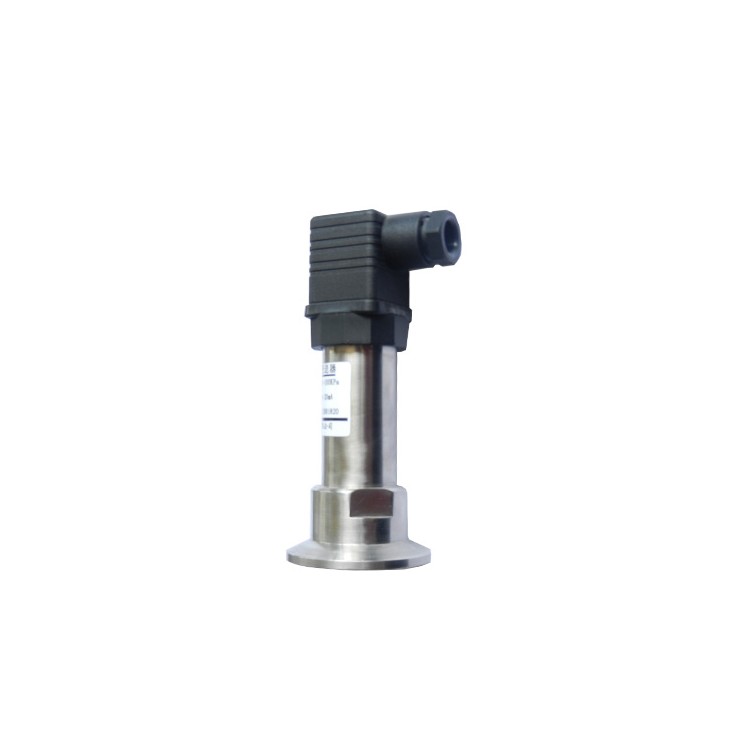

The KZY-K-W quick-install flat pressure sensor utilizes high-precision and stable sensors, paired with ASIS high-performance amplification circuitry. It has been subjected to thousands of fatigue shocks, high and low temperature cycles, and precise digital temperature compensation processes. It is then meticulously refined through stainless steel full-sealed welding (laser welding). High-quality sensors, rigorous calibration processes, and comprehensive assembly techniques guarantee the superior quality of this product. Particularly suitable for measuring the pressure of viscous mediums (asphalt, sludge, coal slurry, paint, etc.), it thoroughly addresses all customer needs. |
Technical Specifications
Flow Range: 0~0.01~6 MPa, Optional | Overload: 150% FS Ultimate Overload: 200% FS Response Time: 5 mS (up to 90% FS) Vibration Influence: Total influence less than ±0.1%FS for frequencies of 10~100KHz and acceleration of 10g. Test Medium: Various liquids and gases compatible with 316L stainless steel Shell Material: 304 or 316 Stainless Steel Long-term Stability: ≤±0.2%FS/year Pressure Connection: 50.5mm Clamp Link Electrical Connections: M12 4-core connector, Hirschmann 3009 connector |
