Product Advantages
1.Transmitter Utilizing imported components from the U.S. and Taiwan enhances the lifespan of our pressure sensors, thereby reducing your costs. |  |

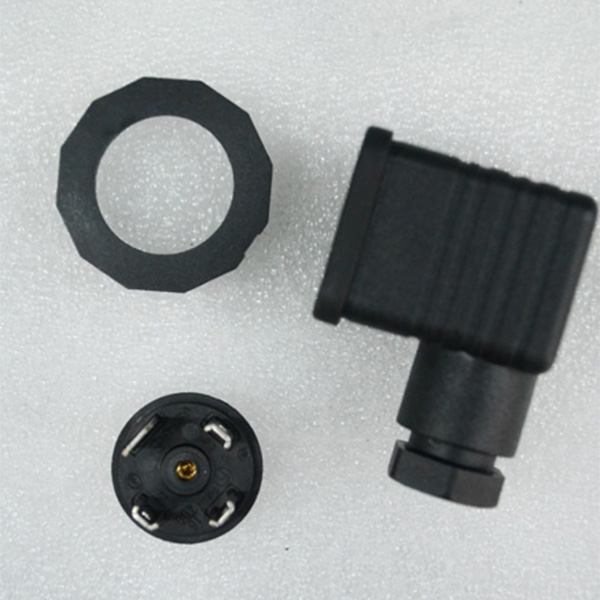

 | 2.Hosman Connector German进口joints, high tensile strength, wear-resistant, long service life, reduced replacement rate. |
3. Core material 316 material with corrosion resistance; wide temperature compensation from -10℃ to 70℃ ensures the linearity of the pressure sensor, high-quality core components for easy operation. |  |
 | 4. Crafty Pressure Transmitter Label Utilizing laser marking technology, the product's essential information is retained for a long time, conveniently facilitating equipment modification and repair, allowing for greater peace of mind. |
Technical Specifications
| Range: -0.1MPa to 60MPa, any range available; the minimum range is 5kPa. Accurately grade 0.2 class (full range within 1kPa to 60MPa) 0.5 grade (span from 500Pa to 60MPa) Load Capacity: Current Output Type ≤ 500Ω; Voltage Type Output Impedance 250Ω Medium Temperature: -20℃ to 85℃ Ambient Temperature: -20℃ to +85℃ Supply Voltage: DC 24V (12V to 32V) Non-linear: ± 0.2% F.S Latency and Repeatability: ±0.1% F.S. | Long-term Stability: ± 0.1% F.S/year Thermal Zero Drift: ±0.02% F.S/°C Response Time: ≤ 50ms Work Pressure: 2x Range Electrical Connections: Standard HOSMAN connector or Large HOSMAN connector Process Connection: M20×1.5 External Thread or Equivalent Exterior Part Material: 316 Stainless Steel Housing Material: 316 Stainless Steel Protection Level: IP 54 |
Product Selection
| KZY-K Specification Code | Description | O- | Non-explosion-proof | H | Standard Hosmann Connector | A | 4-20mA (Two-wire System) | V1 | 0-5V | V2 | 0-10V | G- | Gauge Pressure | E | LED Display (for 4-20mA Output Products) | G Thread M20×1.5 (default, not required to select) |
Product Features
| 1. Laser tuning resistance temperature compensation with wide temperature range usage. 2. High overload and impact resistance, strong anti-interference capability. 3. Excellent corrosion resistance, capable of measuring various media. 4. Overvoltage and overcurrent protection circuit Surge voltage protection, reverse polarity protection. 6. Imported diffused silicon or ceramic chips, suitable for measuring in various pressure conditions. 7. Wide applicability and high stability. 8. Compact and meticulously crafted, easy to install. |
