KZY-FL

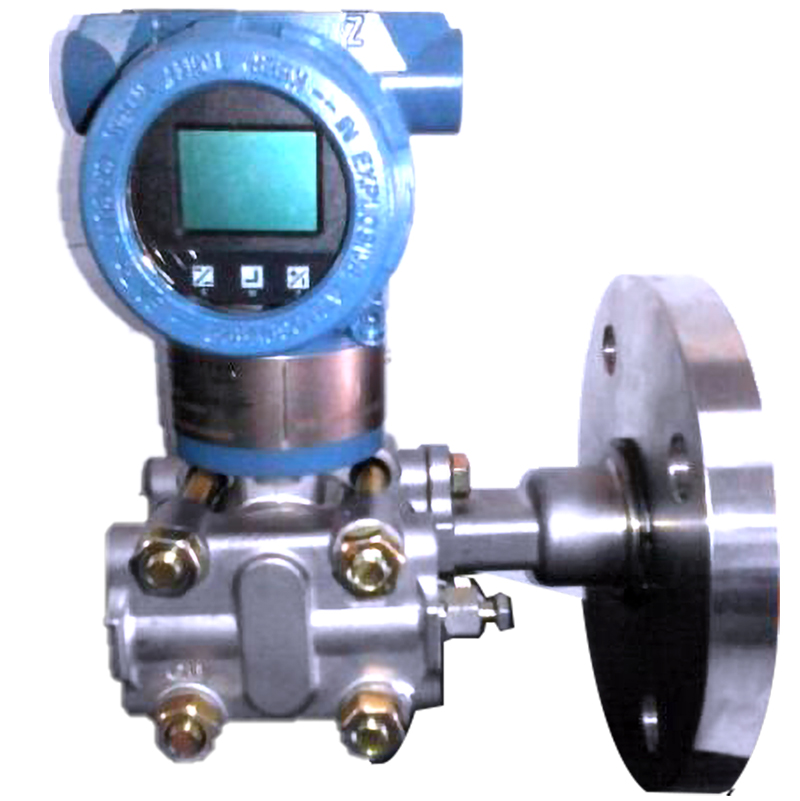

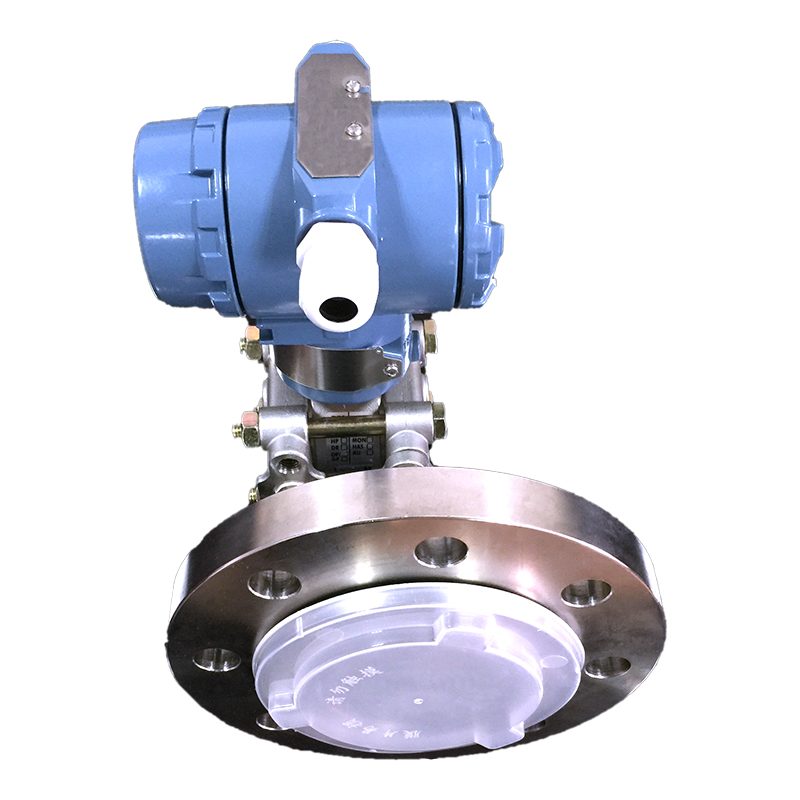

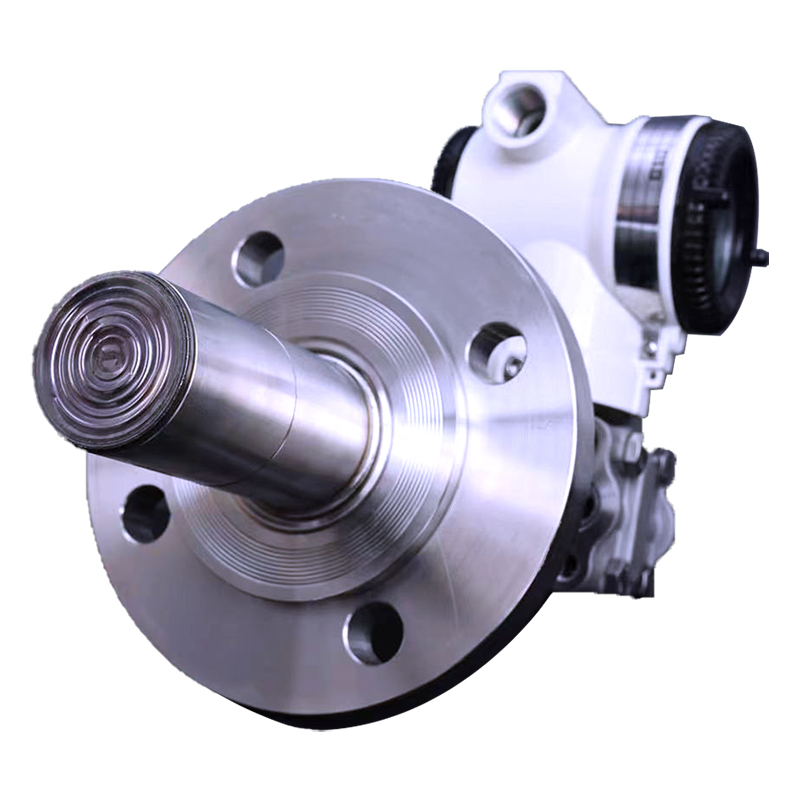

Smart Single Flange Differential Pressure Transmitter

Code

Certification

A

Suitable for non-explosive environments

1

ExiaⅡCT6

2

ExiaⅡCT4

3

ExdⅡBT6

Code

Code

A

4…20mA

H

4…20mA，HART

P

PROFIBUS-PA

F

FF

Code

Display

A

No display

L

LCD

Code

Shell, cable entry, protection class

A

Aluminum14，M20×1.5，IP66/67

B

Aluminum14，G1/2，IP66/67

C

Aluminum14，1/2NPT，IP66/67

Code

Sensor Quantity Range Gauge Pressure

7D

100mbar，PN160 (10kPa/1mH₂O)

7F

500bar，PN160 (50kPa/5mH₂O)

7H

3bar，PN160 (300kPa/30mH₂O)

7L

16bar，PN160 (1.6MPa/160mH₂O)

7M

40bar，PN160 (4MPa/400mH₂O)

Code

Calibration, Unit

1

Standardized measuring rangembar/bar

2

Standardized Measuring RangekPa/MPa

3

Standardized measurement rangemmH₂O/mH₂O

4

Standardized measurement rangepsi
