Product Introduction
The Digital Negative Pressure Gauge is a high-precision, multi-functional standard instrument developed by our company for on-site pressure gauge calibration. It features pressure measurement capabilities and, when used in conjunction with a handheld pressure pump, allows for the field calibration of pressure (differential pressure) transmitters, pressure switches, and general (precision) pressure gauges.
Product Features
◆ Compact size, suitable for confined spaces;
Micro-power consumption components selected, long outdoor working time.
Through a 4-digit digital display:Advanced software processing technology continuously corrects for non-linearity and temperature drift.
For verification:General Pressure Gauges; Calibration of Precision Pressure Gauges; Calibration of Blood Pressure Meters; Calibration of Other Pressure Instruments; Precision Pressure Measurement; Analysis of Precision Pressure Changes; Precision Pressure Control.

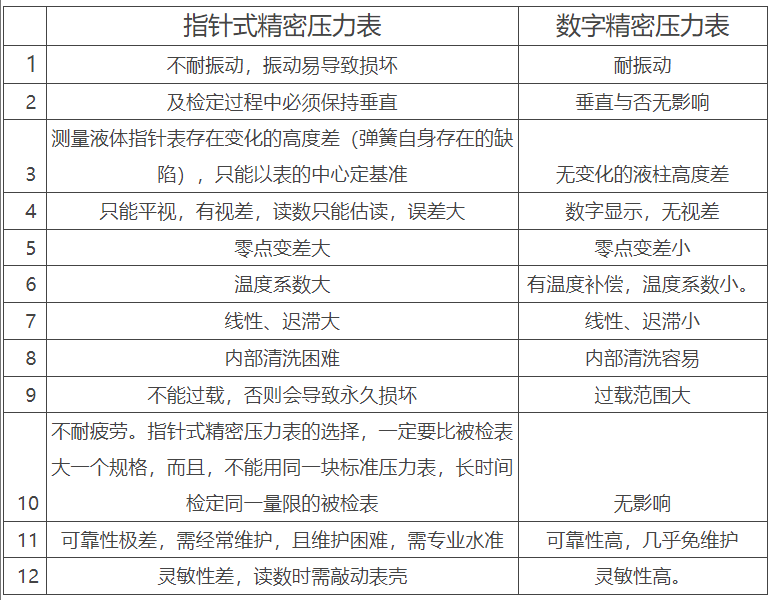

Digital Pressure Gauge vs. Analog Pressure Gauge
Technical Specifications
Medium of Use: -100kPa to 16kPa to 100MPa range, non-corrosive gases or liquids compatible with 316
◆ Protection Rating: IP65
Overload Pressure: 120%
Accuracy Grade: 0.2, 0.5 levels.
Pressure Range: (-100 to 0) kPa, (0 to 2) kPa, (0 to 5) kPa, (0 to 10) kPa, (0 to 20) kPa, (0 to 25) kPa, (0 to 40) kPa, (0 to 60) kPa, (0 to 100) kPa, (0 to 160) kPa, (0 to 250) kPa, (0 to 400) kPa, (0 to 600) kPa, (0 to 1) MPa, (0 to 1.6) MPa, (0 to 2) MPa, (0 to 2.5) MPa, (0 to 4) MPa, (0 to 6) MPa, (0 to 10) MPa, (0 to 16) MPa, (0 to 20) MPa, (0 to 25) MPa, (0 to 30) MPa, (0 to 40) MPa, (0 to 60) MPa.
Operating Environment
◆ Temperature: (0～50)°C (working temperature range for guaranteed accuracy)
Relative Humidity: <95%
◆ Pressure: (86～106) kPa
Power Supply: Built-in Lithium Battery
Dimensions and weight
Outer dimensions: φ80mm x 34mm
Weight: 0.5 kg
Accuracy:0.5%F·S，0.1%F·S，0.2%F·S
Pressure Range:
（-100～0）kPa，（0～40）kPa，（0～600）kPa，（0～6）MPa，（0～40）MPa ，（0～2）kPa，（0～60）kPa，（0～1）MPa、，（0～10）MPa，（0～60）MPa，（0～5）kPa，（0～100）kPa，（0～1.6）MPa，（0～16）MPa，（0～80）MPa ，（0～10）kPa，（0～160）kPa，（0～2）MPa，（0～20）MPa，（0～100）MPa ，（0～20）kPa，（0～250）kPa，（0～2.5）MPa，（0～25）MPa，（0～160）MPa ，
（0～25）kPa，（0～400）kPa，（0～4）MPa，（0～30）MPa，
Note: Please specify differential pressure or absolute pressure when ordering.；
We offer pressure gauges with ranges such as (-0.1～0.1) MPa, (-0.1～0.16) MPa, (-0.1～0.25) MPa, etc.
